Description
The 25-amp charger maintains 12-volt batteries through bulk, absorption and float operation. Its three isolated outputs support multiple battery banks.
Features
- Three-stage bulk, absorption and float charging supports battery recovery and conditioning.
- Selector switch adapts voltage for gel-cell, flooded lead-acid or AGM batteries.
- Optional temperature sensor adjusts output voltage for battery ambient temperature.
- Stainless steel case; series offers natural or durable white powder-coated finish.
- Polyurethane-coated internal circuitry resists corrosion; optional drip shield available.
- Isolated output banks and an ammeter indicating total output current.
- Current limiting protects against overload.
- Charger status is displayed by LED, ammeter or optional remote panel.
- Can supply loads without a battery connected.
- Meets numerous safety and EMC requirements.
- Two year parts and labor warranty.
- Smart circuitry provides three stage charging--bulk, absorption, float.
- Multiple isolated output banks; ammeter indicates total output current.
- Optional sensor adjusts output voltage based on battery temperature.
- Current limiting-prevents damage from overloading.
- Charger status clearly displayed with L.E.D., ammeter, or optional remote panel.
- Use as a power supply; can power loads without a battery in line.
- Optional drip shield and marinized internal circuitry.
- Numerous Safety and EMC Compliances
- Two year parts and labor warranty
Specifications
| Number Of Banks | 3 |
|---|---|
| Application | 12 Volt Batteries |
| Output Voltage | 12 Volt |
| Input Voltage | 115 To 230 Volt |
| Ampere Rating | 25 Amp Charging |
| Length (IN) | 12-1/2 Inch |
| Width (IN) | 7.7 Inch |
| Height (IN) | 4.3 Inch |
Additional product details

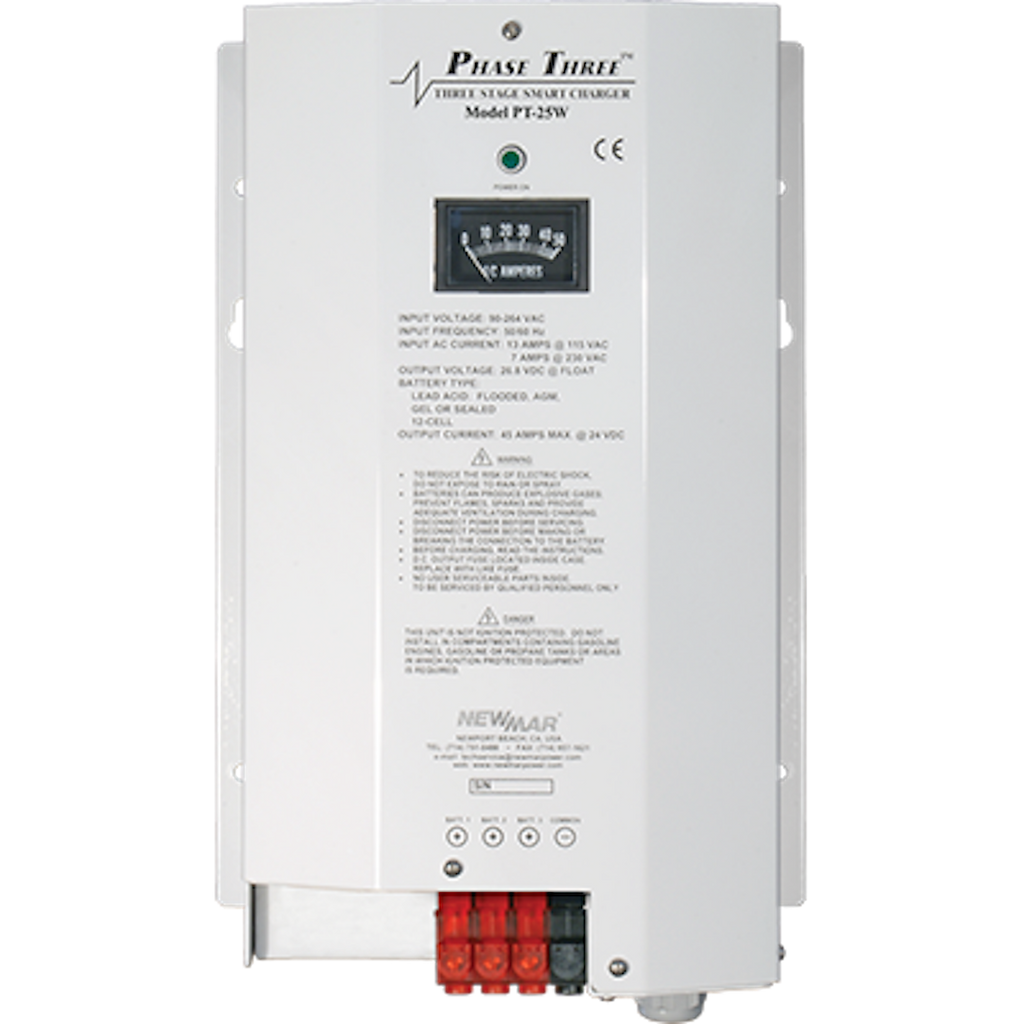

Phase Three Smart charger PT-25W from NewMar is a three-bank battery charger rated at 12 volts and 25 amps.
The Phase Three charger range serves small recreational craft, large live-aboards, workboats and other commercial vessels.
