Description

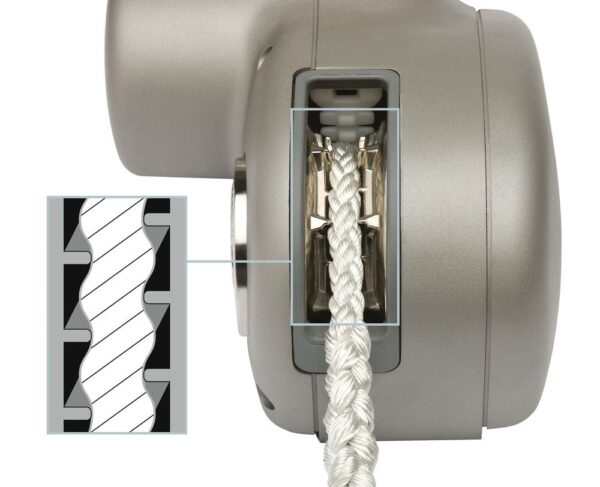

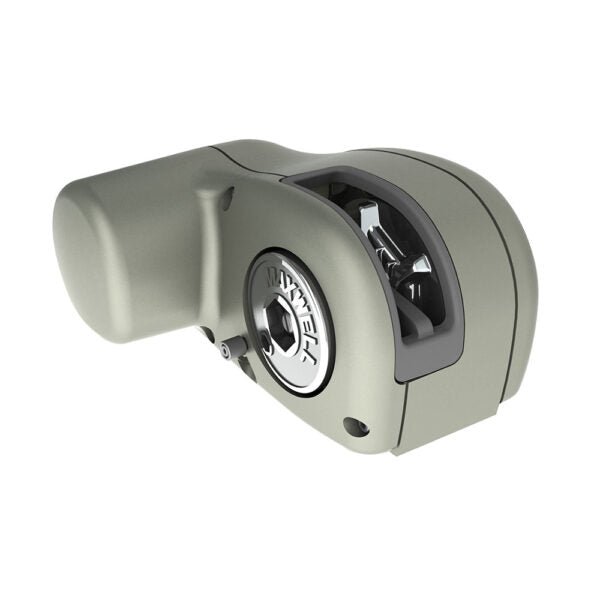

For small-boat anchoring systems that require a controlled gravity drop, the Maxwell HRCFF612V is a complete HRCFF6 windlass rather than a standalone control switch or sensor. It combines horizontal rope/chain handling with an electrically engaged free-fall clutch.

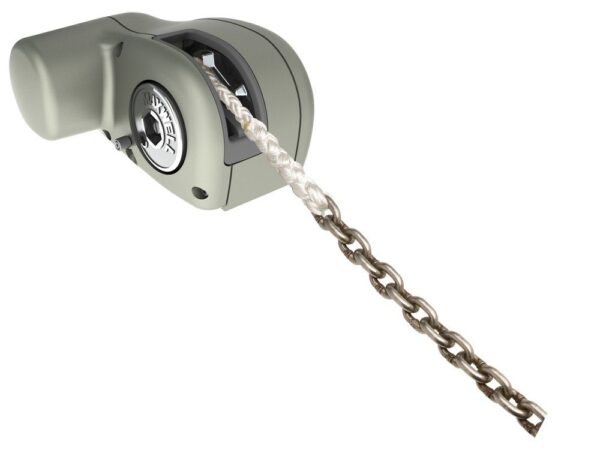

This 12-volt model uses 6 mm short-link chain with 12 mm rope. Its 600-watt motor delivers up to 410 kg of rated pulling force, while the 700 kg static-hold figure is separate from the boat’s permissible working load.
Compatibility and application
| Boat system | Suitable installations in the HRCFF range of approximately 5 to 11 m vessels, subject to rode, deck and electrical sizing |
|---|
Specifications
| Part number | HRCFF612V |
|---|---|
| Windlass model | HRCFF6 |
| Electrical | 12V DC, 600W |
| Short-link chain | 6 mm metric |
| Rope size | 12 mm |
| Maximum pull | 410 kg / 900 lb |
| Static hold | 700 kg / 1540 lb |
| Nominal retrieval speed | 33 m/min at 30 kg working load |
Ordering and installation notes
Chain must be 6 mm metric short-link and rope must match the specified dimensions. Determine anchor rode, deck cut-out, wiring, protection and control requirements for the installation; anchor, chain and rope are not asserted to be included.
