Description

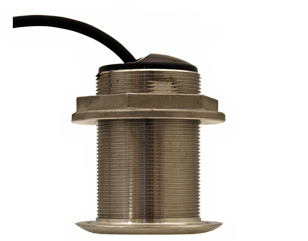

Compensate for 16- to 24-degree hull deadrise with an internally angled sensing element. The flush thru-hull housing must point its top arrow toward the keel on either side of the vessel.
If a thru-hull flush-style transducer is called for, the Tilted Element SS60-SLTD/20 will accommodate a deadrise angle between 16 Degree and 24 Degree. This transducer compensates for deadrise by angling the element inside the housing. The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.Specifications
| Number Of Pins | 10 Pin |
|---|---|
| Depth | 1200 Feet |
| Supported Angle | 20 Degree Tilted Element/ 45/ 12 Degree Beamwidth |
| Cable Length | 32.8 Feet |
| Frequency Range | 50/ 200 kHz |
| Power Rating | 600 Watt |
| Mounting Location | Thru-Hull Mount |
