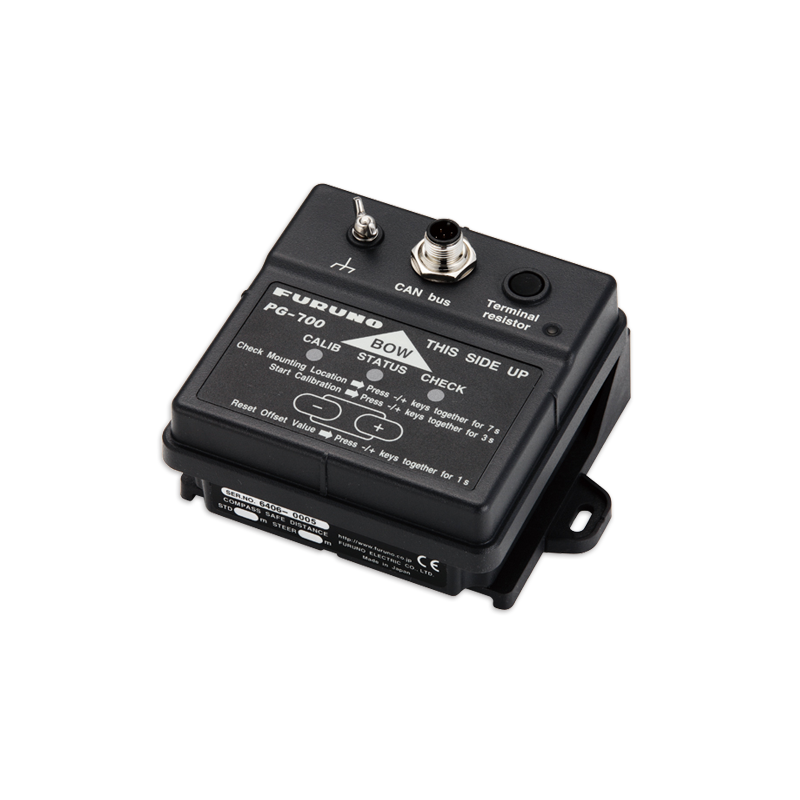

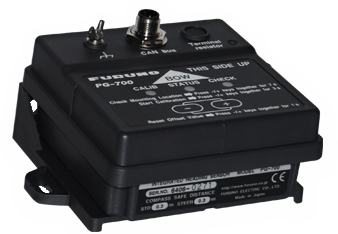

Furuno Pg700 Fluxgate Marine Heading Sensor

A solid-state rate gyro stabilizes the fluxgate compass measurement, while automatic correction addresses magnetic-field distortion. The sensor supplies heading data to CAN bus equipment from a compact case.

Furuno is a fluxgate magnetic sensor with the enhanced stability of a solid-state rate gyroscope. Automatic magnetic field distortion correction provides highly accurate and stable readouts of your ship's heading. The sensor detects terrestrial magnetism and produces compass data to CAN bus devices. Typical applications include true radar echo trail and true motion, auto pilots, video plotters, scanning sonars and more. These sophisticated components are contained within a rugged, compact case. The supplied L-Bracket allows for flexible installation. Unique design elements make this virtually maintenance-free and easy to install.

Specifications

Precision	+/- 1 Degree Heading Accuracy/ 0.1 Degree Heading Resolution/ 45 Degree Per Second Rate-Of Turn
Operating Voltage	12 Volt
Operating Temperature	5 To 131 Degree Fahrenheit
Mounting Location	Floor/ Bulkhead
Type	Fluxgate Magnetic Sensor
Compatibility	Furuno CAN Bus Devices
Waterproof Rating	IP55 Rating Waterproof
Output Format	NMEA 2000
Function	Provides Heading/ Rate of Turn
Includes	With Heading Sensor/ 6 Meter Cable
