Description

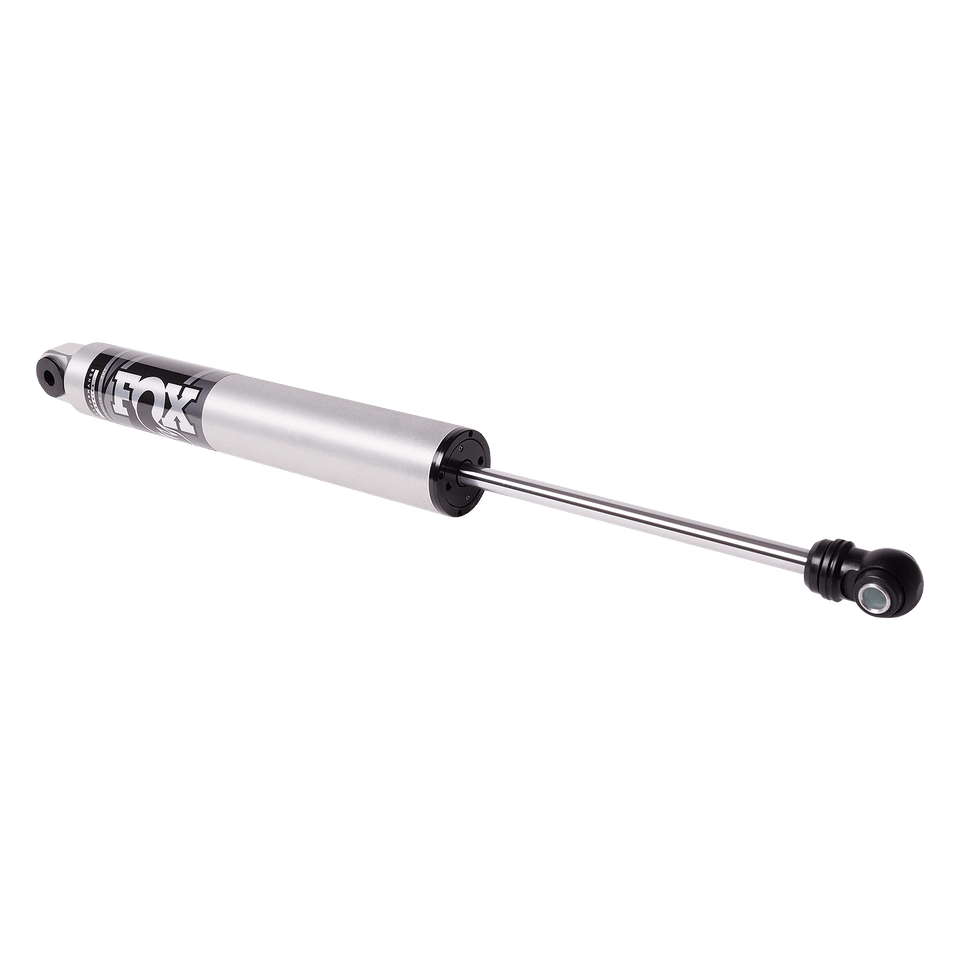

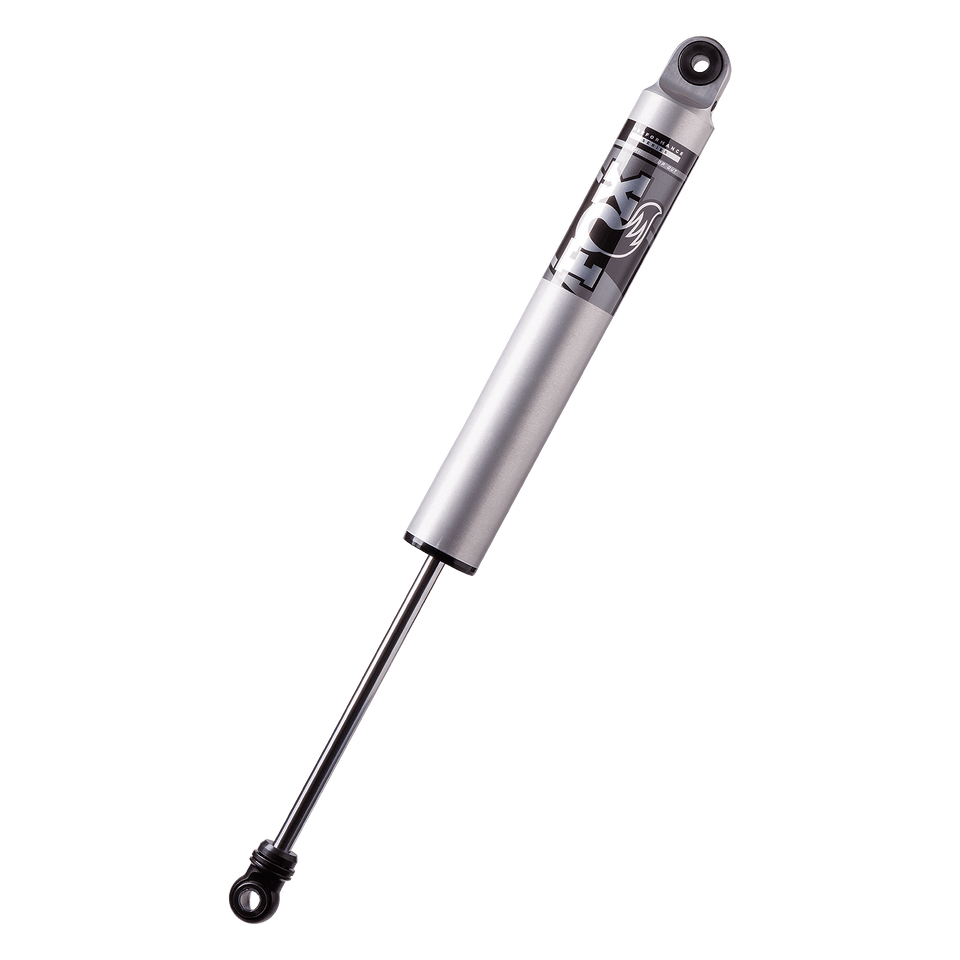

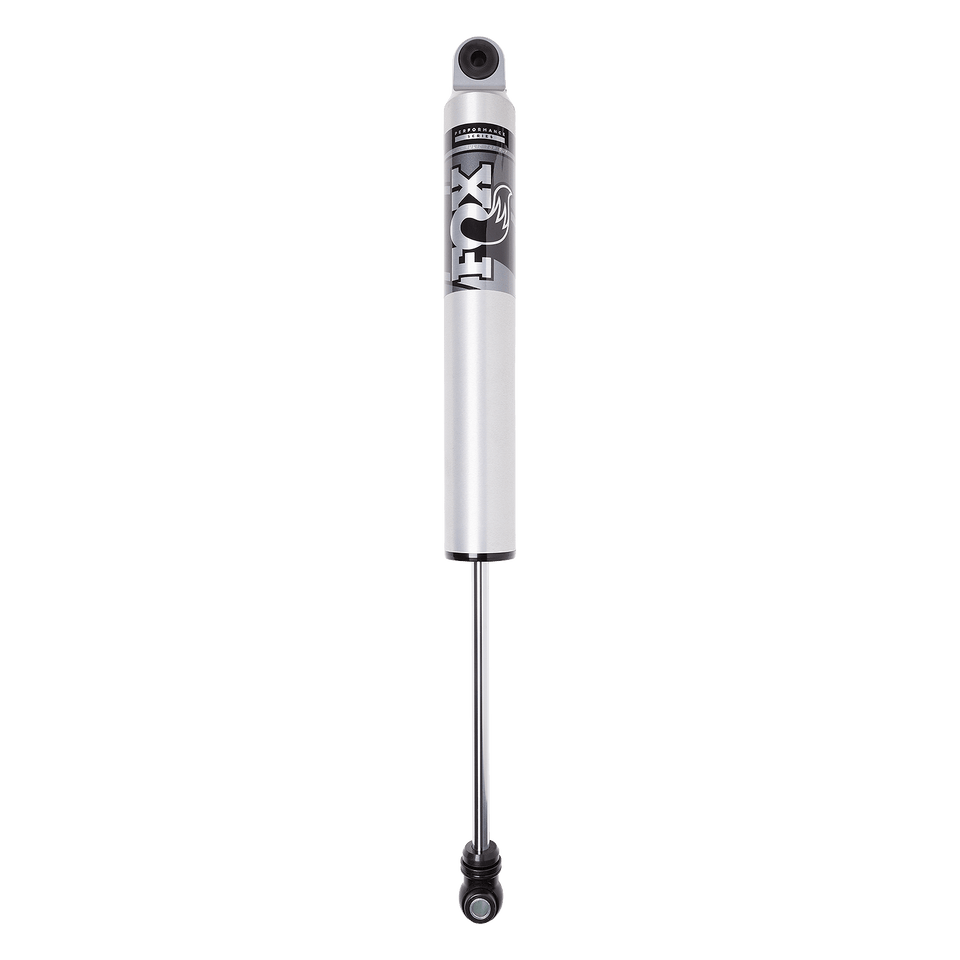

The 32.62-inch extended and 20.55-inch compressed lengths accompany eyelet mounting at both ends. FOX 987-24-061 is a silver single shock with a 5/8-inch steel rod.
Technical Features
| Series | Performance Series 2.5 HTO; bolt-on design |
|---|---|
| Damping hardware | Vehicle-specific valving and larger pistons |
| Hydraulic Top Out | Position-sensitive rebound control sends oil through a secondary shim stack to slow shaft speed near extension limits |
| Operating benefit | Reduces harsh top-out on and off pavement; especially useful with heavier aggressive tires or lifts above OEM height |
| Body | 2.5-inch aluminum with Type II anodizing for heat dissipation and corrosion resistance |
| Internal floating piston | Separates oil from high-pressure nitrogen |
Specifications
| Estimated Install Time (Hours) | 0.5 |
|---|---|
| Compressed Length (IN) | 20.55 Inch |
| Extended Length (IN) | 32.62 Inch |
| Rod Diameter (IN) | 5/8 Inch |
| Body Material | Aluminum |
| Lower Mounting Style | Eyelet |
| Upper Mounting Style | Eyelet |
| Type | Hydraulic/ Nitrogen Gas Charged |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Includes Boot | No |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Ride Height Adjustable | No |
| With Coil Spring | No |
| With Reservoir | No |
| Valving Type | Non Adjustable Valving |
| Body Color | Silver |
| Quantity | Single |
| Rod Material | Steel |
| Universality | Vehicle Specific |
