Description

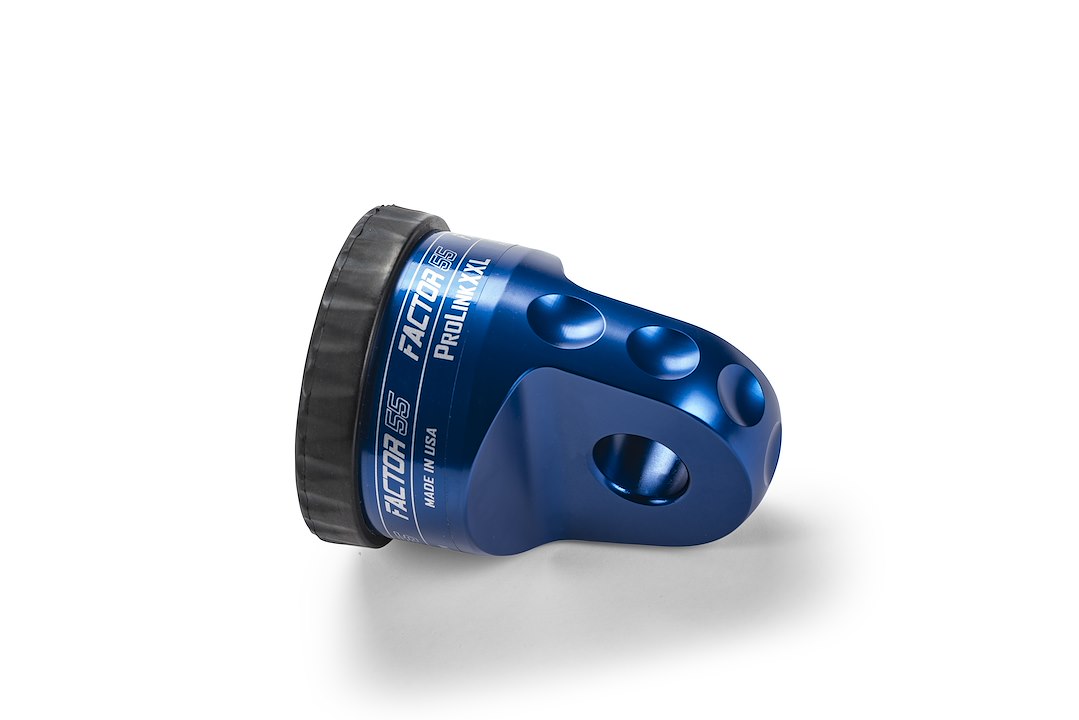

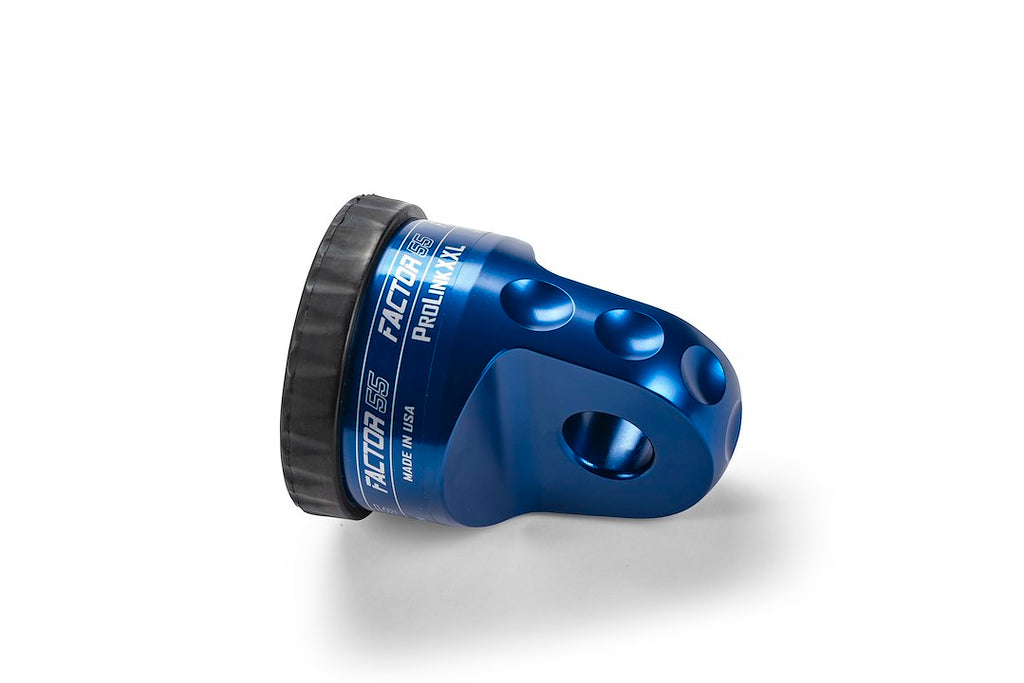

The blue anodized mount connects common 3/4-inch or 7/8-inch shackles to the winch line. ProLink XXL 00210-02 uses 6000-series billet aluminum and a titanium double-shear pin.
Technical Features
| Purpose | Replaces conventional winch hook with screw-pin shackle/D-ring; originally developed for military 24,000-pound winch applications |
|---|---|
| Materials | US-engineered and US-made 6000-series billet aluminum;6Al-4V titanium double-shear pin |
| Pin | 0.750 inch/3/4 inch diameter |
| Base | Barbed high-durometer EPDM rubber guard |
| Ratings | 24,000-pound working load limit; ultimate failure above 63,000 pounds |
| Line fit | Steel cable and synthetic rope up to 1/2 inch |
| Shackles | Common 3/4 inch and larger 7/8 inch shackles |
| Family | ProLink XXL described as largest/strongest ProLink in source production range; five anodized/powder-coated colors: black, silver, gray, red, blue |
| Design | In-house 3D CAD and Cosmos finite element optimization |
| Testing | Each design destructively tested with measurement and recording equipment |
Specifications
| Shackle Type | 3/4 And 7/8 Inch Shackles/ D-Rings |
|---|---|
| Cable Type | 1/2 Inch Steel Cable/ Synthetic Winch Rope |
| Load Capacity (LB) | 24000 Pounds |
| Shear Pin Size (IN) | 3/4 Inch |
| Finish | Anodized |
| Color | Blue |
| Material | Aluminum |
| With Guard | Yes |
Manufacturer Warranty
Limited 1 Year Warranty
