Description

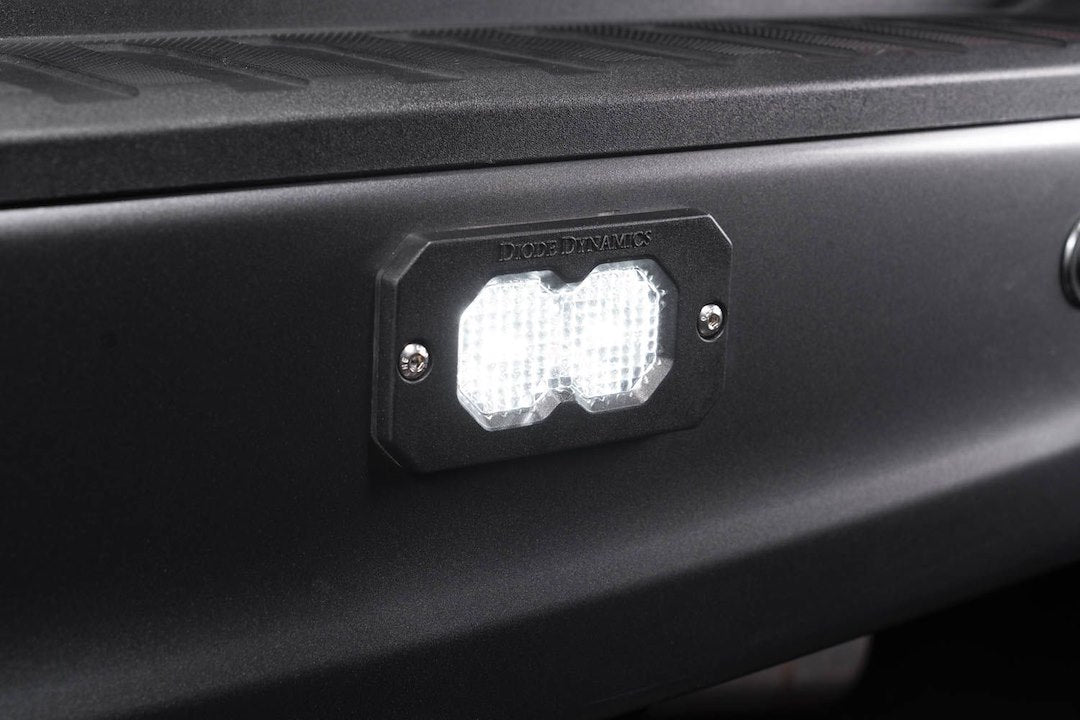

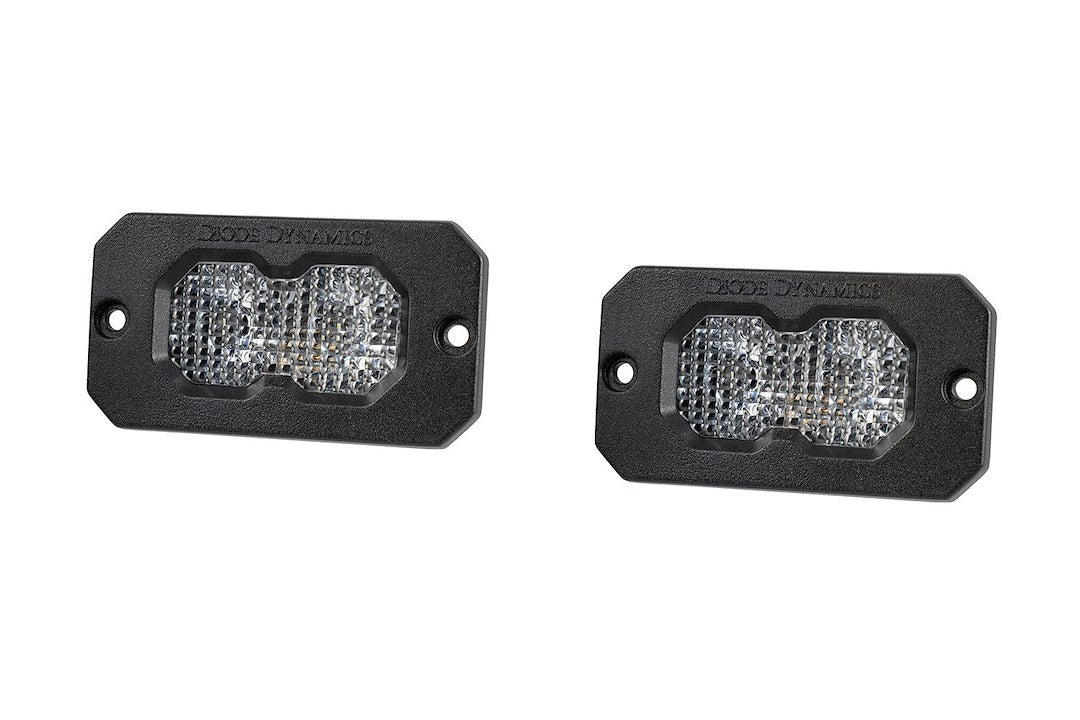

A flush mounting arrangement gives this C2 2.0 pair a different installation profile while retaining white flood illumination. DD8124P is rated at 23 watts and 3,140 raw lumens, with amber accent backlighting inside its patented TIR optics.
The 2-inch Stage Series platform uses an LED-bonded copper-core circuit board and redesigned powder-coated aluminum housings for heat transfer. Re-engineered optics concentrate illumination and reduce glare.

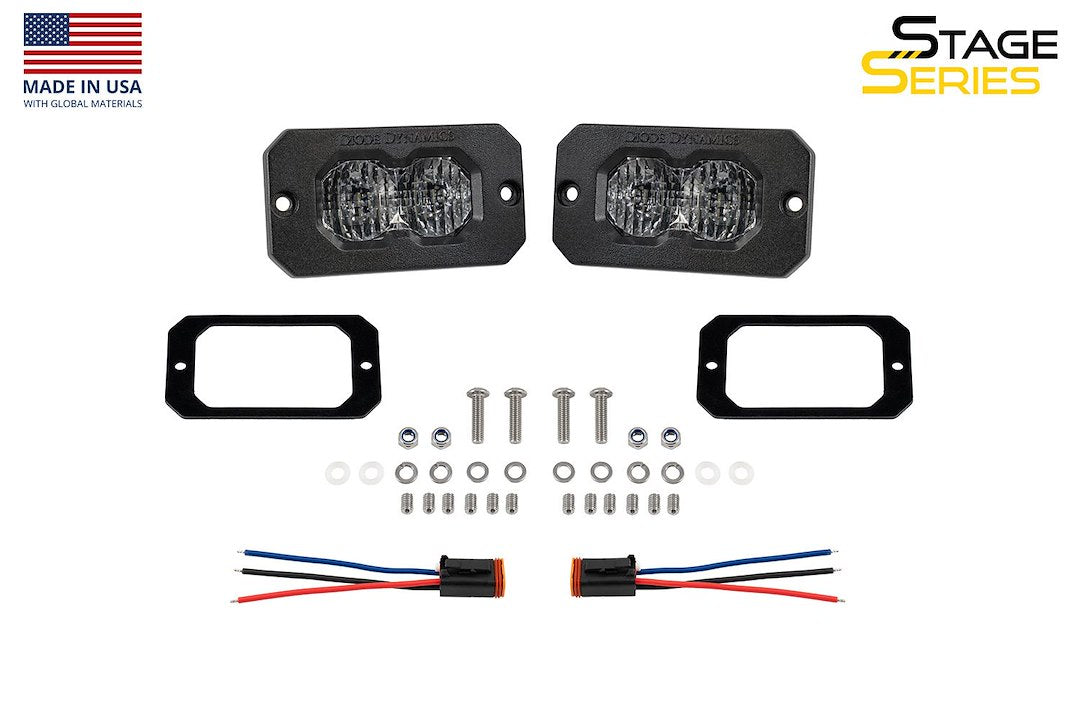

These flush assemblies measure 2-1/2 inches high by 4-1/2 inches wide and 2.4 inches deep. Two mounting brackets, two Deutsch-style pigtails and hardware are included.
Diode Dynamics describes the C2 2.0 platform’s revised optics as providing up to 120% more intensity than C2 1.0. This is a platform-level comparison rather than a separate output rating for this configuration.
Compatibility
Universal fit is subject to the following selection and installation requirements. Customization may be required.
- Voltage Rating: 9 To 30 Volt
- Wattage: 23 Watt
- Ampere Rating At 12 Volts: 1.8 Amp
- Height/ Width: 2-1/2 Inch x 4-1/2 Inch
- Depth: 2.4 Inch
- Mounting Style: Flush Mount
Specifications
| Estimated Install Time (Hours) | 1.5 |
| Ampere Rating At 12 Volts | 1.8 Amp |
| Height/ Width | 2-1/2 Inch x 4-1/2 Inch |
| Depth | 2.4 Inch |
| Wattage | 23 Watt |
| Lumens | 3140 Raw Lumens |
| Voltage Rating | 9 To 30 Volt |
| Housing Material | Aluminum |
| Housing Color | Black |

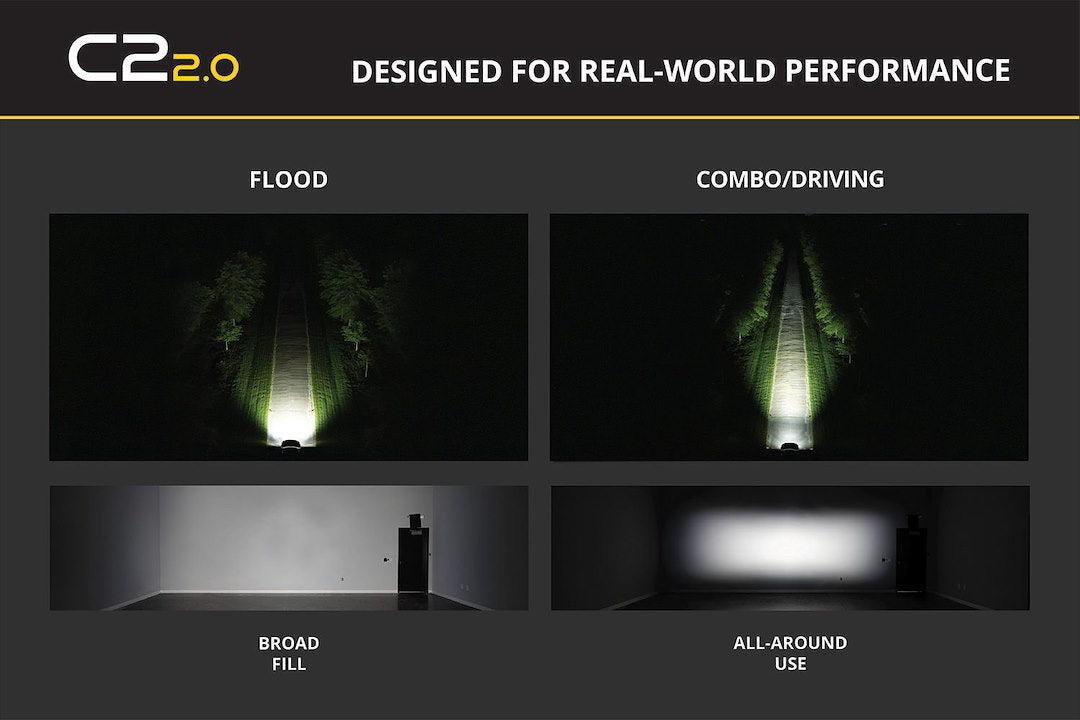

| Beam Type | Flood Beam |
| Mounting Style | Flush Mount |
| Bulb Type | LED |
| Diameter | Not Applicable |
| Bulb Specifications | Osram Ostar Projection Compact LED Bulb |
| Lens Material | Polycarbonate |
| Shape | Rectangular |
| Universality | Semi-Universal |
| Quantity | Set Of 2 |
| Light Color | White |
| Includes | With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware |
