Description

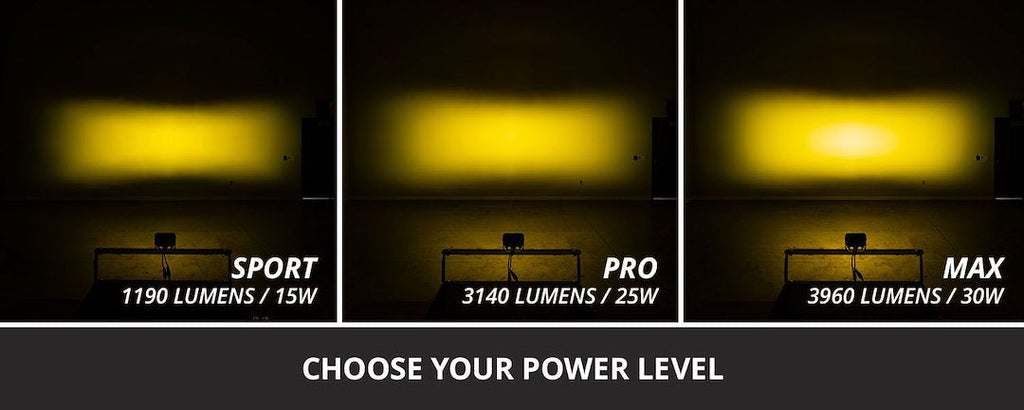

Combine yellow driving coverage with a spot beam in two C2 2.0 Pro pods. Osram Ostar Projection Compact LEDs provide a listed 3,140 raw lumens at 23 watts, with an amber backlight for separate accent illumination.
The patented TIR optical platform has been revised to focus useful light and limit glare; Diode Dynamics reports up to 120% more intensity than C2 1.0 for the platform. A copper-core board bonded to the LEDs and redesigned powder-coated aluminum housings improve heat transfer.

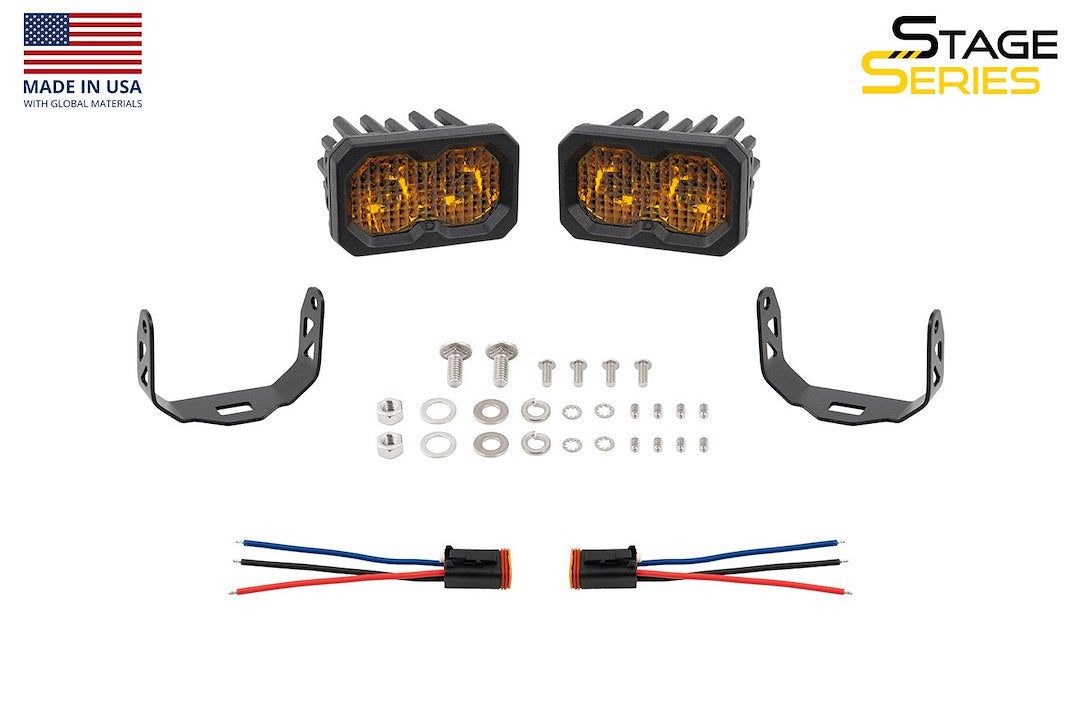

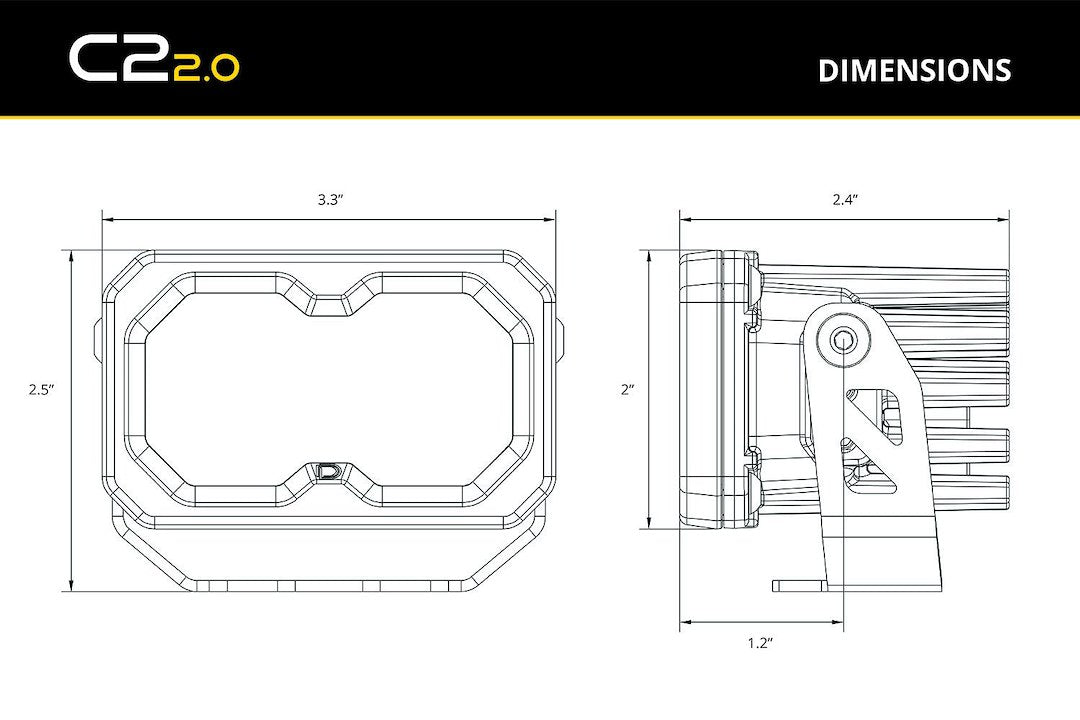

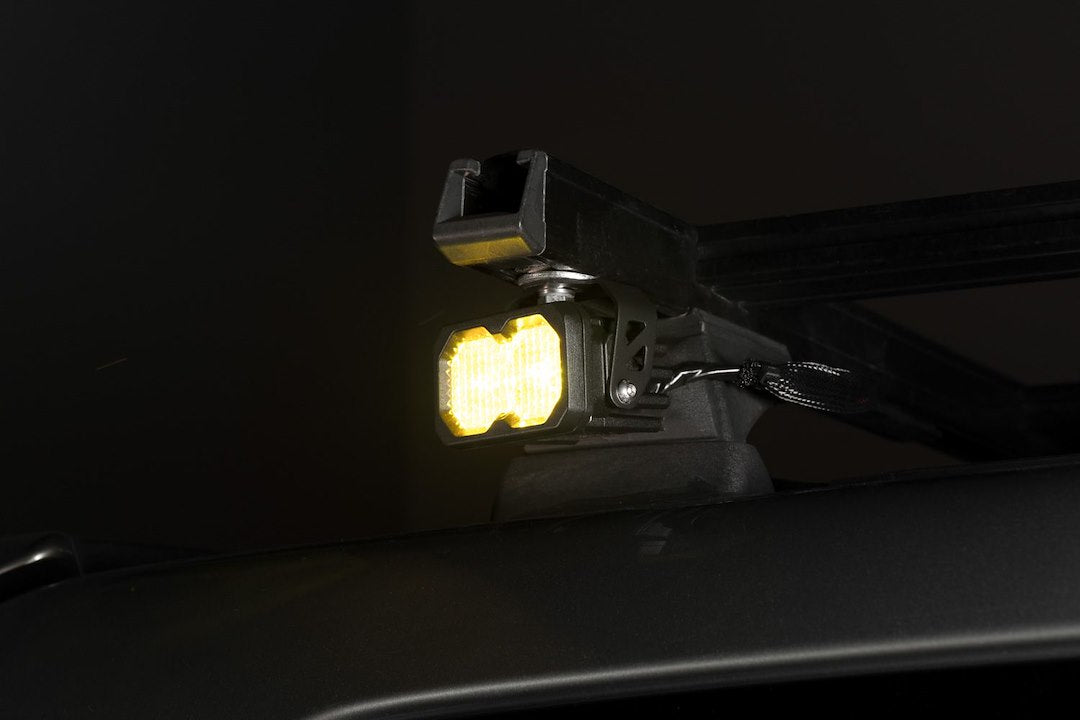

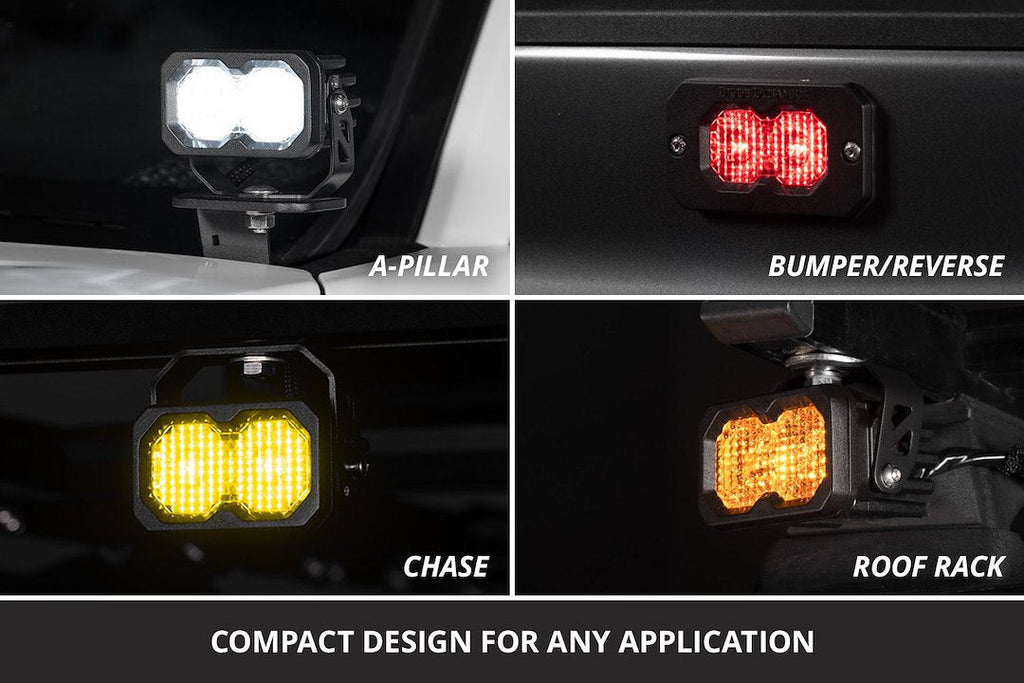

The black rectangular housings measure 2 by 3.3 by 2.4 inches, with polycarbonate lenses. Suitable bumpers, roof racks, roll bars and A-pillars offer mounting possibilities for the compact form. Two brackets, two Deutsch-style pigtails and hardware are included. Ratings are 9–30 volts and 1.8 amps at 12 volts, with a 1.5-hour installation estimate.
Compatibility
Universal fit is subject to the following selection and installation requirements. Customization may be required.
- Voltage Rating: 9 To 30 Volt
- Wattage: 23 Watt
- Ampere Rating At 12 Volts: 1.8 Amp
- Height/ Width: 2 Inch x 3.3 Inch
- Depth: 2.4 Inch
- Mounting Style: Bracket Mount
Specifications
| Estimated Install Time (Hours) | 1.5 |
| Ampere Rating At 12 Volts | 1.8 Amp |
| Height/ Width | 2 Inch x 3.3 Inch |
| Depth | 2.4 Inch |
| Wattage | 23 Watt |
| Lumens | 3140 Raw Lumens |
| Voltage Rating | 9 To 30 Volt |
| Housing Material | Aluminum |
| Housing Color | Black |
| Mounting Style | Bracket Mount |
| Beam Type | Combo Beam Driving And Spot |
| Bulb Type | LED |
| Diameter | Not Applicable |
| Bulb Specifications | Osram Ostar Projection Compact LED Bulb |
| Lens Material | Polycarbonate |
| Shape | Rectangular |
| Universality | Semi-Universal |
| Quantity | Set Of 2 |
| Includes | With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware |
| Light Color | Yellow |
