Description

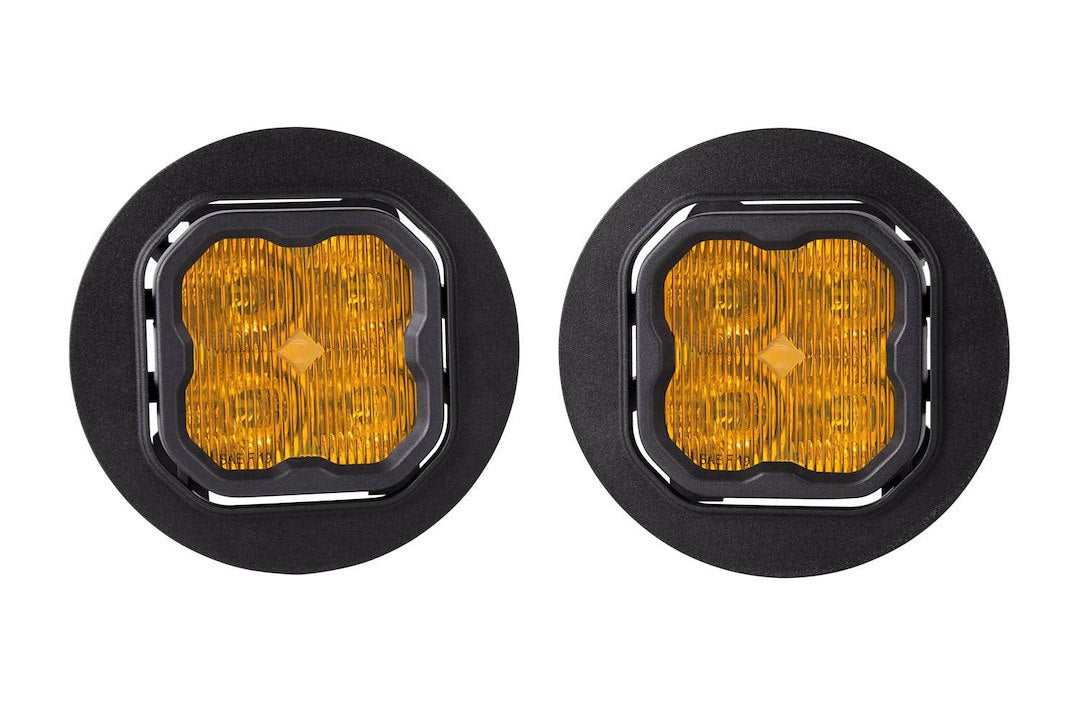

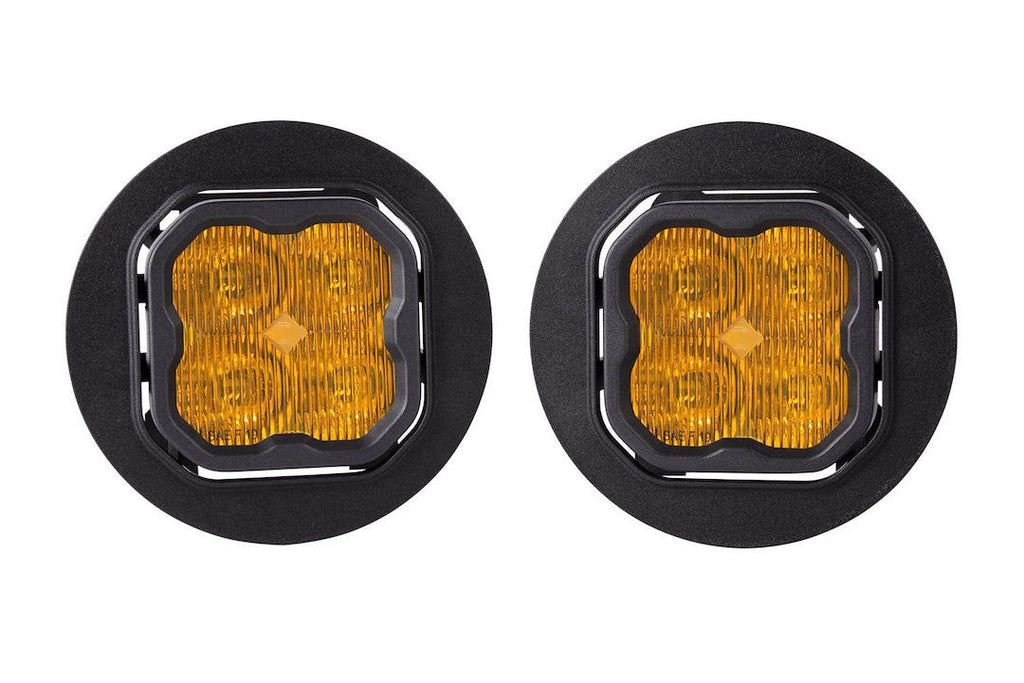

This SS3 Max fog-light pair uses yellow Osram Boost HX LEDs and focused TIR optics in black aluminum housings. Custom brackets and bezels give the assemblies a factory-style fit.

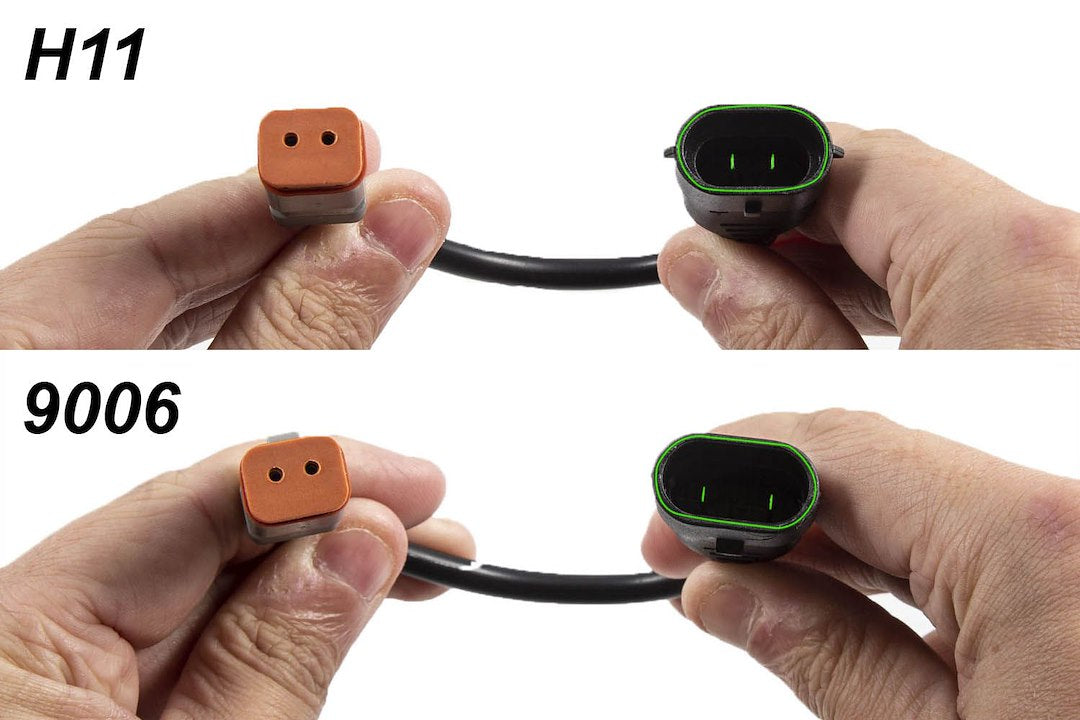

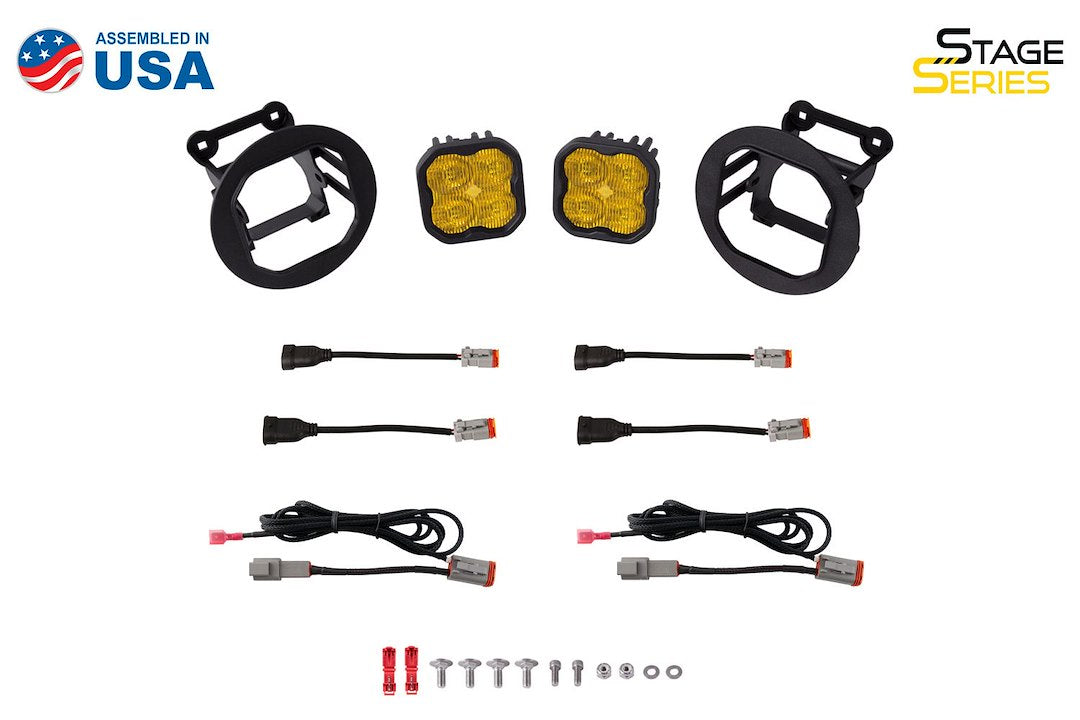

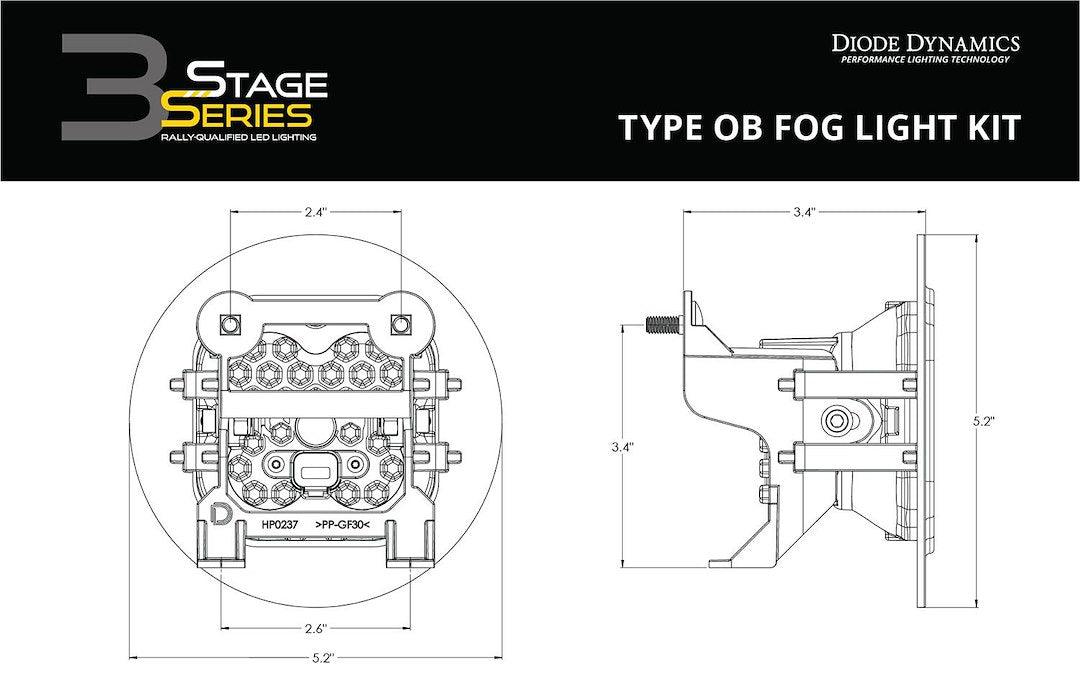

The round assemblies measure 5.2 inches in diameter and 3.4 inches deep. Ratings are 38.5 watts, 12.8 volts and 7,920 lumens. Polycarbonate lenses, a Deutsch-style pigtail and mounting hardware are supplied. Both 9006-size and H11-size DT adapters are provided; select the one matching the factory bulb socket.

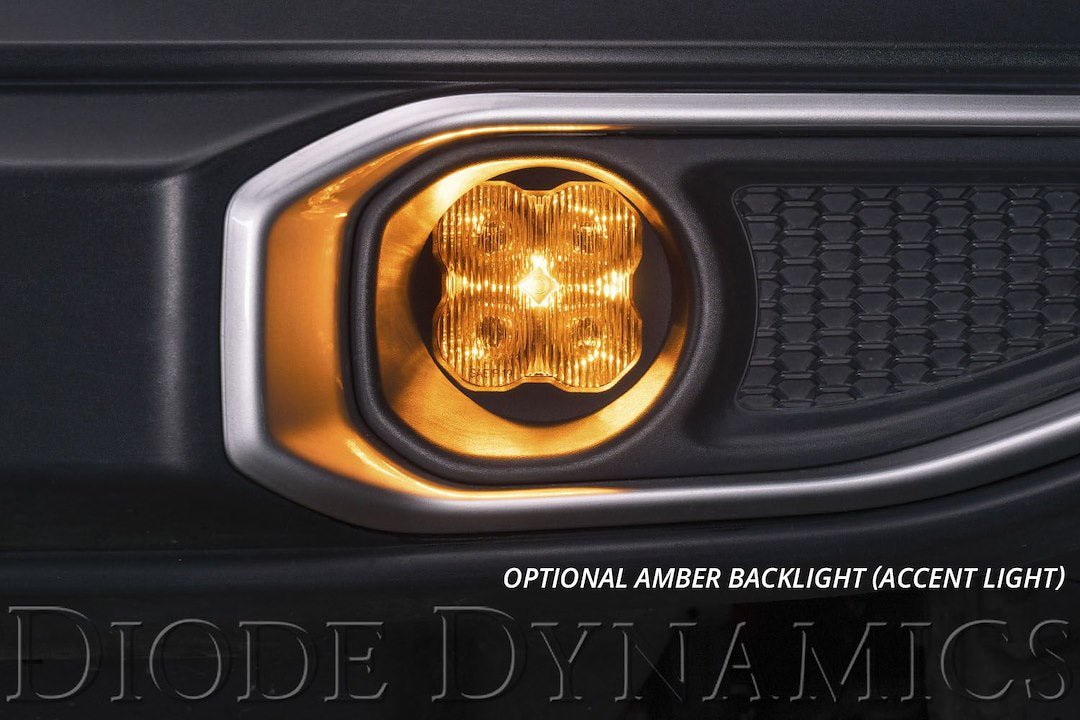

The TIR optic serves as both the light-control optic and main lens, directing light toward the intended area while reducing internal losses and glare. The aluminum extrusion is powder coated, and the lights are engineered and assembled in the USA. The source describes SAE-compliant road-legal output. The broader Stage Series range offers white or yellow light and Sport, Pro or Max output levels; this configuration is yellow Max. An amber backlight function is described for the Stage Series pod.
Specifications
| Bulb Type | LED |
|---|---|
| Beam Type | Fog Beam |
| Shape | Round |
| Diameter | 5.2 Inch |
| Height/ Width | Not Applicable |
| Depth | 3.4 Inch |
| Light Color | Yellow |
| Wattage | 38.5 Watt |
| Voltage Rating | 12.8 Volt |
| Quantity | Set Of 2 |
| Ampere Rating At 12 Volts | 3 Amp |
| Lumens | 7920 Lumens |
| Bulb Specifications | Yellow Osram Boost HX LED Bulbs |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| Housing Material | Aluminum |
| Includes | Deutsch-Style Wire Pigtail And Mounting Hardware |
| Estimated Install Time (Hours) | 1.5 |
Warranty
- Limited 8 Year Warranty
