Description

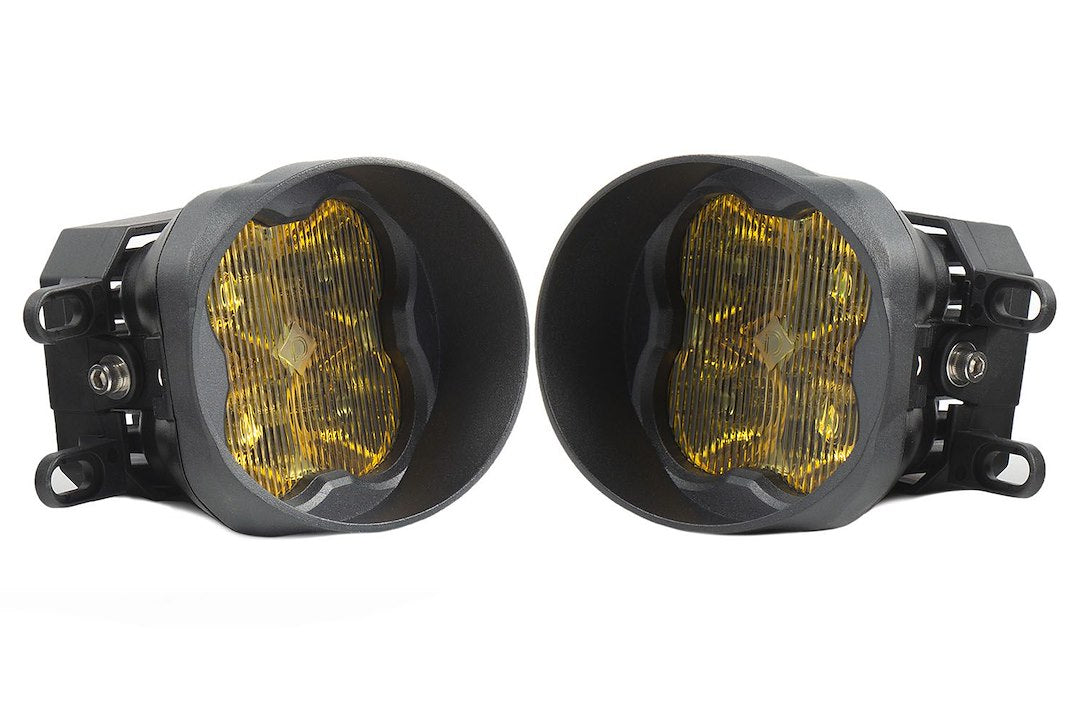

Fit two round SS3 Sport lights for combined fog and wide illumination using the Type B brackets. An angled bezel gives the kit a factory-style appearance, while TIR optics focus the Luxeon Z ES LED output.

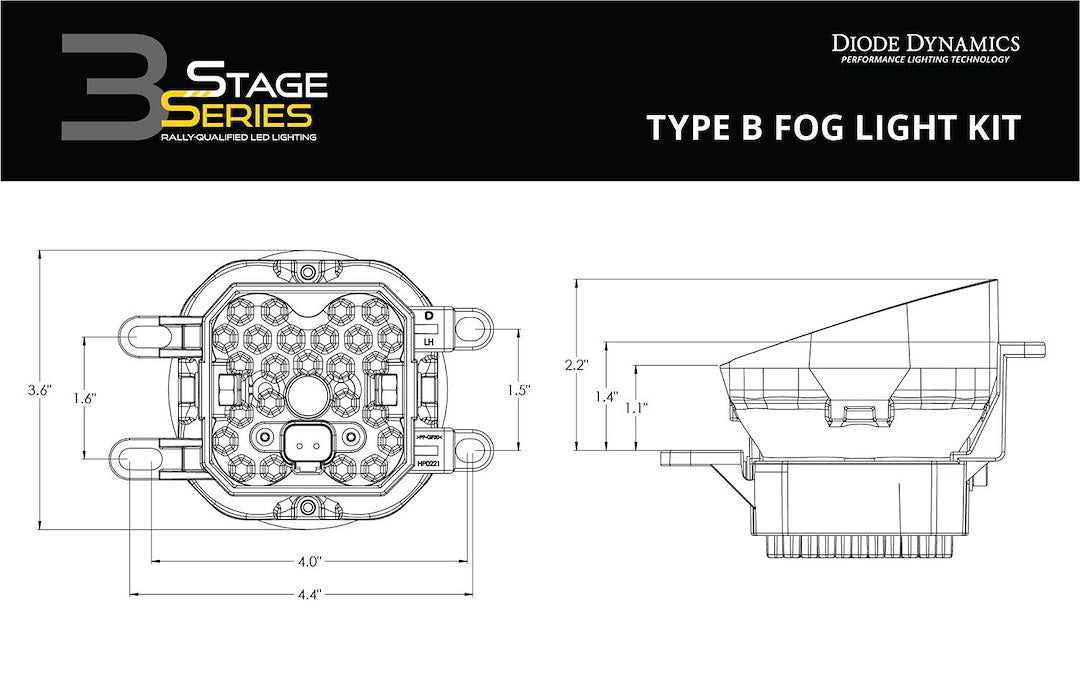

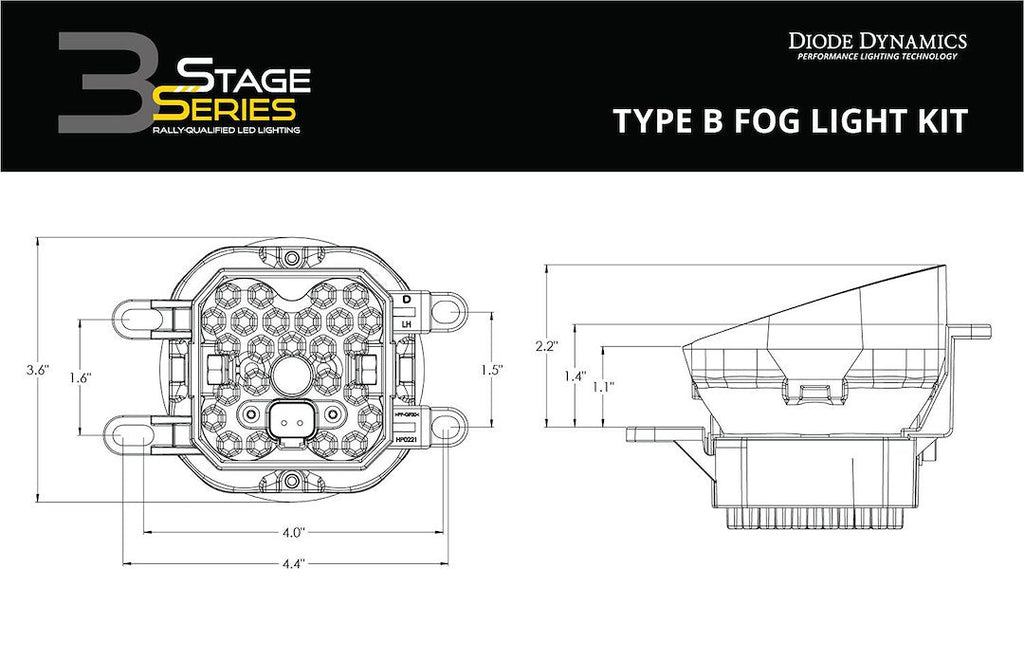

The 3-inch lights are 2.2 inches deep, with black powder-coated aluminum housings and polycarbonate lenses. Listed ratings are 14.5 watts, 2,262 raw lumens, 16 volts and 1.1 amps specified at 12 volts.

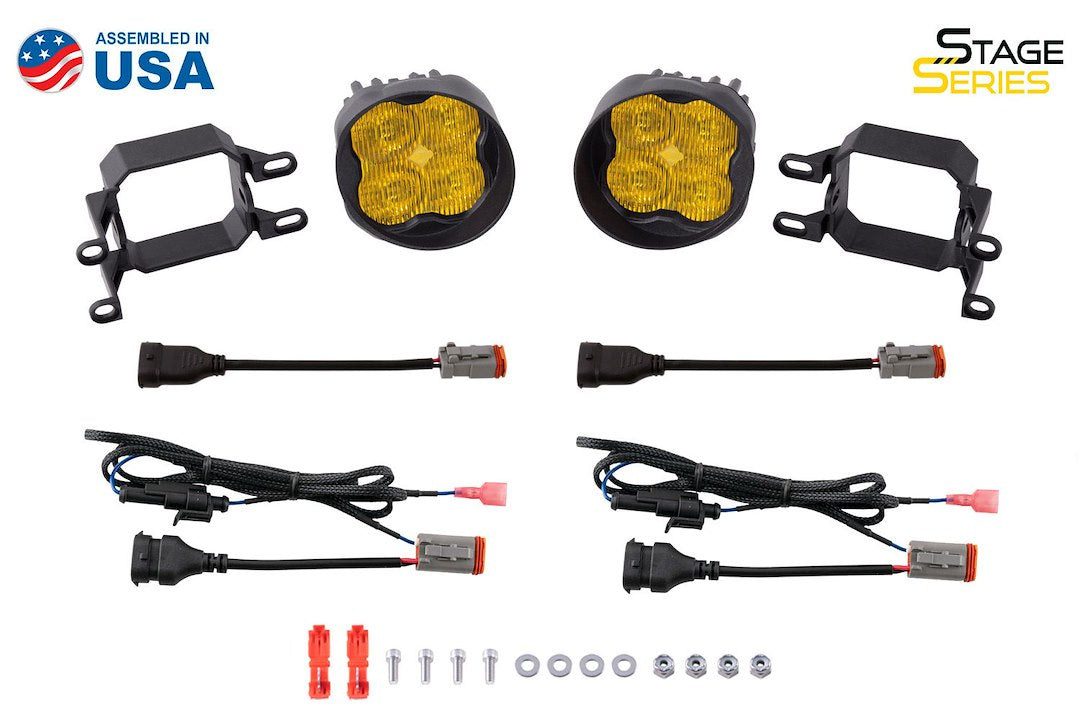

Two Type B brackets, two H11 2-pin DT adapters, hardware and a mounting guide are included for plug-and-play fitting without modification. Output is SAE-compliant for road use. The lights are engineered and assembled in the USA, carry a limited eight-year warranty and have an estimated installation time of 1.5 hours.
Specifications
| Bulb Type | LED |
| Beam Type | Fog/Wide Beam |
| Shape | Round |
| Diameter | 3 Inch |
| Height/ Width | Not Applicable |
| Depth | 2.2 Inch |
| Light Color | Clear |
| Wattage | 14.5 Watt |
| Voltage Rating | 16 Volt |
| Mounting Style | Bracket Mount |
| Quantity | Set Of 2 |
| Ampere Rating At 12 Volts | 1.1 Amp |
| Lumens | 2262 Raw Lumens |
| Bulb Specifications | Luxeon Z ES LED Bulb |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| Housing Material | Aluminum |
| Includes | With Two Type B Bracket/ Two H11 2-Pin DT Adapter/ Mounting Hardware/ Mounting Guide |
| Estimated Install Time (Hours) | 1.5 |
