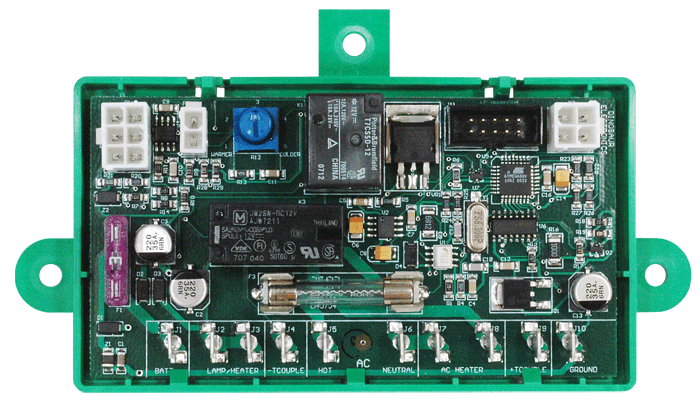

Dinosaur Electronics 3850415.01 Control Board For Dometic Fridge

Upgrade your refrigerator with the Dinosaur Electronics 3850415.01 Replacement Black Box Board, specifically designed to replace Dometic 3850415-xxx models. This high-quality board supports both 2-way and 3-way operation and includes built-in fuse protection for enhanced safety. Featuring variable temperature adjustment, it is ideal for fixed-temperature refrigerators, offering flexible and reliable performance.

Key Features:

• CHECK Light Indicator: Activates if ignition fails after three attempts

• Automatic Ignition Retry: Repeats ignition cycle every 30 minutes if no flame is detected

• 3-Way System Protection: DC element drops out and DC mode light flashes if voltage drops too low for more than 10 seconds

• Easy Installation: Comes with an easy-to-remove cover and detailed instruction sheet

Compatibility Notice:
The 3850415.01 is compatible only with Dometic® 3850415-xxx models. For replacements of other models:

• Use Dinosaur Electronics 3850712.01 for 3850712-xxx models

• Use Dinosaur MICRO P-711 for part numbers beginning with “293”

• Compatible Refrigerator Models & Serial Ranges:

• NDR1062 (921146080 – 921146087)

• NDR1292 (921148101 – 921148110)

• RM2354 (921145025 – 921145031)

• RM2451 (921140112 – 921140126)

• RM2454 (921140114 – 921140119)

• RM2551 (921142101 – 921142110)

• RM2554 (921142107 – 921142108)

• RM2620 (921575002 – 921575013)

• RM2652 (921144101 – 921144140)

• RM2662 (921144103 – 921144110)

• RM2663 (921144105 – 921144106)

• RM2820 (921596009 – 921596011)

• RM2852 (921146101 – 921146154)

• RM2862 (921146103 – 921146108)

• RM3862 (921146109 – 921146160)

• RM2351 (various serials)

Ensure optimal refrigerator performance and safety with this reliable replacement board.

3850415 board-family restriction

Dinosaur's 3850415.01 board replaces a previously correctly installed Dometic 3850415-series kit controller, maintaining its eligible two-way/three-way operating arrangement and corresponding eyebrow. Dinosaur separately specifies 3850712.01 for 3850712/3316348 boards and Micro P-711 for eligible 293-prefix black-box boards.

Verify the number on the existing physical controller and confirm any prior kit conversion, gas valve, eyebrow and DC heater configuration. Model/product-series references already displayed above remain unchanged, but those references alone must not supersede the control board's actual identity.
