Description

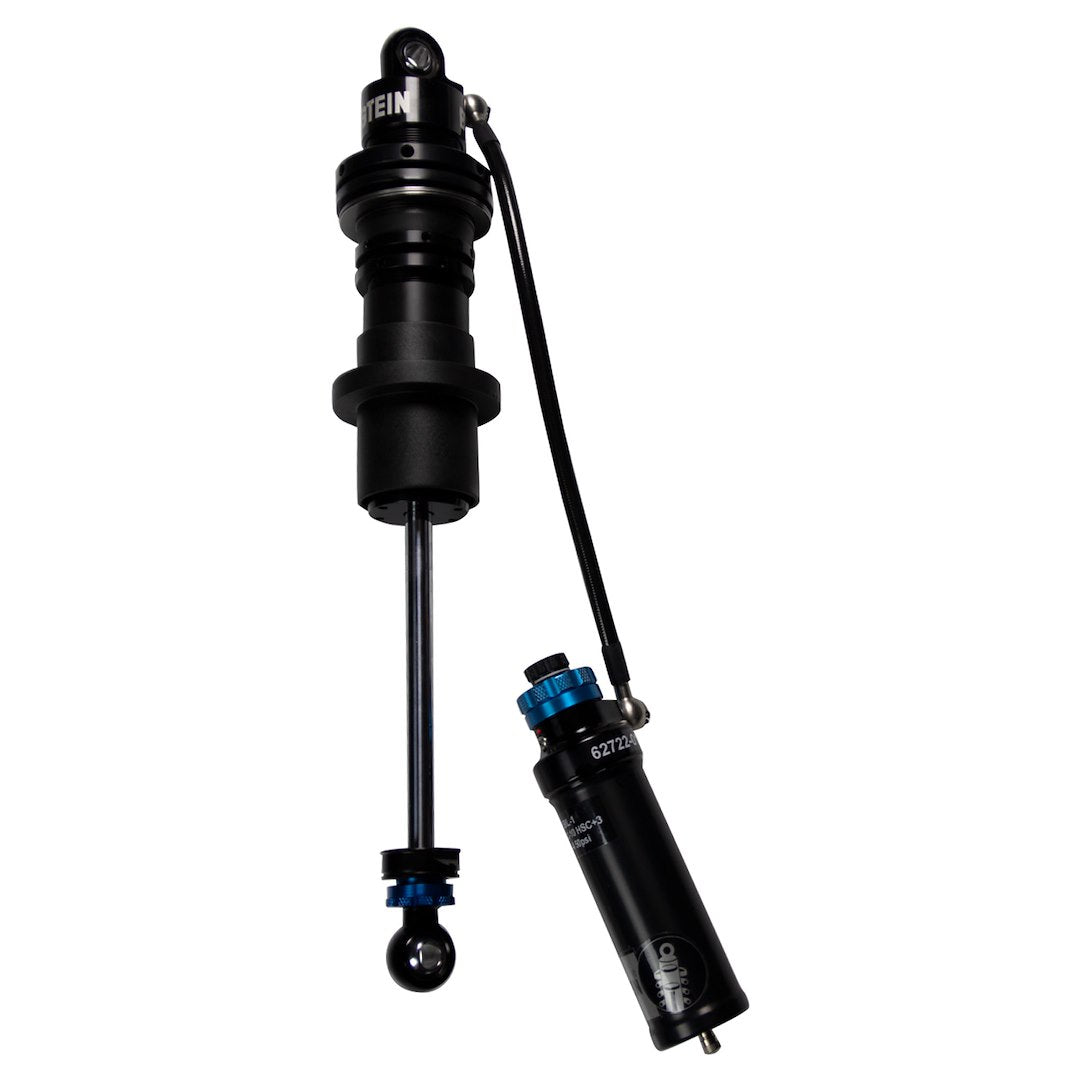

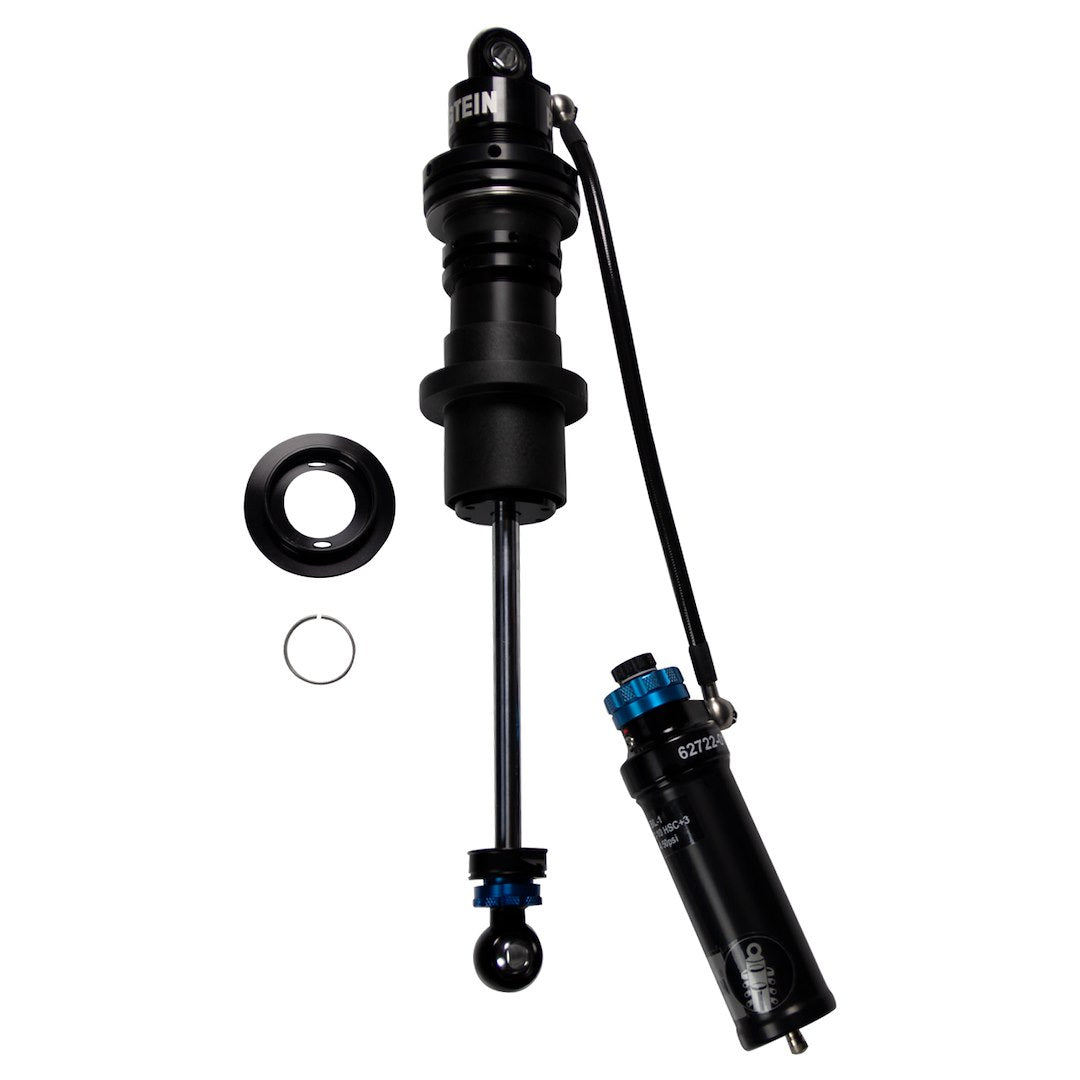

The AS2-R 33-370101 offers rebound-adjustable valving in a modular aluminum motorsport shock with an aluminum-bodied remote reservoir. The AS2-based system uses a tunable base valve and upgrade options for race tuning and suspension travel. Its lightweight threaded body can be used with or without coilover hardware; pistons, piston bands and heims are sold separately.
Fit and dimensions
This single nitrogen monotube has a 0.59-inch rod, eyelet mounts and 14.84/18.4-inch compressed/extended lengths. The fully universal application may require customization. A reservoir is included; a coil spring and boot are not.
Fitment declaration
This is a universal product and may require customization to complete installation.
Specifications
| Estimated Install Time (Hours) | 0.5 |
| Rod Diameter (IN) | 0.59 Inch |
| Compressed Length (IN) | 14.84 Inch |
| Extended Length (IN) | 18.4 Inch |
| Body Material | Aluminum |
| Lower Mounting Style | Eyelet |
| Upper Mounting Style | Eyelet |
| Universality | Fully Universal |
| Internal Design | Monotube |
| Type | Nitrogen Gas Charged |
| Includes Boot | No |
| With Coil Spring | No |
| Valving Type | Rebound Adjustable Valving |
| Quantity | Single |
| Adjustable Valving | Yes |
| With Reservoir | Yes |
