Description

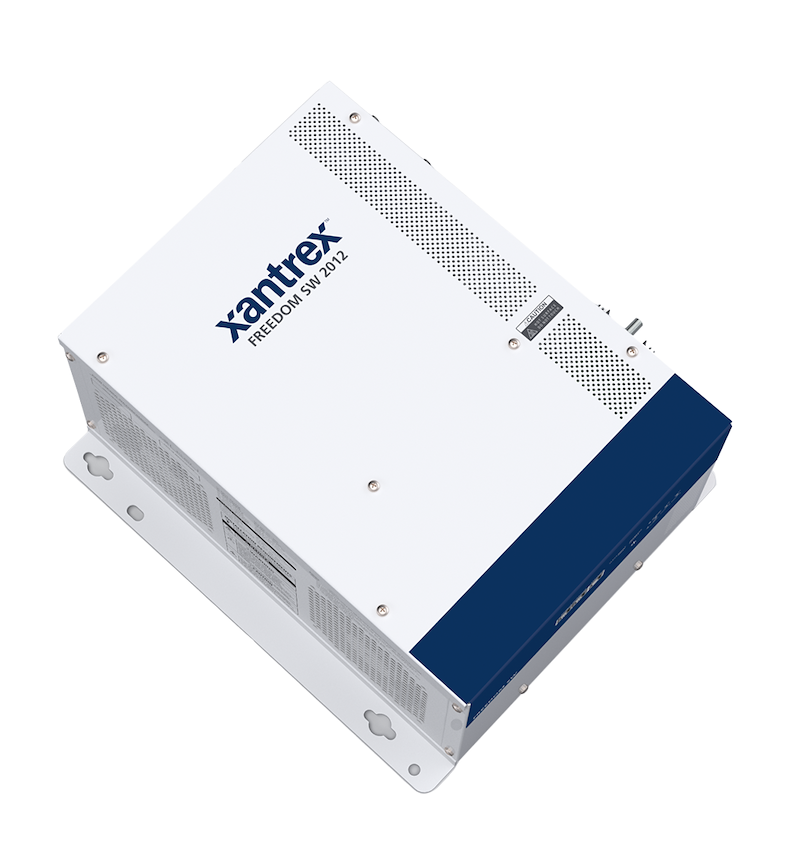

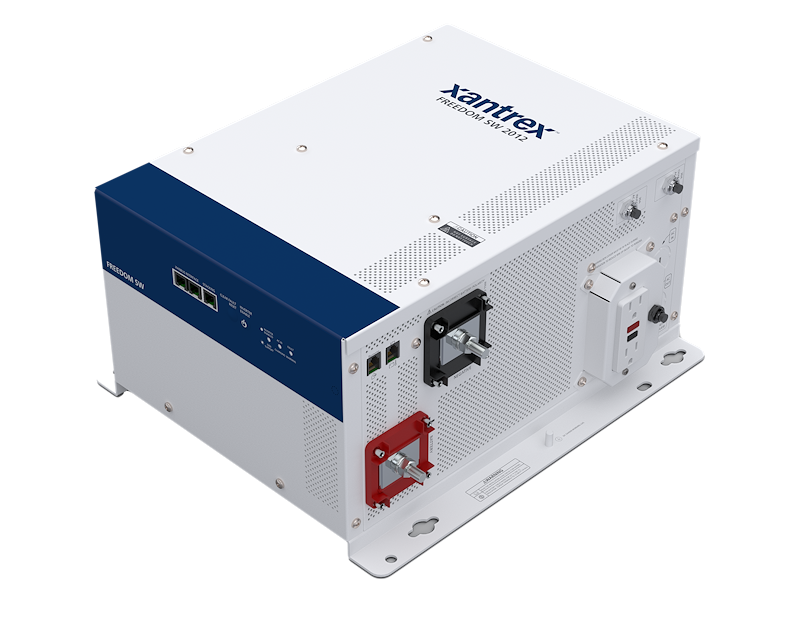

The Xantrex 815-2012 Freedom SW is a powerful 2000-watt pure sine wave inverter/charger designed for 12V battery systems in RV, marine, and mobile power applications. It combines a high-output inverter, 100-amp multi-stage battery charger, and automatic AC transfer switch in one integrated system.
With a 4000-watt surge capacity and fast AC transfer, the Freedom SW is designed to reliably operate sensitive electronics and demanding AC loads while providing efficient battery charging.
Features
- Brand New
- 2000-watt continuous pure sine wave output
- 4000-watt surge output
- Designed for 12V battery systems
- 100-amp battery charging capability
- Power factor corrected 3-stage charger
- Built-in automatic AC transfer switch
- Transfers loads to battery power in less than 10 milliseconds when incoming AC power is lost
- Generator Support Mode can supplement generator power when AC demand exceeds generator capacity
- Pure sine wave output for sensitive electronics
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown protection
- Automatic overload protection
- Short-circuit protection
- Integrated resettable AC breakers
- Temperature-compensated battery charging
- Parallel and series stacking capability
- Remote battery sensor
- Battery temperature sensor
- Optional remote control panel available separately
- Limited 2-year warranty
Specifications
- Manufacturer: Xantrex
- Manufacturer Part Number: 815-2012
- Series: Freedom SW
- Type: Inverter / Battery Charger
- Battery System: 12 Volt
- Continuous Output: 2000 Watts
- Surge Output: 4000 Watts
- Output Waveform: Pure Sine Wave
- Charger Output: 100 Amps
- Inverter Input: 10.5–15.5V DC
- Charger Input: 90–130V AC
- Efficiency: 90%
- Phase: Single Phase
- Operating Temperature: -4°F to 140°F

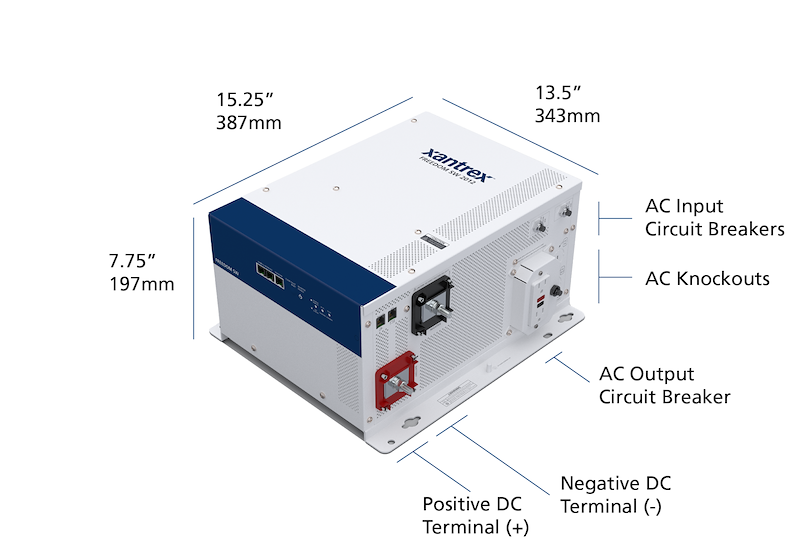

- Dimensions: 15-1/4" L x 13-1/2" W x 7-3/4" H
- Remote Panel: Optional / Sold Separately
Generator Support & Fast Transfer
The Freedom SW features Generator Support Mode, allowing battery/inverter power to supplement a generator when connected AC loads temporarily exceed the generator's available capacity.
Its improved AC detection and transfer system can switch loads to battery/inverter power in less than 10 milliseconds following loss of shore or generator power, helping minimize interruptions to connected equipment.
Built-In Battery Charger
The integrated 100-amp power factor corrected 3-stage charger provides temperature-compensated charging for 12V battery systems across varying operating conditions.
Safety & Protection
Integrated protection includes:
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Resettable AC circuit breakers
Certifications & Standards
- ETL Listed
- CSA 107.1
- UL 458
- ABYC E11
- ABYC A-31
- ABYC A-32
Important Compatibility Information
This model is designed for 12V battery systems. Verify battery bank specifications, AC/DC wiring requirements, charging requirements, and system compatibility before installation.
The optional remote panel and other monitoring or power-management accessories are sold separately.
Warranty
Limited 2-Year Warranty
