Description
The WFCO 8700 Series 35A Power Converter/Charger is a powerful and intelligent solution for converting 105-130V AC to 13.2-14.4V DC, delivering 475W continuous and 600W peak output. Designed for RVs, marine applications, and off-grid power systems, it ensures a stable and efficient DC power supply while incorporating advanced battery management and safety features.
Featuring three-stage smart charging, this unit enhances battery performance with:
🔋 Float Mode (13.2V DC) – Maintains battery charge and prevents overcharging
🔋 Absorption Mode (13.6V DC) – Ensures steady and efficient charging
🔋 Bulk Mode (14.4V DC) – Rapid recovery for deeply discharged batteries
Built with comprehensive safety protections, the WF-8735 safeguards against short circuits, reverse polarity, over-current, over-temperature, and over-voltage, ensuring maximum reliability and safety.
The built-in cooling fan operates only when needed, ensuring quiet and efficient performance, while the front-cooled design eliminates additional installation space requirements.

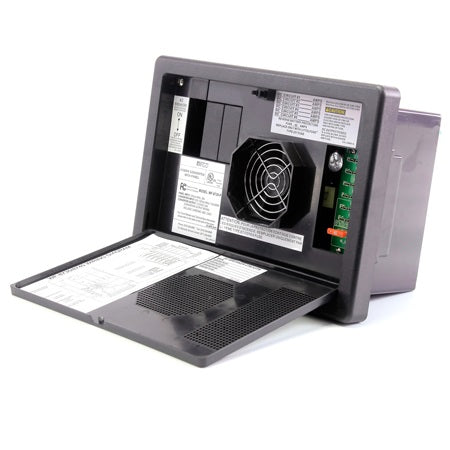

The integrated AC/DC distribution center simplifies power management with:
✔ Six 30A AC output circuits
✔ Six 35A DC output circuits
✔ LED indicators for open circuit detection
Key Features & Benefits:
✔ Converts 105-130V AC to 13.2-14.4V DC – 475W continuous / 600W peak output
✔ 35A max DC output for stable and reliable power
✔ Auto-Detect Intelligent Battery Charging – Compatible with Lead Acid, AGM, and LiFePO4 Lithium batteries
✔ Three-Stage Smart Charging for extended battery life
✔ Advanced Safety Protections:
-
Short-circuit, reverse polarity, over-current, over-temperature, and over-voltage protection
✔ AC/DC Power Distribution Center: - Six 30A AC output circuits & Six 35A DC circuits
-
LED indicators for circuit monitoring
✔ Ultra-Quiet, Front-Cooled Cooling Fan – Operates only when needed
✔ FCC Class B Compliant – Reduces interference with TVs, radios, and other electronics
✔ Compact & Durable Design: - Outer Dimensions: 3-3/4" L x 11-7/8" W x 7-5/16" H
-
Rough Opening Dimensions: 3-3/4" L x 10-7/16" W x 6-1/8" H
✔ Limited 2-Year Warranty
The WFCO 8700 Series 35A Power Converter is a top-tier choice for efficient power conversion, advanced battery charging, and enhanced safety features—perfect for RV owners, marine enthusiasts, and off-grid setups. Upgrade your electrical system today!
