Brand New • Online Only
Description

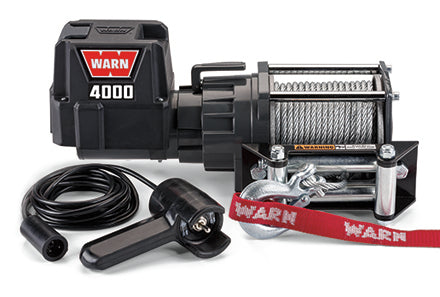

Warn 94000 is a 12V winch with a listed 4000 lb rating. It has 43 ft of steel line. Match the installation, power or drive requirements and load conditions before use.
Specifications
| Brand | Warn |
| Manufacturer Part Number | 94000 |
| Winch Rating | 4000 lb |
| Type | Electric |
| Operation Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Motor Horsepower | 1.9 Horsepower |
| Thermal Shutoff | No |
| Gear Reduction Ratio | 7.3340277778 |
| Free Spooling | No |
| Line Material | Steel |
| Fairlead Type | Roller |
| Remote Type | Wired |
| Brake Type | Dynamic And Mechanical Braking |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Mounting Pattern Size | 2-1/2 in Length X 3 in Width |
| Max Amp Draw | 240 Amp Draw At 4000 lb |
| Line Speed At Max Pull | 6.9 ft Per Minute At 4000 lb |
| Electrical Control Type | Remote Solenoid |
| Motor Type | Permanent Magnet |
| Drive Gear Type | Planetary |
| Mounting Hole Quantity | 3 |
| Estimated Install Time (Hours) | 2 |
Dimensions
| Line Length (FT) | 43 ft |
| Line Diameter (IN) | 7/32 in |
Key Features
- Powerful Series-Wound DC Motor with Robust Sealing.
- Proven 3-Stage All-Metal Gear Train with Permanent Grease Lubrication for Years of Trouble-Free Service.
- Automatic Disc Brake Holds Full Rated Load.
- Limited 1 Year Warranty.
- All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
- The durable powder coated finish stands up to the elements and looks great.
- The hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.
Compatibility
| Recommended Use | ATV/ UTV |
