Description

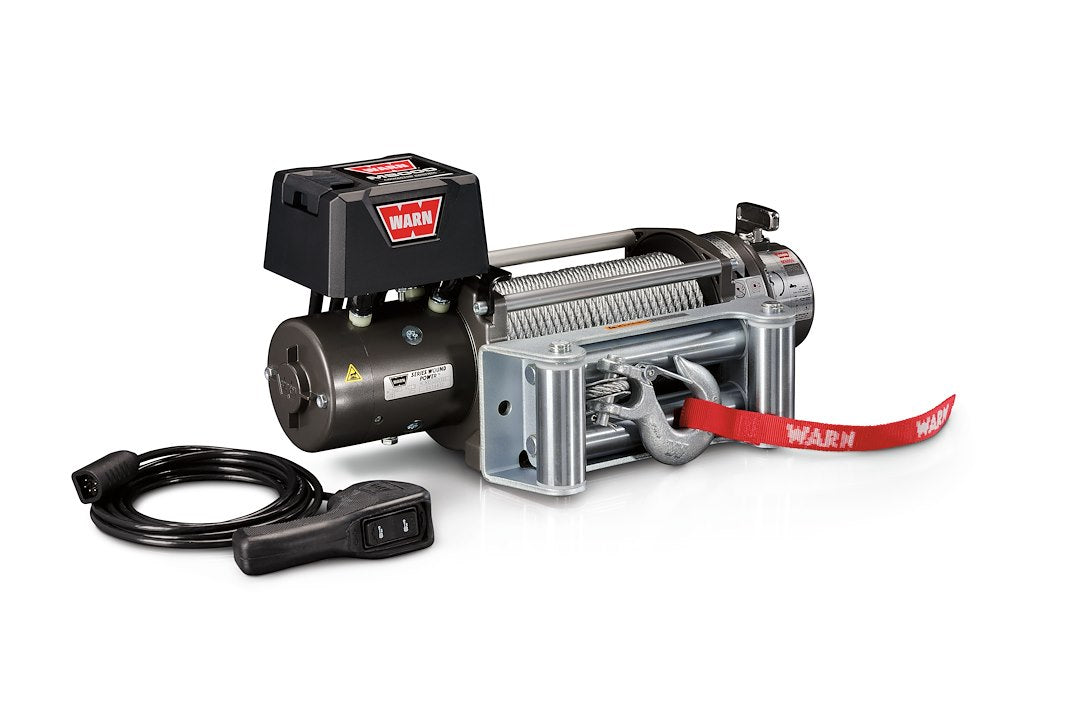

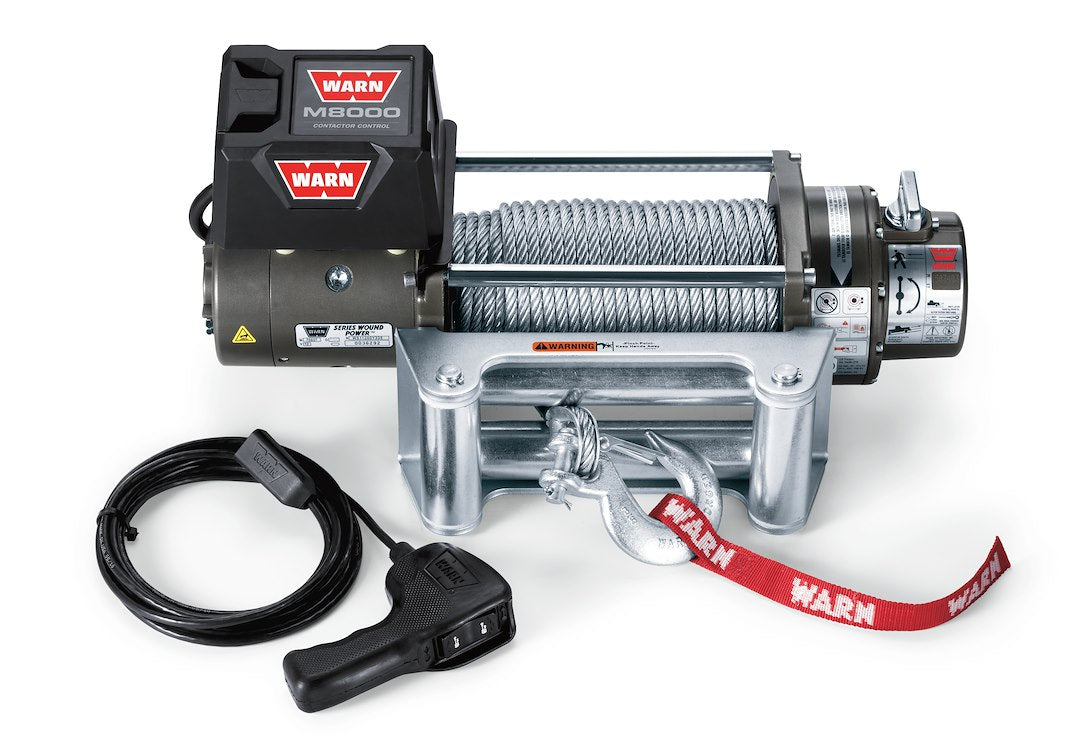

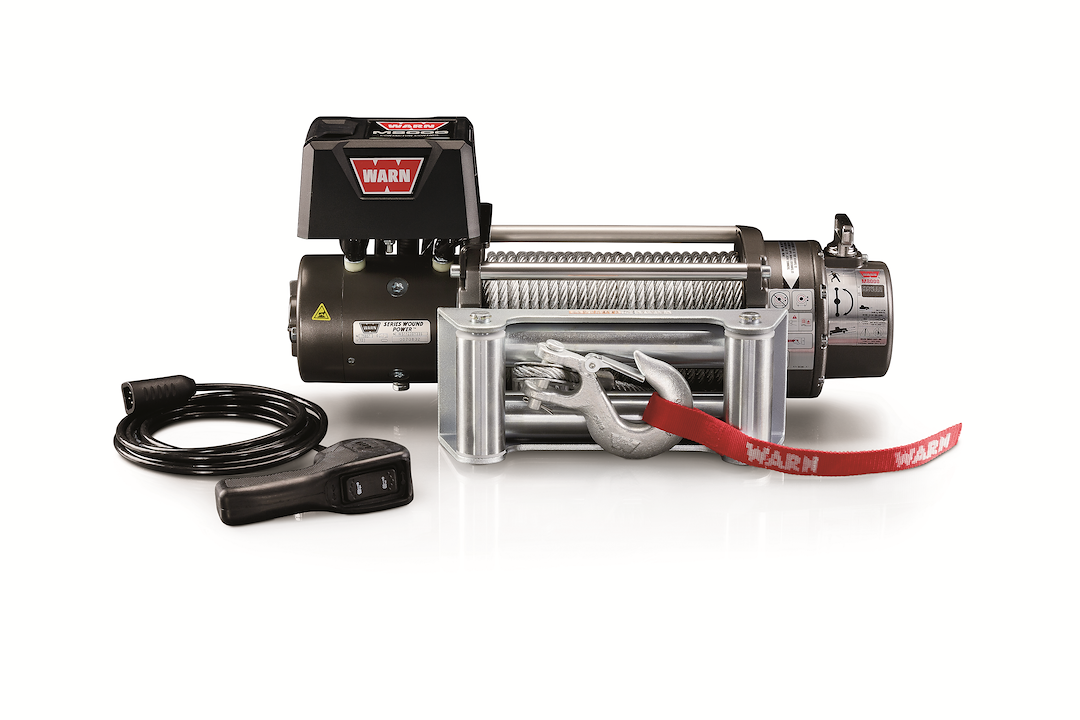

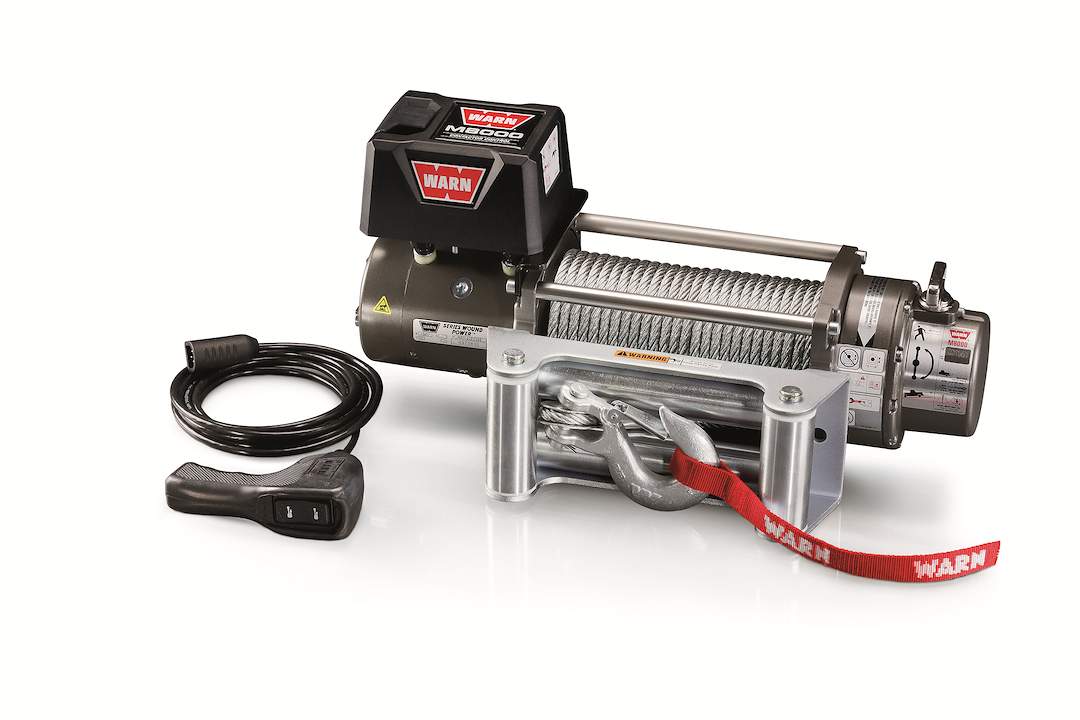

Warn 26502 is a 12V winch with a listed 8000 lb rating. It has 100 ft of steel line. Match the installation, power or drive requirements and load conditions before use.
Specifications
| Brand | Warn |
| Manufacturer Part Number | 26502 |
| Winch Rating | 8000 lb |
| Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Motor Horsepower | 4.8 Horsepower |
| Thermal Shutoff | No |
| Gear Reduction Ratio | 9.0006944444 |
| Free Spooling | Yes |
| Operation Type | Power |
| Line Material | Steel |
| Fairlead Type | Roller |
| Remote Type | Wired |
| Brake Type | Mechanical Cone |
| Includes Mounting Hardware | No |
| Color | Gray |

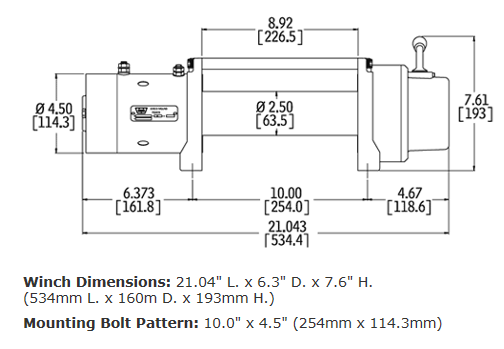

| Mounting Pattern Size | 10 in Length X 4-1/2 in Width |
| Max Amp Draw | 435 Amp Draw At 8000 lb |
| Line Speed At Max Pull | 4.8 ft Per Minute At 8000 lb |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Drive Gear Type | Planetary |
| Mounting Hole Quantity | 4 |
| Estimated Install Time (Hours) | 2 |
Dimensions
| Line Length (FT) | 100 ft |
| Line Diameter (IN) | 5/16 in |
Key Features
- Competition Grade Power, Speed and Reliability.
- Pulling Capacity Up to 9,000 lb.
- Compact, Tough and Reliable.
- Limited Lifetime Warranty.

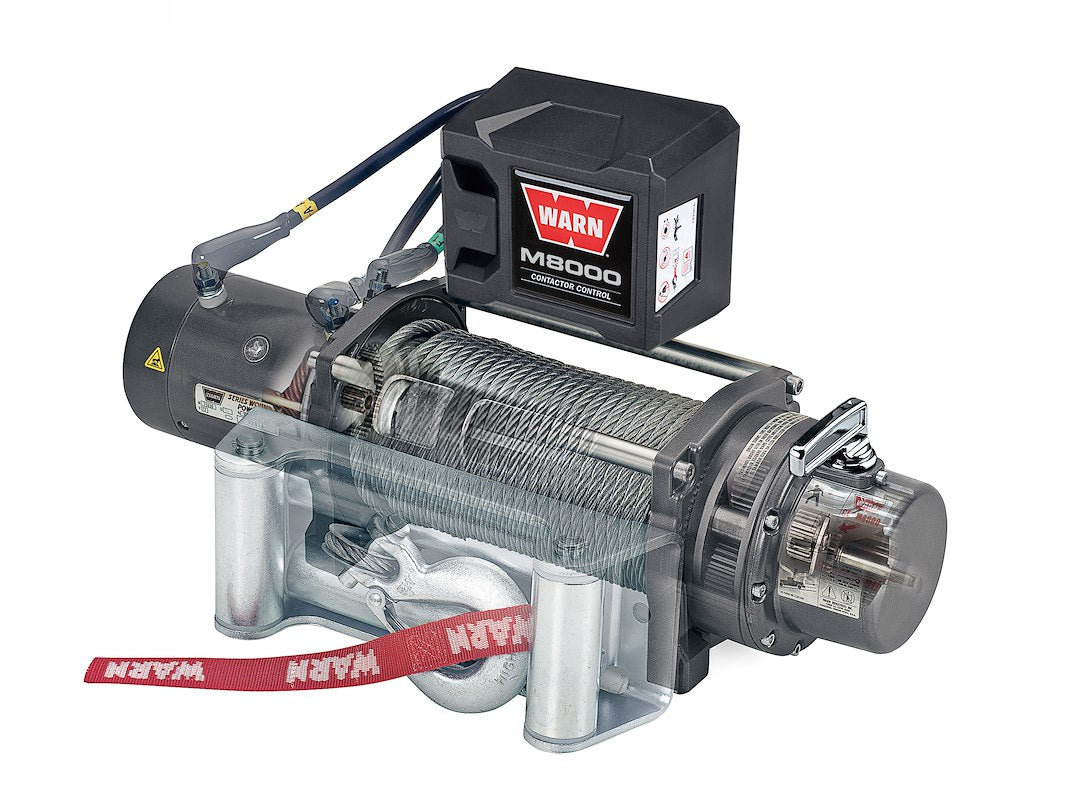

- The M8000, with its 4.8 Horsepower series wound motor and 3 stage planetary gear train, Packs 8,000 lb of pulling power to get the job done.
- Available with either 80 ft of wire rope and hawse fairlead or 100 ft of wire rope and roller fairlead.
Compatibility
| Recommended Use | Vehicle Recovery |
