Torklift R3500 Rear Frame Mounted Camper Tie Downs Chevrolet C/K Series & Colorado

Key Specifications

Manufacturer: Torklift
Manufacturer Part Number: R3500
Mount Location: Rear (Frame Mounted via Hitch)
Material: Steel
Finish: Powder Coated
Installation Type: Frame / Hitch Mounted (Drilling Required on Most Applications)

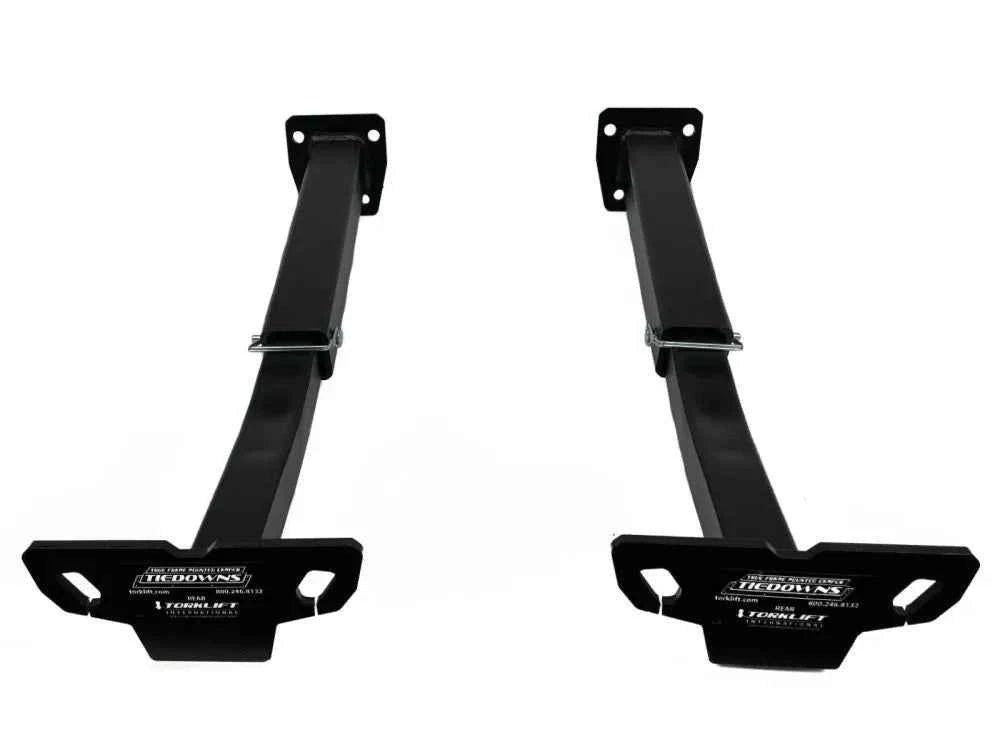

Quantity: Set of 2
Condition: New

Full Vehicle Compatibility

Chevrolet C1500 (1988–1999):

• Standard Cab & Extended Cab
• 6.5 ft & 8 ft bed configurations

Chevrolet C2500 (1988–2000):

• Standard Cab, Extended Cab, Crew Cab
• 6.5 ft & 8 ft bed configurations
• Includes models with 5.5" and 8" frame variations

Chevrolet C3500 (1991–2000):

• Standard Cab, Extended Cab, Crew Cab
• 8 ft bed configurations

Chevrolet K1500 (1988–1999):

• Standard Cab & Extended Cab
• 6.5 ft & 8 ft bed configurations

Chevrolet K2500 (1988–2000):

• Standard Cab & Extended Cab
• 6.5 ft & 8 ft bed configurations

Chevrolet Colorado:

• 2007–2012 Extended Cab – 6 ft bed
• 2019–2022 Extended Cab & Crew Cab

Fitment & Installation Notes

• Designed for rear mounting using aftermarket hitch systems
• Requires 4" x 4" mounting footprint on hitch side plates
• Drilling is required for installation (up to 8 holes in some applications)
• Compatible with aftermarket hitch systems only (not factory hitch-specific)
• Some applications require frame size verification (5.5" or 8")
• Designed specifically for older GM truck platforms and select Colorado models

Features & Benefits

• Frame-mounted design ensures maximum strength and load stability
• Prevents bed and bumper damage common with weaker systems
• Improves vehicle handling, reduces sway, and stabilizes camper load
• Removable insert system allows clean appearance when not in use
• Maintains usable ground clearance depending on hitch configuration
• Secure attachment directly to truck frame via hitch structure
• Compatible with spring-loaded turnbuckles for warranty coverage
• Built from heavy-duty steel for long-term durability
• Made in the USA with Torklift’s Legendary Lifetime Warranty

Product Description

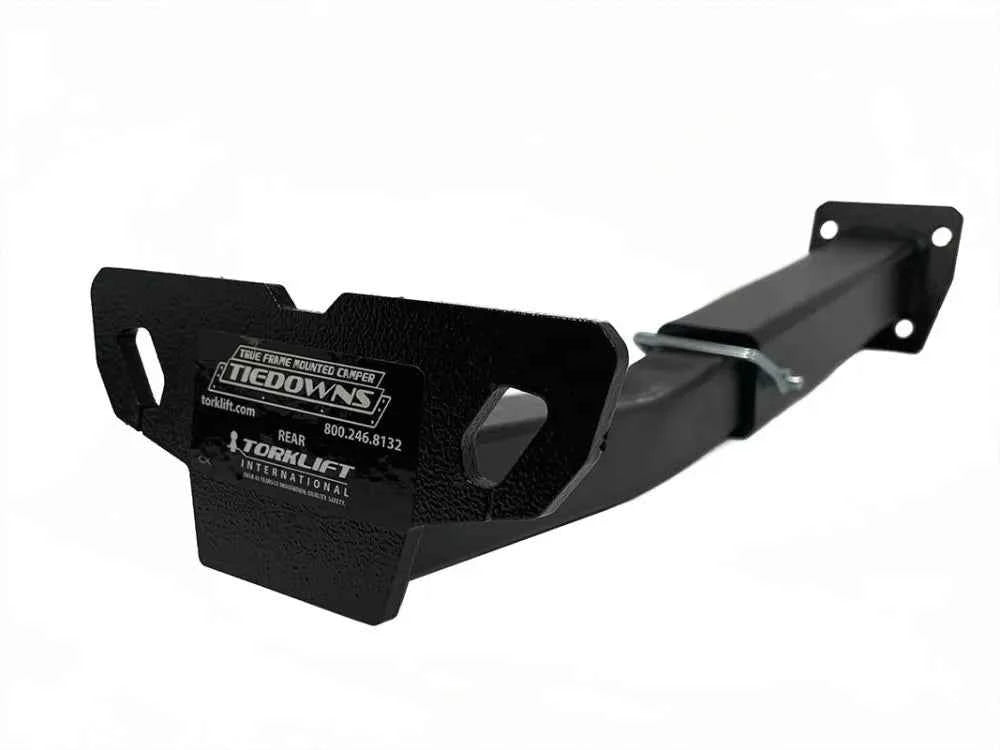

The Torklift R3500 Rear Camper Tie Downs are a heavy-duty, hitch-mounted solution engineered for older Chevrolet C/K series trucks and select Colorado models. Unlike modern no-drill frame-mounted systems, this unit is designed to integrate with aftermarket hitch assemblies, providing a secure rear anchor point for truck campers.

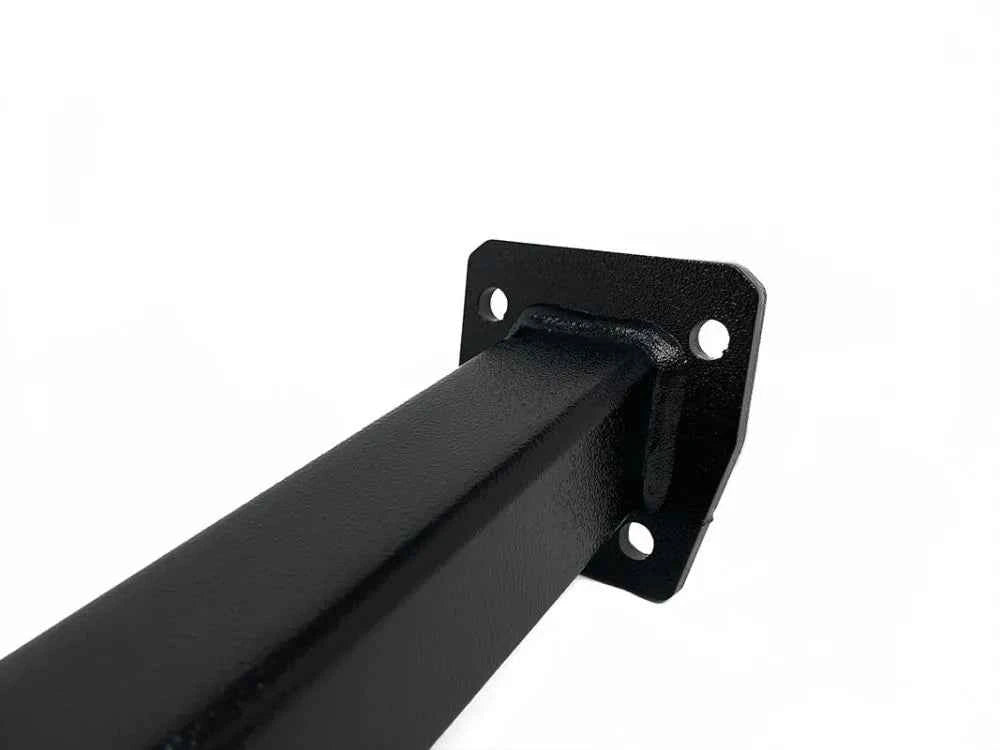

This system utilizes a two-piece design, consisting of a permanently mounted bracket and a removable insert. When not in use, the insert can be removed to maintain a clean, unobtrusive appearance.

Due to the vehicle platforms it supports, installation typically requires drilling into the hitch side plates, ensuring a solid and secure connection point capable of handling demanding camper loads.

Important Notice

Before installation, confirm:

• Your vehicle’s payload capacity
• Compatibility with your aftermarket hitch system
• Required drilling and mounting clearances

Failure to follow vehicle manufacturer guidelines may affect safety and warranty.
