Brand New • Online Only

T-H Marine MJ-1-DP Small Outboard Jack Plate - 4 in Setback, 35 HP

Save $91.00
T-H MarineSKU: 11-2803

Price:
Sale price$269.00 Regular price$360.00

Shipping calculated at checkout

Stock:
Only 2 units left

Description

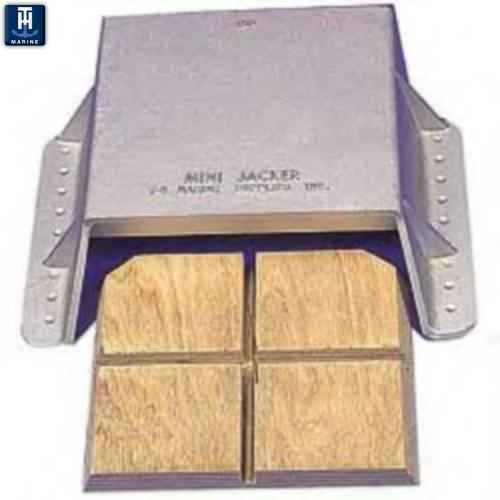

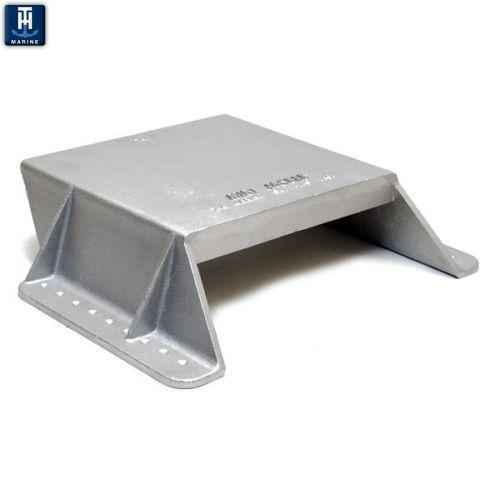

T-H Marine MJ-1-DP is a clamp-style aluminum jack plate for a small outboard motor. It has a 4-inch setback, 3-inch vertical adjustment and a listed 35 HP rating; match the motor and transom mounting.

Specifications

Brand T-H Marine
Manufacturer Part Number MJ-1-DP
Setback 4 in
Horsepower 35 Horsepower
Adjustment 3 in Vertical
Color Gray
Material Aluminum
With Rocker Switch No
With Relay Harness No

Key Features

  • Cast Aluminum Bracket.
  • Marine Grade Transom Block.
  • Clamp Style Small Outboard Jack Plate.
  • 35 Maximum Horsepower.
  • Limited 1 Year Warranty.

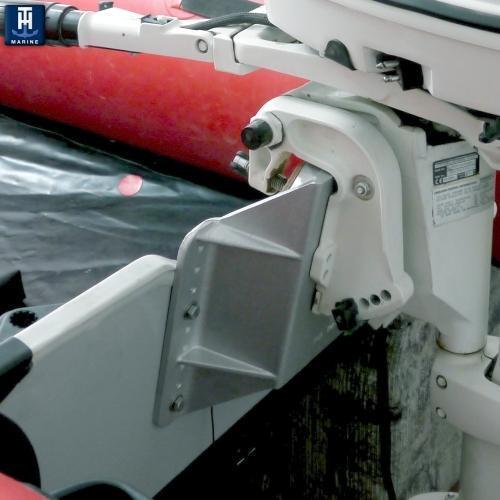

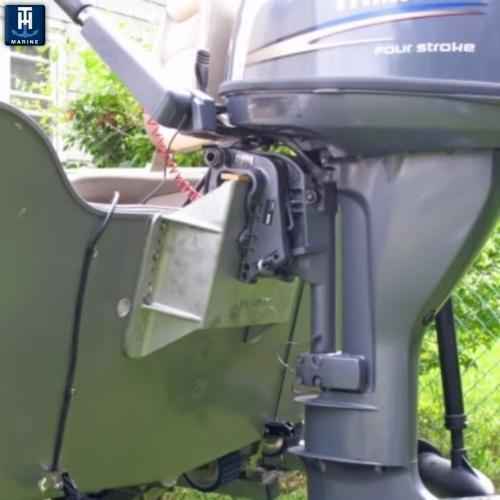

  • The Mini Jacker ™ allows mounting of long shaft motors to shorter shaft transom boats.
  • The mini-jacker ™ stands off transom 4 in.
  • The engine mounting surface is 11 1/2 in wide x 10 in high and features a vertical offset of 3 in.
  • The overall width of transom mounting flanges is 17 in.
