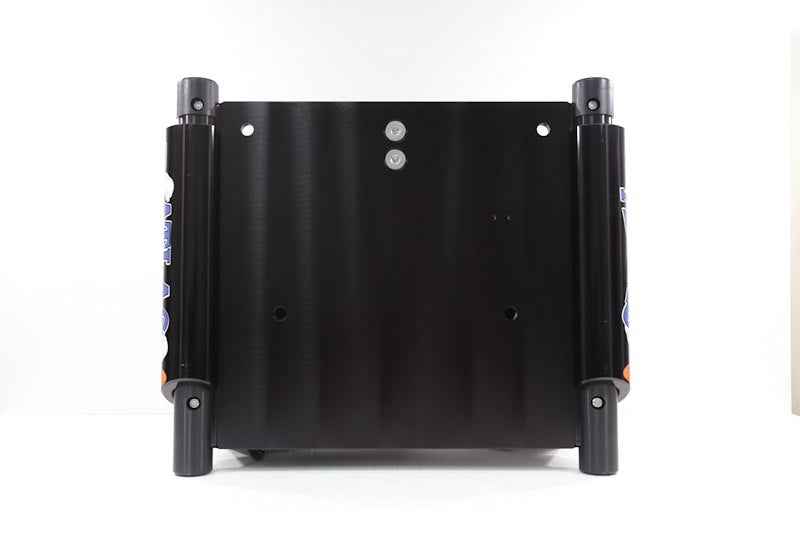

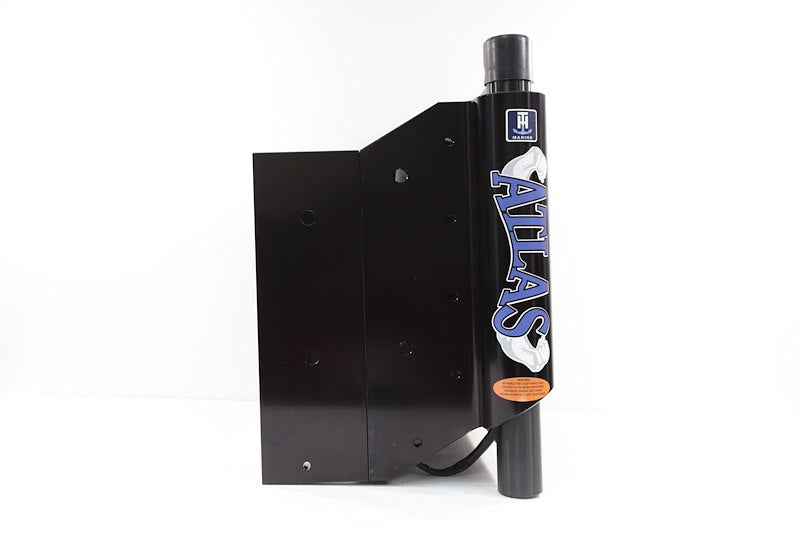

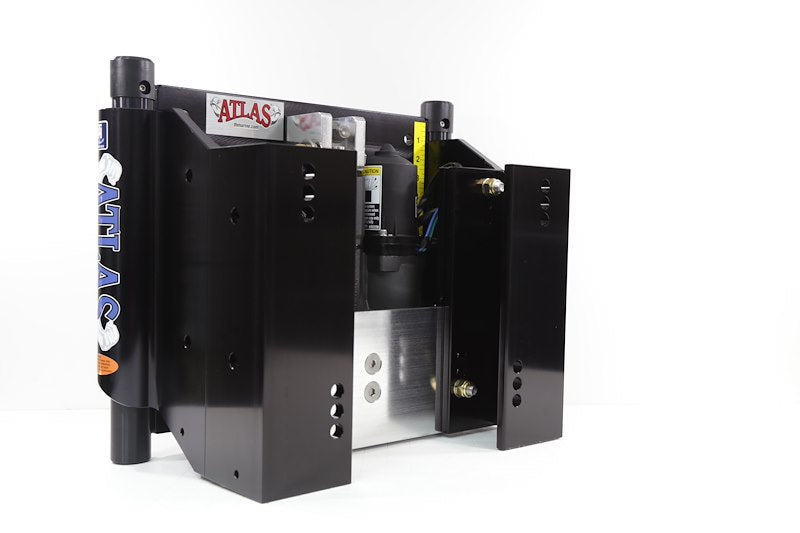

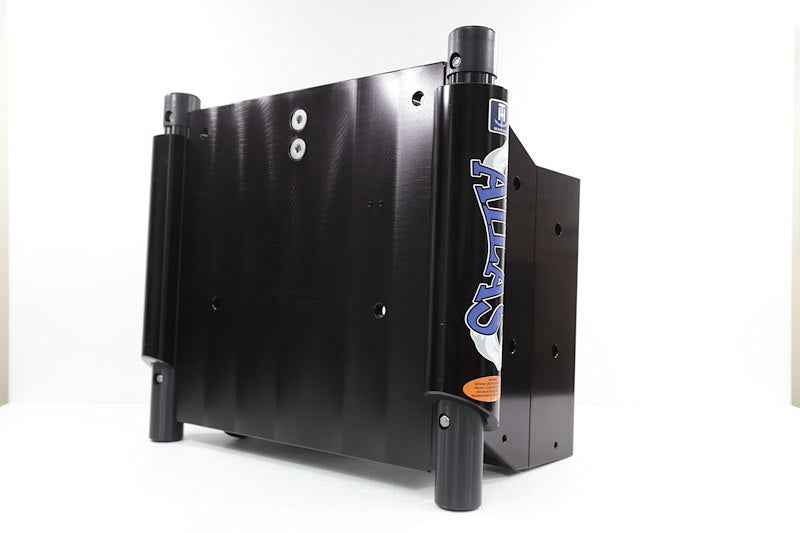

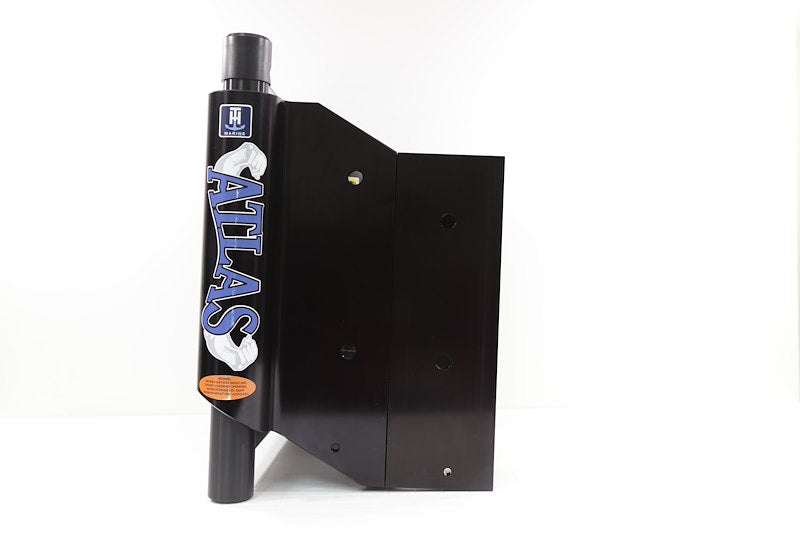

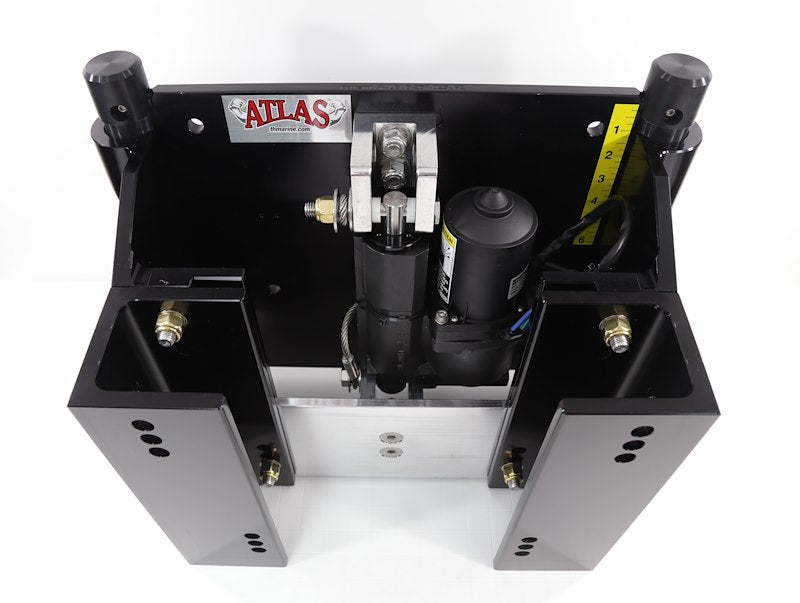

T-H Marine Black Atlas Hydraulic Jack Plate – 6" Setback – AHJ-6V-B-DP

The T-H Marine Black Atlas AHJ-6V-B-DP is a hydraulic outboard motor jack plate designed for engines up to 300 horsepower. Its integrated hydraulic system provides fast, precise height adjustment without requiring separate pumps or reservoirs inside the transom.

With a 6-inch setback, 5-3/4-inch hydraulic adjustment range and 8-second rise time, the Atlas allows the outboard height to be adjusted for changing water conditions and boat performance.

Features

• Brand new
• Hydraulic height adjustment
• 6" setback
• 5-3/4" hydraulic rise
• 8-1/4" to 9-3/4" total rise
• Rated for outboards up to 300 HP
• 625 lb weight capacity
• Approximately 8-second rise time
• Integrated hydraulic system
• One-piece design
• Rod-and-slot lifting system
• Black anodized aluminum construction
• Rocker switch included
• Relay harness included
• Limited lifetime frame and 3-year structural warranty

Specifications

• Manufacturer: T-H Marine
• Manufacturer Part Number: AHJ-6V-B-DP
• Series: Black Atlas
• Adjustment Type: Hydraulic
• Setback: 6"
• Adjustment Rise: 5-3/4"
• Total Rise: 8-1/4" to 9-3/4"
• Maximum Horsepower: 300 HP
• Weight Capacity: 625 lb
• Rise Time: 8 Seconds
• Material: Aluminum
• Finish: Anodized
• Color: Black
• Rocker Switch: Included
• Relay Harness: Included

Warranty

Limited Lifetime Frame Warranty / 3-Year Structural Warranty
