Brand New • Online Only

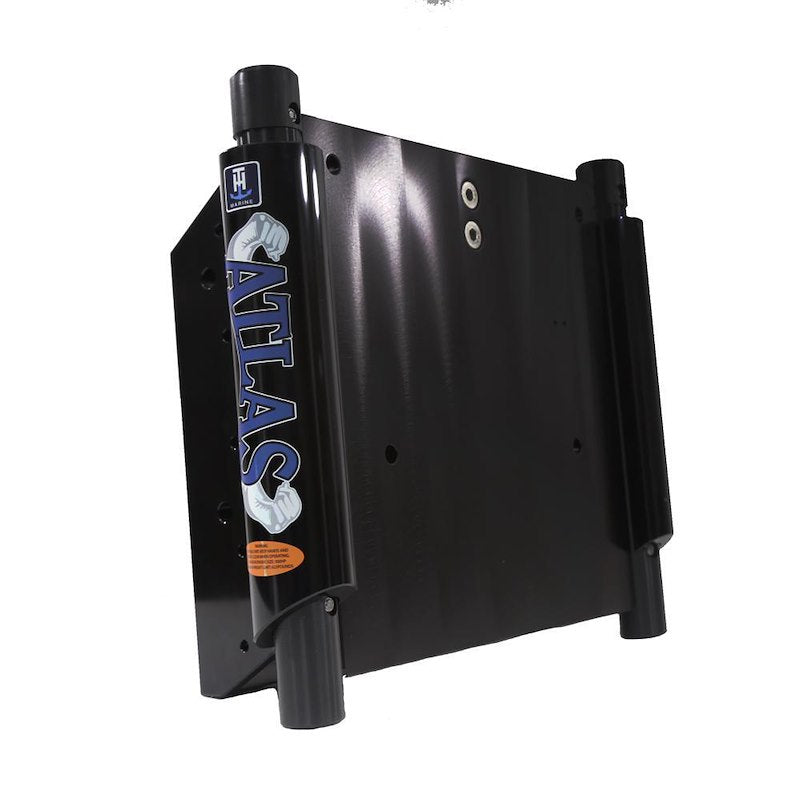

T-H Marine Black ATLAS Hydraulic Jack Plate 4" Setback – AHJ-4V-B-DP

Save $897.00
T-H MarineSKU: 11-1916

Price:
Sale price$2,631.00 Regular price$3,528.00

Shipping calculated at checkout

Stock:
Only 6 units left

Description

The T-H Marine Black ATLAS AHJ-4V-B-DP Hydraulic Jack Plate provides fast, precise outboard motor height adjustment for improved performance across varying water conditions. Its self-contained hydraulic system eliminates the need for separate pumps or reservoirs inside the transom.

Designed for demanding marine applications, it supports outboards up to 300 horsepower and 625 pounds and provides a 5-3/4-inch hydraulic rise with approximately 8-second bottom-to-top operation.

Features

  • Brand new
  • Hydraulic height adjustment
  • 4" setback
  • 5-3/4" hydraulic rise
  • 8-1/4" to 9-3/4" total rise
  • Supports outboards up to 300 HP
  • 625 lb weight capacity
  • Approximately 8-second rise time
  • Self-contained hydraulic system
  • One-piece design
  • Rod-and-slot lifting system
  • Black anodized aluminum construction
  • Rocker switch included
  • Relay harness included
  • Limited lifetime frame warranty
  • 3-year structural warranty

Specifications

  • Manufacturer: T-H Marine
  • Manufacturer Part Number: AHJ-4V-B-DP
  • Series: Black ATLAS
  • Adjustment Type: Hydraulic
  • Setback: 4"
  • Adjustment Rise: 5-3/4"
  • Total Rise: 8-1/4" to 9-3/4"
  • Maximum Horsepower: 300 HP
  • Weight Capacity: 625 lb
  • Rise Time: Approximately 8 Seconds
  • Material: Aluminum
  • Finish: Anodized
  • Color: Black

What's Included

  • Hydraulic jack plate
  • Rocker switch
  • Relay harness
  • Owner's manual

Mounting hardware is not included.

Warranty

Limited Lifetime Frame Warranty and 3-Year Structural Warranty
