Description

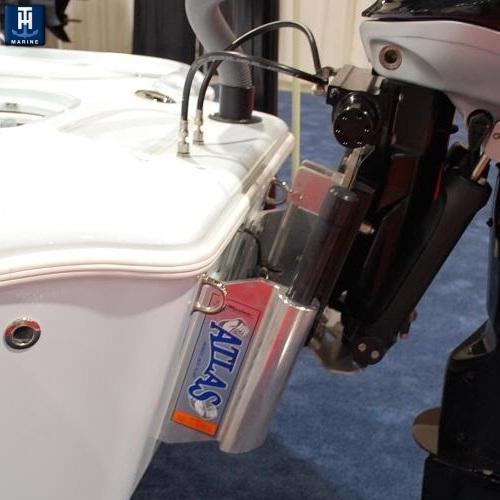

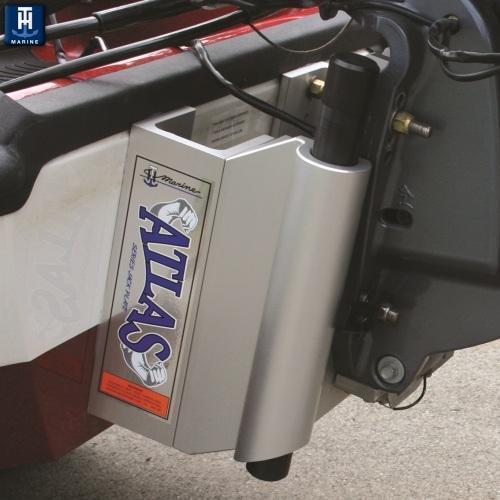

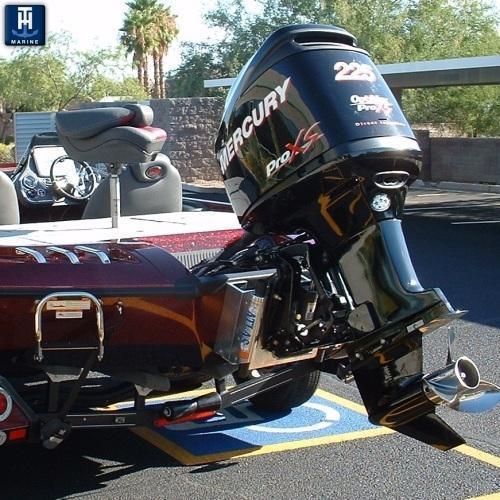

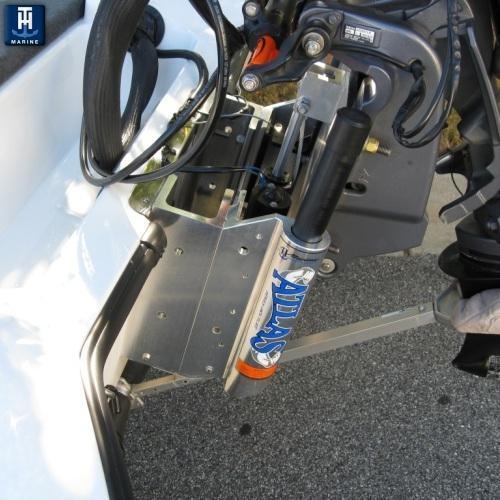

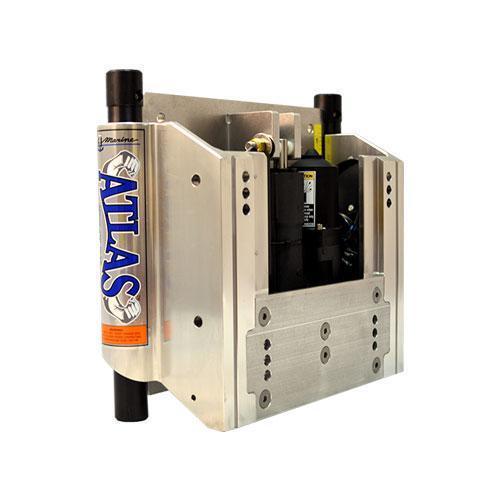

The T-H Marine ATLAS AHJ-6V-DP Hydraulic Jack Plate is engineered for high-performance outboard applications, providing fast hydraulic height adjustment for engines up to 300 horsepower and 625 pounds. With a 6-inch setback and 5-3/4 inches of hydraulic travel, it allows the outboard height to be adjusted for changing water conditions, performance requirements and operating situations.
Built from polished aluminum, the ATLAS uses T-H Marine's rod-and-slot lifting design with engineered polymer rods for smooth, reliable operation. Its self-contained hydraulic system can travel from bottom to top in less than 8 seconds.
Features
- ATLAS Series hydraulic outboard jack plate
- 6-inch setback
- 5-3/4-inch hydraulic adjustment range
- 8-1/4 to 9-3/4-inch total rise
- Rated for outboards up to 300 HP
- 625-pound maximum weight capacity
- Bottom-to-top travel in less than 8 seconds
- Self-contained hydraulic lifting system
- Engineered polymer rod-and-slot lifting design
- Heavy-duty construction suitable for large four-stroke outboards
- Polished aluminum construction
- Rocker switch included
- Relay harness included
- Limited lifetime frame warranty
- 3-year structural warranty
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: AHJ-6V-DP
- Series: ATLAS
- Product Type: Hydraulic Outboard Motor Jack Plate
- Adjustment Type: Hydraulic
- Setback: 6 Inches
- Hydraulic Rise: 5-3/4 Inches
- Total Rise: 8-1/4 to 9-3/4 Inches
- Maximum Horsepower: 300 HP
- Maximum Weight Capacity: 625 lb
- Rise Time: Approximately 8 Seconds
- Material: Aluminum
- Finish: Polished
- Color: Silver
- Rocker Switch: Included
- Relay Harness: Included
What's Included
- T-H Marine ATLAS hydraulic jack plate
- Rocker switch
- Relay harness
- Owner's manual
Mounting hardware is not included.
