Brand New • Online Only

T-H Marine ATLAS AHJ-4V-DP Hydraulic Jack Plate – 4" Setback, 300 HP

Save $846.00
T-H MarineSKU: 11-1917

Price:
Sale price$2,478.00 Regular price$3,324.00

Shipping calculated at checkout

Stock:
In stock (14 units), ready to be shipped

Description

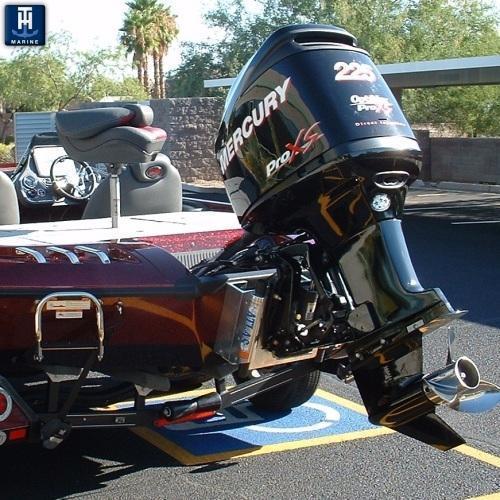

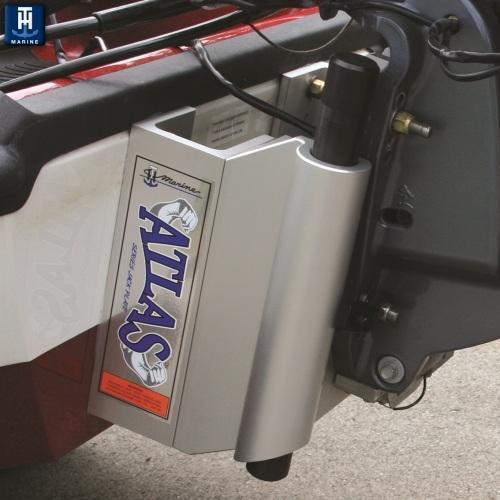

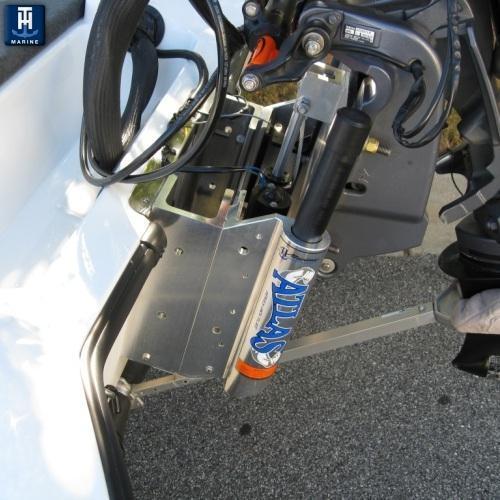

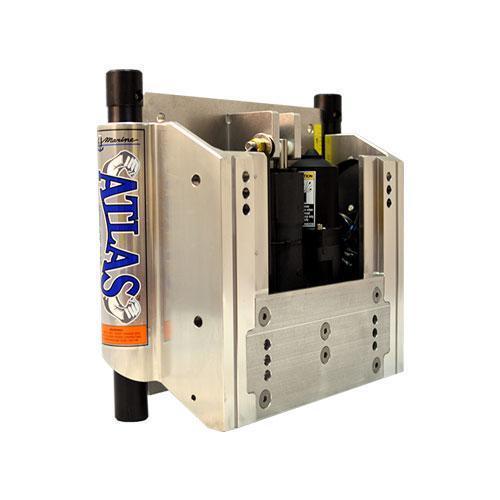

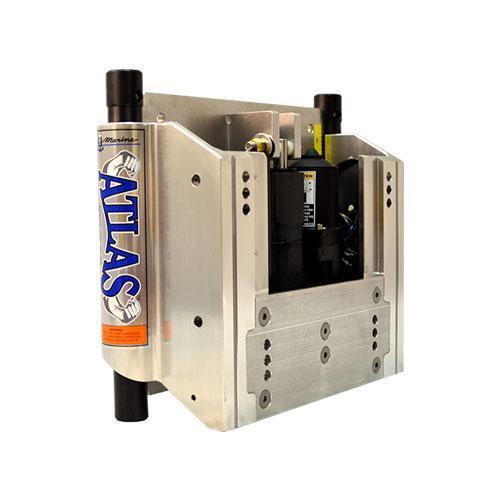

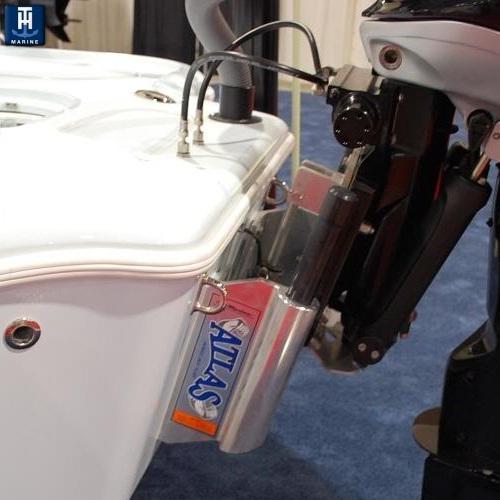

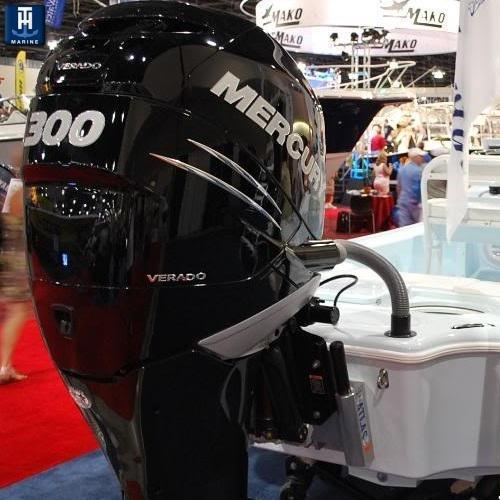

The T-H Marine ATLAS AHJ-4V-DP Hydraulic Jack Plate is a heavy-duty hydraulic outboard jack plate engineered for high-horsepower marine applications. With a 4-inch setback, 5-3/4-inch hydraulic adjustment rise, and support for outboard engines up to 300 horsepower and 625 pounds, it provides fast and convenient engine-height adjustment.

The ATLAS uses T-H Marine's engineered polymer rod-and-slot lifting design with self-contained hydraulics for smooth, dependable operation. The system can travel from bottom to top in approximately eight seconds and includes the relay harness and rocker switch required for operation.

Features

  • Hydraulic outboard motor jack plate
  • 4-inch setback
  • 5-3/4-inch hydraulic adjustment rise
  • 8-1/4 to 9-3/4-inch total rise
  • Rated for outboard engines up to 300 horsepower
  • 625-pound maximum weight capacity
  • Approximately 8-second rise time
  • Engineered polymer rod-and-slot lifting system
  • Self-contained hydraulic operation
  • Designed for heavy and high-powered outboard engines
  • Suitable for large four-stroke outboards
  • Polished aluminum construction
  • Relay harness included
  • Rocker switch included
  • Limited lifetime frame warranty
  • 3-year structural warranty

Specifications

  • Manufacturer: T-H Marine
  • Manufacturer Part Number: AHJ-4V-DP
  • NTP Part Number: 11-1917
  • Series: ATLAS
  • Product Type: Outboard Motor Jack Plate
  • Adjustment Type: Hydraulic
  • Setback: 4 Inches
  • Adjustment Rise: 5-3/4 Inches
  • Total Rise: 8-1/4 to 9-3/4 Inches
  • Maximum Horsepower: 300 HP
  • Maximum Weight Capacity: 625 lb
  • Rise Time: 8 Seconds
  • Material: Aluminum
  • Finish: Polished
  • Color: Silver
  • Rocker Switch Included: Yes
  • Relay Harness Included: Yes

What's Included

  • T-H Marine ATLAS hydraulic jack plate
  • Rocker switch
  • Relay harness
  • Owner's manual

Mounting hardware is not included.
