Brand New • Online Only

T-H Marine AHJM-4-DP Hydraulic Outboard Jack Plate - 4 in Setback

Save $579.00
T-H MarineSKU: 11-1932

Price:
Sale price$1,696.00 Regular price$2,275.00

Shipping calculated at checkout

Stock:
In stock (98 units), ready to be shipped

Description

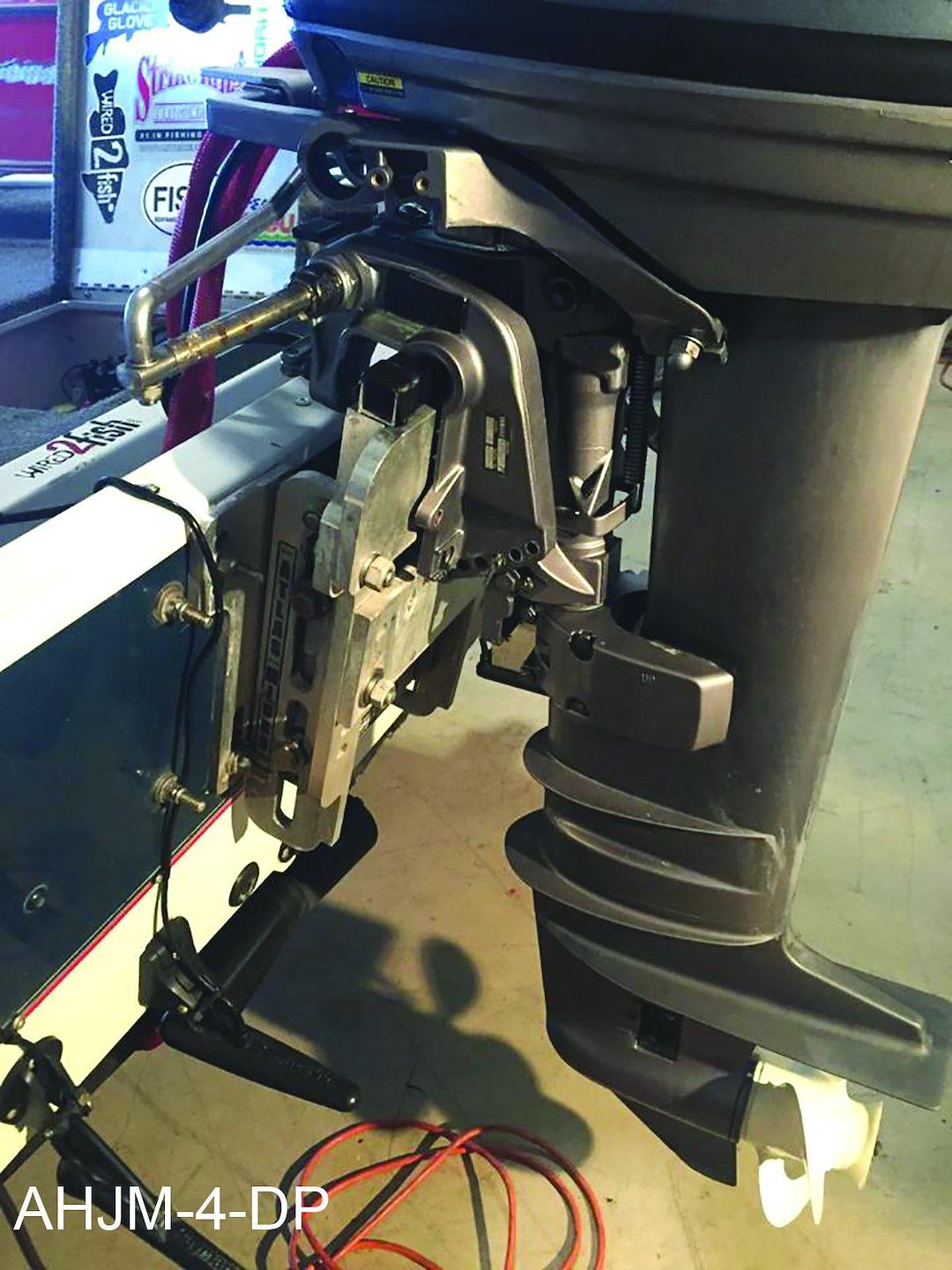

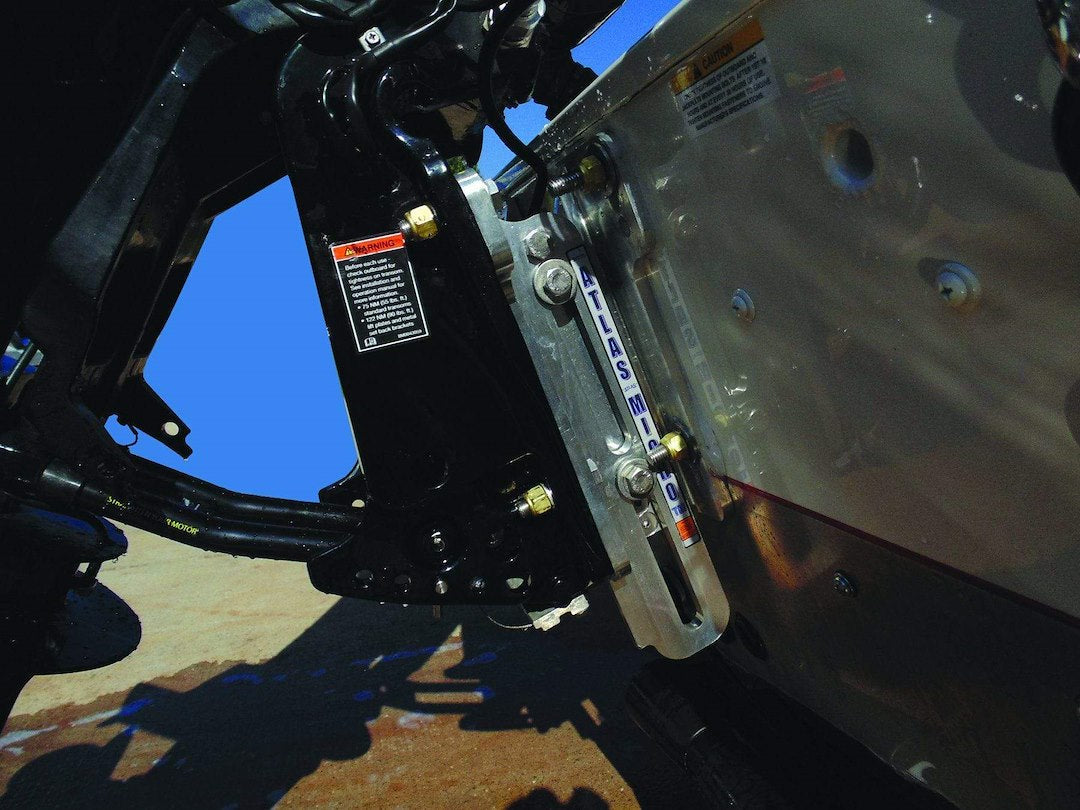

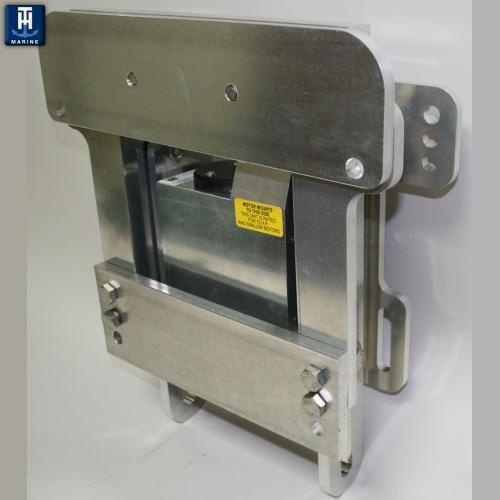

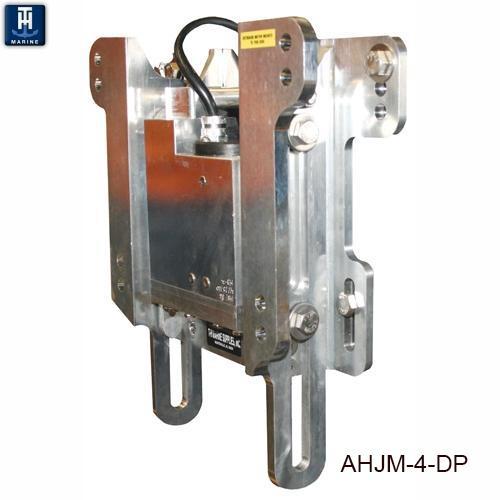

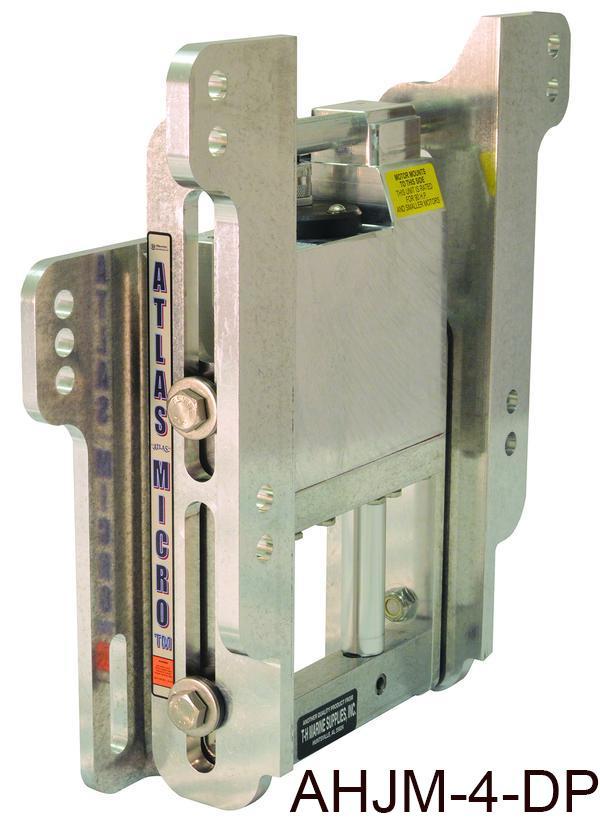

T-H Marine AHJM-4-DP is an aluminum outboard jack plate with a 4-inch setback and 5-inch hydraulic rise. The listed 115 HP application suits shallow-water skiffs and flats boats; check motor weight and mounting requirements.

Specifications

Brand T-H Marine
Manufacturer Part Number AHJM-4-DP
Setback 4 in
Hydraulic Rise 5 in
Total Rise 8-1/2 in
Horsepower 115 Horsepower
Adjustment 3-1/2 in Vertical
Finish Polished
Color Silver
Material Aluminum
With Rocker Switch No
With Relay Harness No

Key Features

  • Lightweight.
  • Suitable for Shallow Water Skiffs and Flat Boats.
  • Fast Actuator - 8 Seconds Top to Bottom.
  • 115 Maximum Horsepower.
  • Limited Lifetime Warranty.
  • For Small Outboards - Max Weight 425 lb and Max Horsepower 115 Horse Power.
  • Get Out of Trouble Fast – Lifts in 8 Seconds Lightweight – Only 23 lb Fish “Skinny Water” with Confidence Self Contained Hydraulics Maximum outboard dry weight: 425 lb Maximum outboard horsepower: 115 Horse Power.

Notes

  • Clamp-On Motor Adapter allows you to mount smaller engines with clamp-on brackets to the Atlas Micro Jacker, since they do not mount with bolts on the standard BIA engine hole pattern.
