Brand New • Online Only

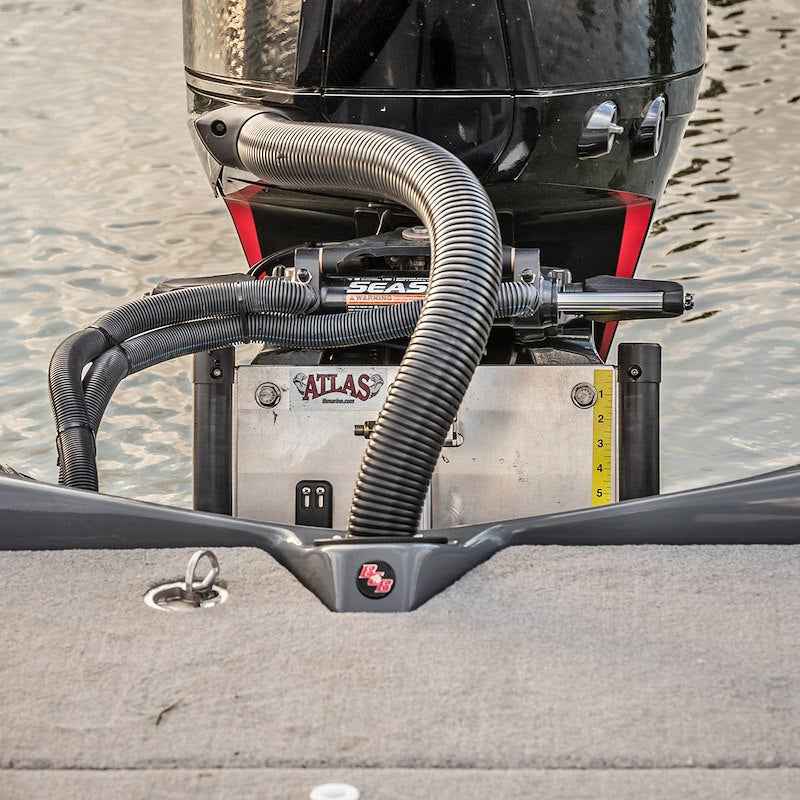

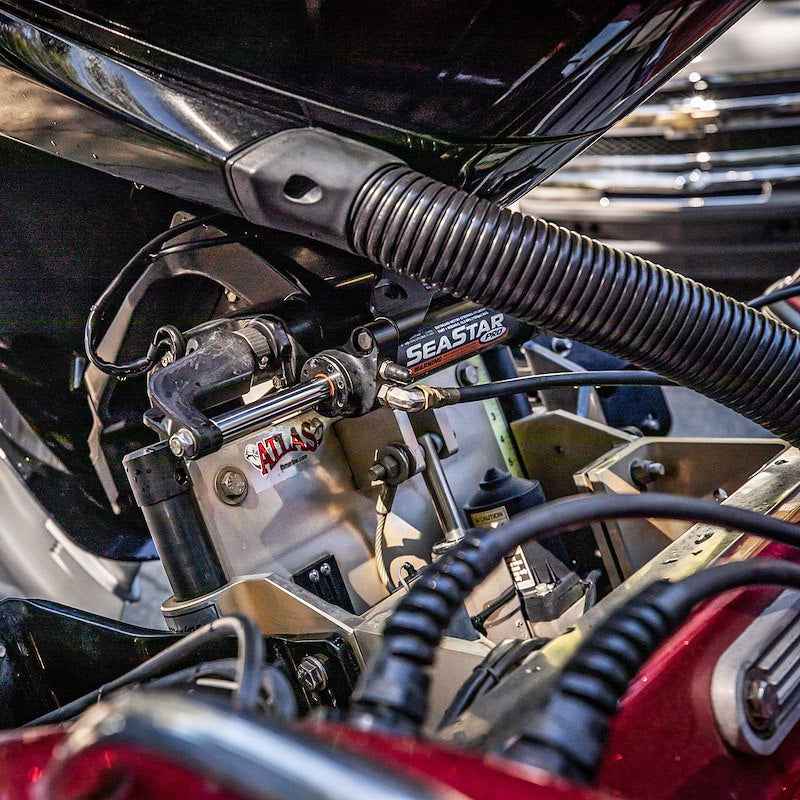

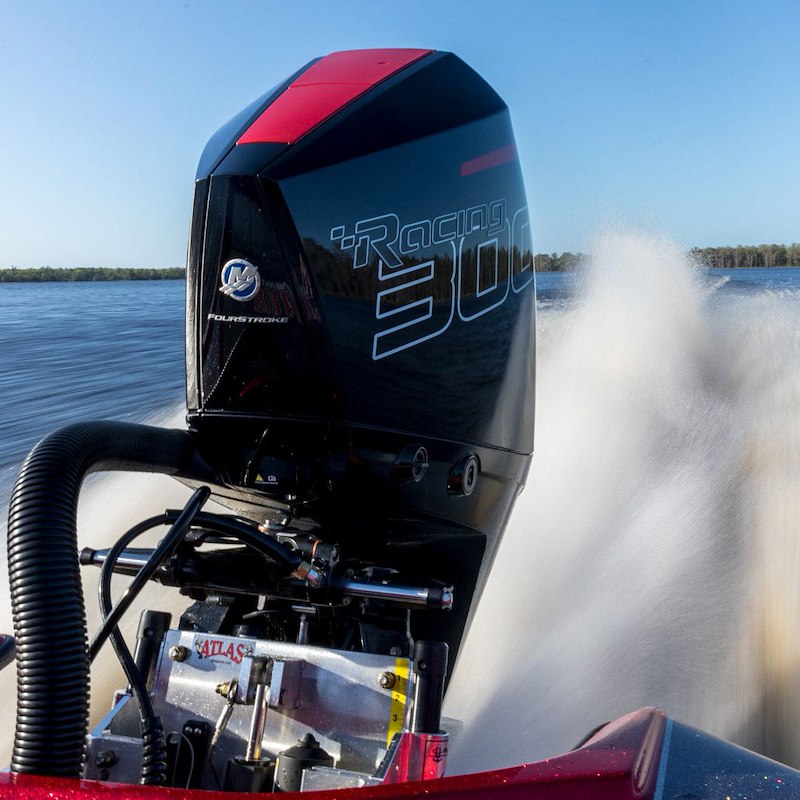

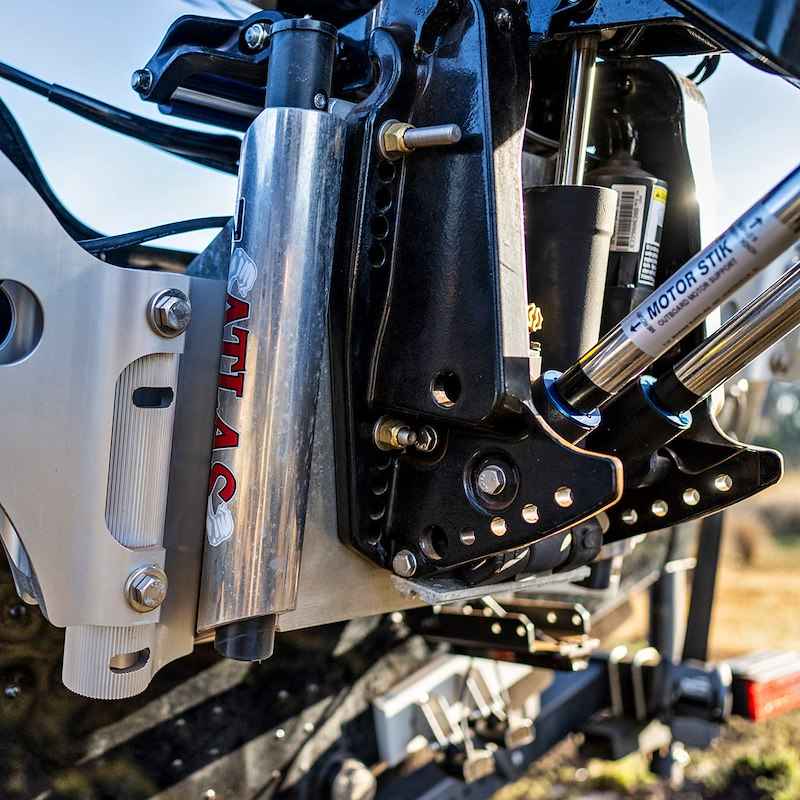

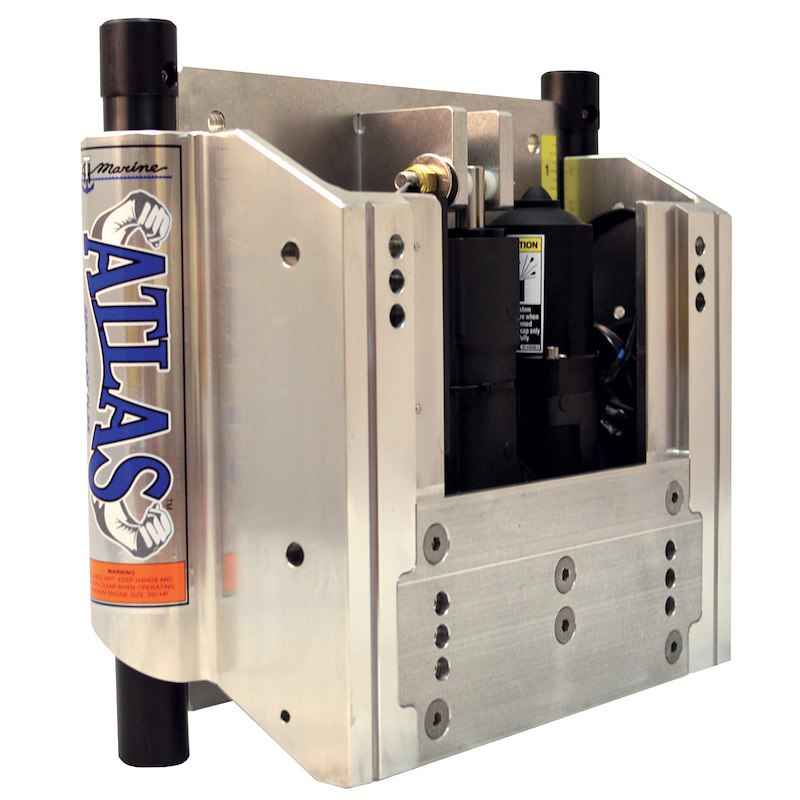

T-H Marine AHJ-10VHD-DP Atlas Heavy Duty Hydraulic Jack Plate 10 Inch Setback

Save $1,021.00
T-H MarineSKU: 11-1911

Price:
Sale price$2,994.00 Regular price$4,015.00

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Upgrade your boat with the T-H Marine AHJ-10VHD-DP Atlas™ Heavy Duty Hydraulic Jack Plate, engineered for today's high-performance outboard engines. This brand new hydraulic jack plate features a 10-inch setback and is designed to support outboards up to 450 horsepower and 625 pounds, delivering improved holeshot, higher top-end speeds, better fuel efficiency, and enhanced shallow-water performance.

The Atlas™ Heavy Duty Series is the world's best-selling hydraulic jack plate, trusted by professional anglers and factory-installed by more boat manufacturers than any other hydraulic jack plate. Its advanced one-piece hydraulic design eliminates the need for external pumps or reservoirs, while the fast-acting hydraulic system raises the engine through its full travel in approximately 8 seconds for precise adjustment in changing water conditions.

Constructed from high-strength polished aluminum, the Atlas™ Heavy Duty Jack Plate is built to withstand the demands of larger, more powerful outboards while providing years of dependable performance.

Features

  • Genuine T-H Marine AHJ-10VHD-DP OEM product
  • Brand new
  • Atlas™ Heavy Duty Series hydraulic jack plate
  • Heavy-duty design for high-horsepower outboards
  • Hydraulic height adjustment
  • One-piece integrated hydraulic construction
  • No external hydraulic pump or reservoir required
  • Supports engines up to 450 horsepower
  • Supports engine weights up to 625 pounds
  • Approximately 8-second full lift time
  • Factory installed by more boat manufacturers than any other hydraulic jack plate
  • Used by professional anglers worldwide
  • Field-serviceable actuator replacement
  • Made in the USA
  • Includes rocker switch and relay harness

Specifications

  • Manufacturer Part Number: AHJ-10VHD-DP
  • NTP Part Number: 11-1911
  • Series: Atlas™ Heavy Duty
  • Product Type: Hydraulic Outboard Motor Jack Plate
  • Adjustment Type: Hydraulic
  • Setback: 10 Inches
  • Hydraulic Rise: 5-3/4 Inches
  • Total Vertical Travel: 8-1/4 to 9-3/4 Inches
  • Maximum Horsepower: 450 HP
  • Maximum Weight Capacity: 625 Pounds
  • Rise Time: Approximately 8 Seconds
  • Material: Aluminum
  • Finish: Polished
  • Color: Silver
  • Rocker Switch Included: Yes
  • Relay Harness Included: Yes

What's Included

  • Atlas™ Heavy Duty Hydraulic Jack Plate
  • Owner's Manual
  • Rocker Switch
  • Relay Wiring Harness

Note: Mounting hardware is not included.

Compatibility

Compatible with outboard-powered boats using engines up to 450 horsepower and weighing up to 625 pounds.

Vehicle Notes

  • Universal marine application
  • Suitable for many bass boats, bay boats, flats boats, offshore fishing boats, and other outboard-powered vessels
  • Heavy-duty construction for larger, high-performance outboards
  • Hydraulic system is fully integrated into the jack plate
  • No external hydraulic pump or reservoir required
  • Mounting hardware sold separately

Important: Verify your boat's transom dimensions, outboard bolt pattern, engine weight, horsepower rating, and manufacturer part number AHJ-10VHD-DP before ordering.

Warranty

  • Limited Lifetime Frame Warranty
  • Limited 3-Year Structural Warranty
