Description

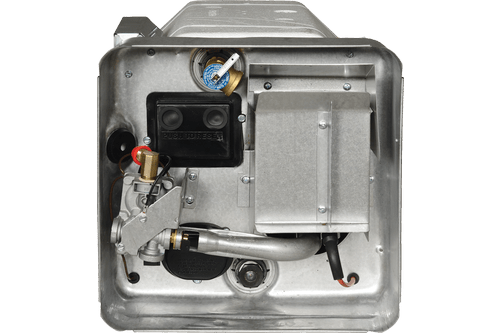

The Suburban SW10D 10-Gallon RV Propane Water Heater (MPN: 5242A) is a brand new, gas-only water heater with Direct Spark Ignition (DSI), engineered for dependable hot water in RVs, motorhomes, and mobile living applications.
This model uses a durable porcelain-lined steel tank designed to perform like a residential water heater and is protected by a replaceable anode rod, which both reduces corrosion and serves as a convenient drain. Suburban’s exclusive flue tube design slows combustion to maximize heat transfer into the water, improving heating efficiency.
The Direct Spark Ignition system eliminates the pilot light, delivering quick, automatic ignition when hot water is needed. A repositionable module board allows greater flexibility during installation.
Manufacturer Part Number (MPN): 5242A
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Suburban |
| Model | SW10D |
| Part Number (MPN) | 5242A |
| Tank Capacity | 10 Gallons |
| Fuel Type | Propane (LP Gas) |
| Ignition Type | Direct Spark Ignition (DSI) |
| Gas Input | 12,000 BTU/h |
| Optional Electric Element Input | 1,440 W (optional accessory) |
| Recovery Rate – Gas Only | 10.1 Gallons per Hour |
| Recovery Rate – Electric Only | 6.1 Gallons per Hour |
| Overall Dimensions (W x H x D) | 16.22" x 16.22" x 20.50" |
| Cut-Out Dimensions (W x H x D) | 16.38" x 16.38" x 20.50" |
| Tank Construction | Porcelain-lined steel |
| Anode Rod | Yes – replaceable / acts as drain |
| Application | RV and mobile living |
| Warranty | Limited 2-year parts warranty / Limited 3-year tank warranty |
| Condition | Brand new |
Features & Benefits
-
10-gallon capacity for extended hot water use
-
Direct Spark Ignition (DSI) – no standing pilot light
-
Porcelain-lined steel tank for long-term durability
-
Replaceable anode rod protects the tank and serves as a drain
-
Optional electric heating element allows use of shore power or generator power (sold separately)
-
Exclusive Suburban flue tube design improves heat transfer efficiency
-
Repositionable control module board for flexible installation
-
Designed for reliable RV and mobile applications
What’s Not Included
-
Electric heating element (optional accessory)
-
Access door
-
Mounting hardware
-
Switch
-
Indicator light
-
Insulation
Important Installation Note
Please measure your installation opening and available depth before ordering to confirm proper fitment.
Professional installation is recommended for LP gas appliances.
Suburban SW10D Replacement Model Check
Suburban SW10D (manufacturer part 5242A) is the 10-gallon, 12,000 BTU/h LP-gas Direct Spark Ignition version. The SW10DE (5243A) includes a factory electric-heating element, while SW10DEL (5244A) adds the separate 12-volt relay control arrangement. These are distinct factory configurations and should not be ordered interchangeably by model name alone. Confirm the original heater model, gas and control connections and the required 16.38 x 16.38 x 20.50-inch installation cutout before replacement. Optional electrical heating equipment referred to above is not included in the factory SW10D gas-only configuration.
