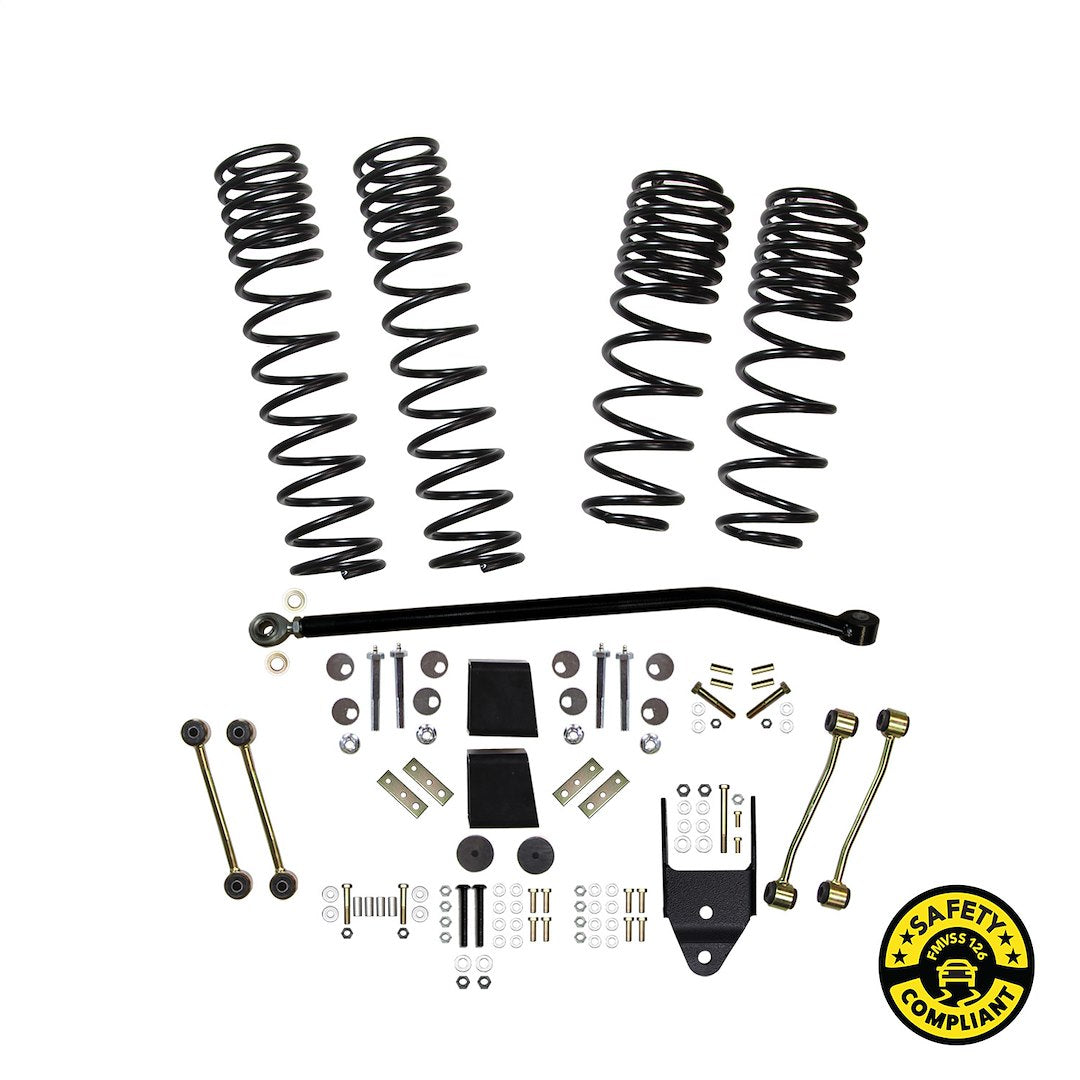

Skyjacker JL40BLT Component Box for JL 4-Door Non-Rubicon

The JL40BLT serves selected four-door non-Rubicon JL applications in the JL40B system, without shocks.

Features

• More Aggressive Off-Road Stance With Comfort And Stability
• Specifically Engineered Progressive Variable Rate Springs
• Flex Stage Or Ride Stage Dual Rate Long Travel Coil Springs
• Extended Length Sway Bar End Links Allow Full Articulation
• Track Bar Correction Centers Axle Under Vehicle Properly
• Delivers A Comfortable Ride And Flex For Increased Articulation
• Allows Full Articulation As Suspension Drops: Full Droop
• Distinctive Improved Suspension Handling Characteristics
• Engineered To Maintain Proper OEM Suspension Geometry
• Limited Lifetime Warranty

Details

• The first flex-rate stage expands at full droop to keep coils seated in the upper mounts and tires in contact with terrain. A second ride-rate stage engages only after compression beyond the flex stage. Rear coils are side specific to preserve Wrangler handling.
• Front and rear bump-stop spacers bolt to the axle bump pads to limit travel. Extended sway-bar end links allow full-droop articulation and use preinstalled heavy-duty OEM-style rubber bushings. Correct suspension geometry keeps ESC operating within factory parameters.
• The adjustable front track bar has a preinstalled heavy-duty OEM-style rubber bushing, adjustable 3/4 Inch heavy-duty rod end, jam nut and alignment bushings. A heavy-duty rear upper track-bar bracket centers the axle under the vehicle.
• The JL40BLT box is a component of kit JL40B for selected JL four-door non-Rubicon applications. Shocks are excluded.
• No shocks are included. Kit JL40B uses this box on selected four-door, non-Rubicon JL configurations.
