Brand New • Online Only

Scanstrut LMB-F1 Self-Levelling Radar Antenna Mount – 2.6M

Save $861.00
ScanstrutSKU: 09-9868

Price:
Sale price$2,525.00 Regular price$3,386.00

Shipping calculated at checkout

Stock:
Only 3 units left

Description

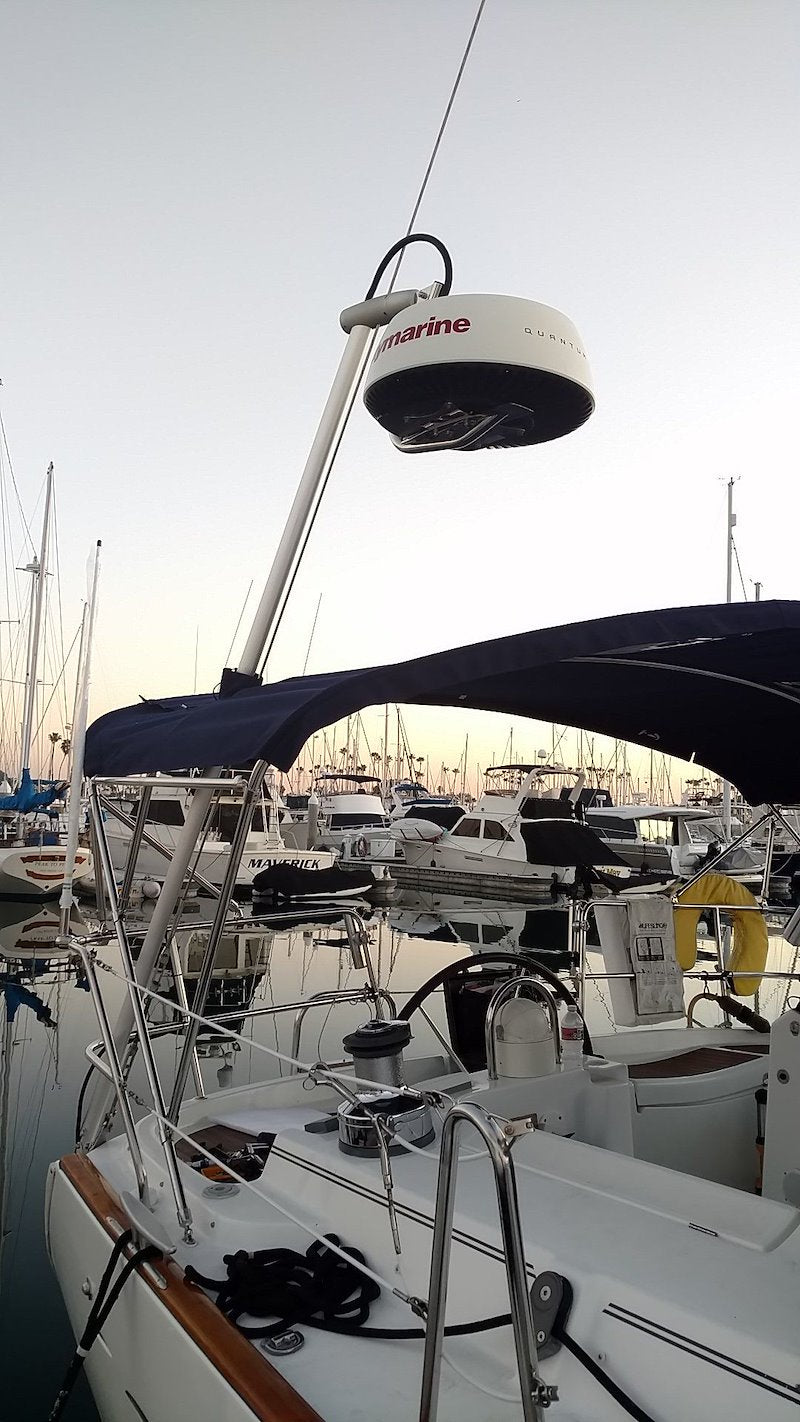

The Scanstrut LMB-F1 is a self-levelling marine radar antenna mount designed to position compatible radar equipment high above the deck while helping maintain an effective radar operating angle as the vessel heels. This forward-facing, 2.6-meter mounting system installs forward of the backstay, helping keep the radar clear of interference while leaving the deck relatively unobstructed.

A hydraulically damped levelling mechanism reacts to significant changes in the boat's heel angle and operates without electrical power or routine maintenance.

Features

  • Brand new
  • Self-levelling radar antenna mounting system
  • Forward-facing configuration
  • 2.6-meter (approximately 102.36") height
  • Deck, transom or chainplate mounting
  • Designed to mount forward of the backstay
  • Hydraulic damping responds to changes in vessel heel angle
  • Maintenance-free levelling system
  • No electrical power required for levelling
  • Marine-grade aluminum construction
  • Stainless steel radome cradle
  • Fine adjustment for backstay angle
  • High-strength universal mounting base
  • Base design eliminates loading on the backstay
  • Suitable for adjustable and split backstays
  • Nylon backstay bushing included
  • Allows cable tension adjustment
  • Limited 3-year warranty

Radar Compatibility

Designed for compatible radar antennas from manufacturers including:

  • Garmin
  • Raymarine
  • B&G
  • Humminbird
  • Lowrance
  • Nobeltec
  • Sitex
  • Simrad

Specific radar model compatibility should be verified against Scanstrut's compatibility documentation before ordering.

Specifications

  • Manufacturer: Scanstrut
  • Manufacturer Part Number: LMB-F1
  • Product Type: Self-Levelling Radar Antenna Mount
  • Orientation: Forward Facing
  • Mounting Type: Deck / Transom / Chainplate
  • Height: 2.6 m / 102.36"
  • Material: Aluminum
  • Color: Gray
  • Levelling System: Hydraulic
  • Power Required for Levelling: No
  • Backstay Bushing: Included
  • Backstay Bushing Material: Nylon

Installation

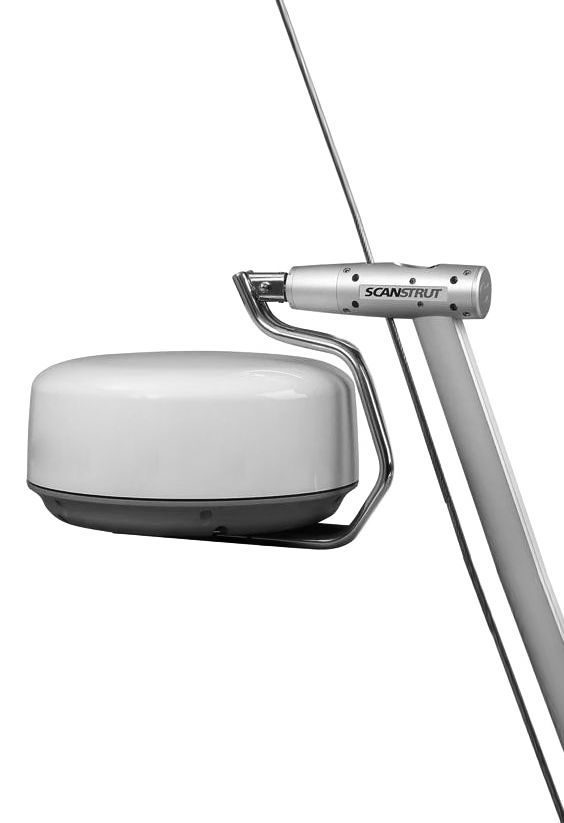

The LMB-F1 uses a dedicated mounting pole and high-strength universal base to position the radar forward of the vessel's backstay. Its stainless steel radome cradle provides fine adjustment for the backstay angle, and the supplied nylon backstay bushing clamps around the backstay while allowing cable tension to be adjusted.

Because radar mounting patterns and dimensions vary between models, verify the exact radar antenna against the manufacturer's compatibility documentation before ordering.

Warranty

Limited 3-Year Warranty
