Brand New • Online Only

Scanstrut LMB-A1 Self-Levelling Radar Antenna Mount – 2.6M

Save $861.00
ScanstrutSKU: 09-9893

Price:
Sale price$2,525.00 Regular price$3,386.00

Shipping calculated at checkout

Stock:
Only 7 units left

Description

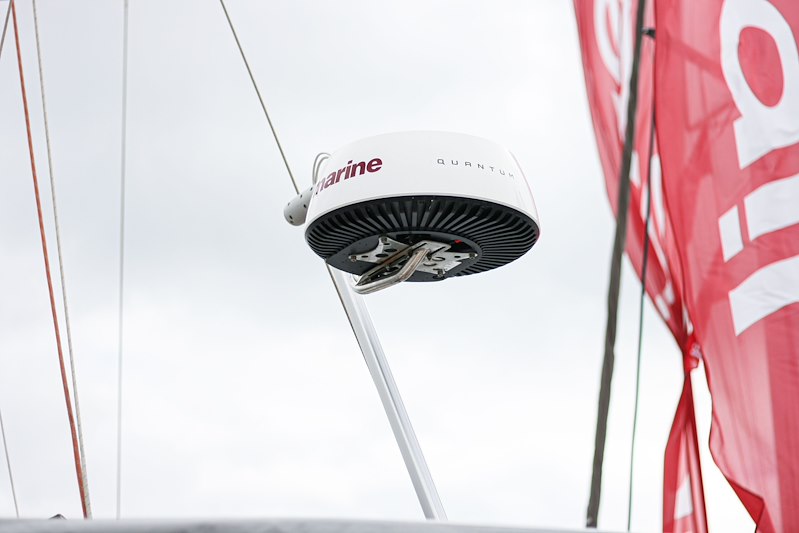

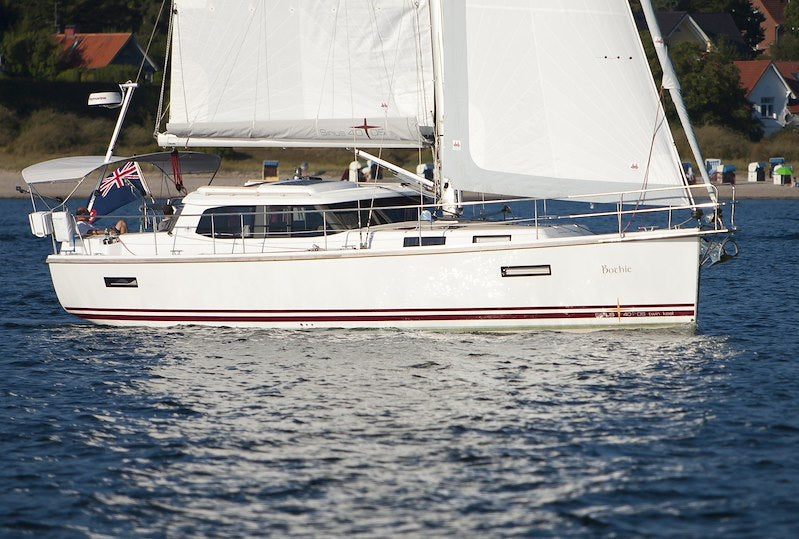

The Scanstrut LMB-A1 is a self-levelling marine radar antenna mount designed to position compatible radar equipment high above the deck while maintaining a more effective radar operating angle as the vessel heels. The 2.6-meter aluminum mounting system installs forward of the backstay, helping keep the radar clear of interference while minimizing deck obstruction.

Its hydraulically damped levelling mechanism reacts to significant changes in vessel heel angle and operates without electrical power or routine maintenance.

Features

  • Brand new
  • Self-levelling radar antenna mounting system
  • 2.6-meter (approximately 102.36") height
  • Aft-facing configuration
  • Deck, transom or chainplate mounting

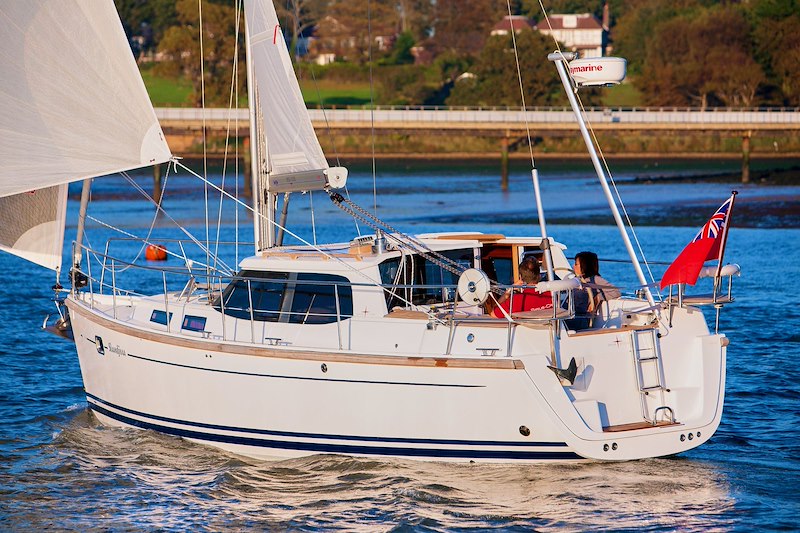

  • Positions radar forward of the backstay
  • Hydraulic damping system responds to changes in boat heel angle
  • Maintenance-free levelling mechanism
  • No electrical power required for self-levelling operation
  • Marine-grade aluminum mounting pole

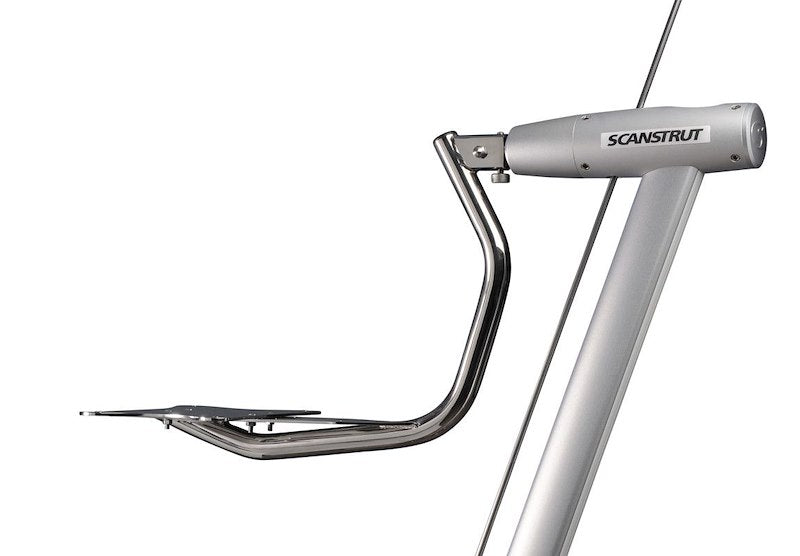

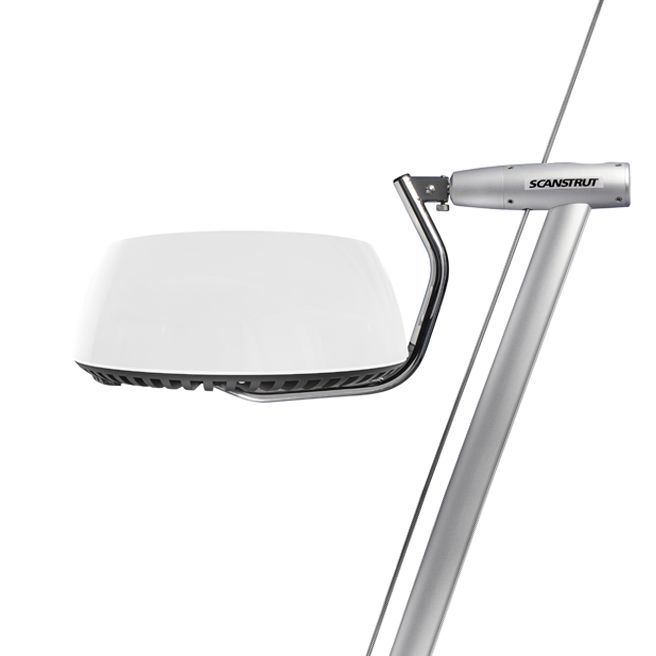

  • Stainless steel radome cradle
  • Fine adjustment for backstay angle
  • High-strength universal mounting base
  • Base design minimizes loading on the backstay
  • Suitable for adjustable and split backstays
  • Nylon backstay bushing included
  • Designed to position radar higher for improved installation and performance
  • Limited 3-year warranty

Radar Compatibility

Designed for compatible radar antennas from manufacturers including:

  • Garmin
  • Raymarine
  • B&G
  • Humminbird
  • Lowrance
  • Nobeltec
  • Sitex
  • Simrad

Specific radar model compatibility should be verified against Scanstrut's compatibility documentation before ordering.

Specifications

  • Manufacturer: Scanstrut
  • Manufacturer Part Number: LMB-A1
  • Product Type: Self-Levelling Radar Antenna Mount
  • Orientation: Aft Facing
  • Mounting Type: Deck / Transom / Chainplate
  • Height: 2.6 m / 102.36"
  • Material: Aluminum
  • Color: Gray
  • Levelling System: Hydraulic
  • Power Required for Levelling: No
  • Backstay Bushing: Included
  • Backstay Bushing Material: Nylon

Installation

The LMB-A1 uses a dedicated mounting pole and universal base to position the radar forward of the vessel's backstay. The stainless radome cradle provides adjustment for different backstay angles, while the supplied nylon bushing clamps around the backstay and allows cable tension adjustment.

Because radar model dimensions and mounting patterns vary, confirm the specific antenna is listed as compatible before installation.

Warranty

Limited 3-Year Warranty
