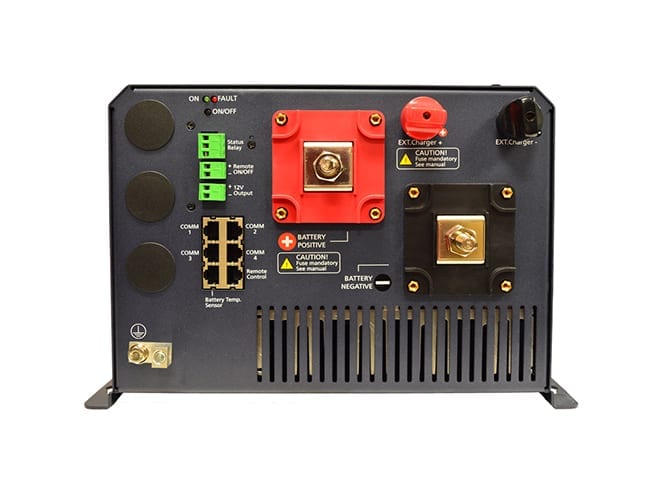

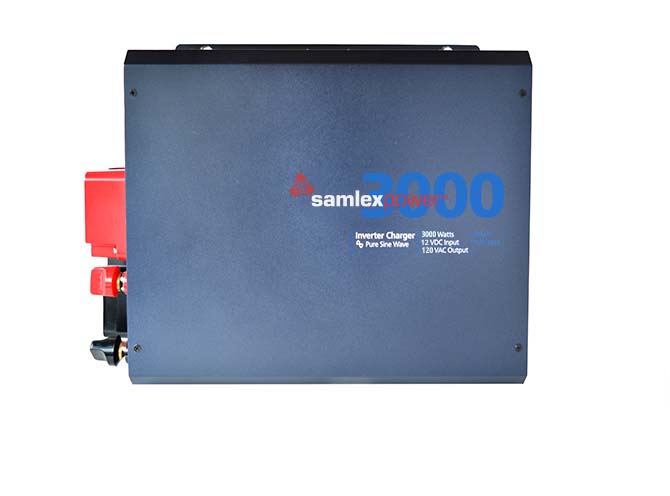

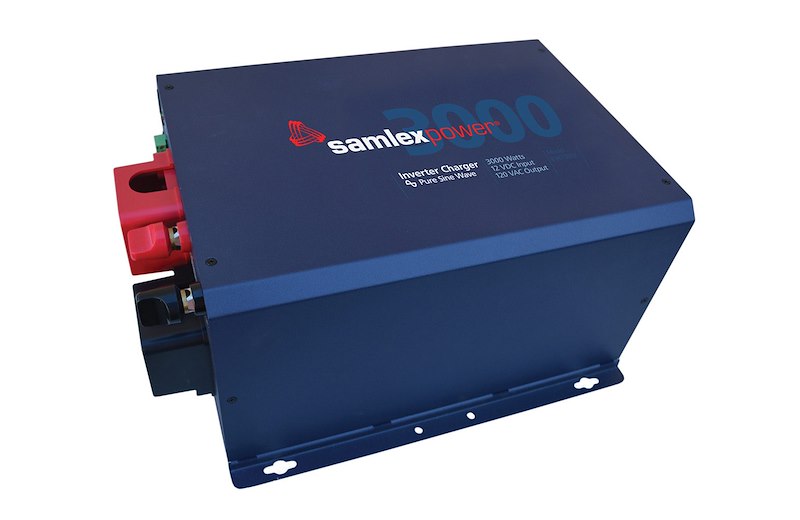

Samlex EVO-3012 Evolution 3000W Pure Sine Wave Inverter/Charger

Save $1,228.00
Samlex AmericaSKU: 19-3073

Price:
Sale price$3,600.00 Regular price$4,828.00

Shipping calculated at checkout

Stock:
Only 2 units left

Description

The Samlex America EVO-3012 Evolution Series is a 3000-watt pure sine wave inverter/charger designed for RVs, boats, cabins, specialty vehicles, backup power, and off-grid systems. It combines a high-capacity inverter, 130-amp adaptive battery charger, and 70-amp transfer relay into one integrated power system.

Its 3X surge capability provides up to 9000 watts of peak power, making it well suited for demanding startup loads.

Features

  • Brand New
  • 3000-watt continuous pure sine wave output
  • Up to 9000-watt peak output
  • 9–17V DC input
  • 120V AC output
  • 25-amp continuous AC output
  • 130-amp adaptive battery charger
  • 70-amp transfer relay
  • Two separate AC inputs
  • Generator-specific input tolerates greater waveform distortion
  • Zero transfer time when switching from inverter to grid power
  • 3-stage or 4-stage adaptive battery charging with equalization
  • Solar charge controller integration through external DC input
  • Online Mode can prioritize battery/inverter power over grid power
  • Programmable generator-start capability using status relay
  • Remote On/Off capable
  • Advanced fault and protection monitoring
  • Programmable operating parameters
  • Marine suitable
  • Limited 2-year warranty

Specifications

  • Manufacturer: Samlex America
  • Manufacturer Part Number: EVO-3012
  • Series: Evolution
  • Type: Pure Sine Wave Inverter / Charger
  • Continuous Output: 3000 Watts
  • Peak Output: 9000 Watts
  • Input Voltage: 9–17V DC
  • Output Voltage: 120V AC
  • Output Current: 25 Amps
  • Efficiency: 90%
  • Battery Charger: 130 Amps
  • Transfer Relay: 70 Amps
  • AC Outlets: 1
  • Remote On/Off: Yes
  • Dimensions: 16.77" L x 12.79" W x 8.15" H

Intelligent Power Management

The EVO-3012 continuously monitors multiple operating conditions to detect faults and protect the system. Its high-speed control architecture also supports rapid response to changing loads and power-source conditions.

The unit provides protection against input over-current, output overload, short circuits, excessive temperature, low battery voltage, high battery voltage, and conducted electrical transients.

Battery, Generator & Solar Integration

The integrated adaptive charger can operate in 3-stage or 4-stage charging modes with equalization. A solar charge controller can also be connected through the external DC input, allowing solar charging to integrate with the EVO power system.

Dual AC inputs provide additional flexibility, while the dedicated generator input is designed to tolerate greater waveform distortion than a conventional grid input.

Warranty

Limited 2-Year Warranty
