Description

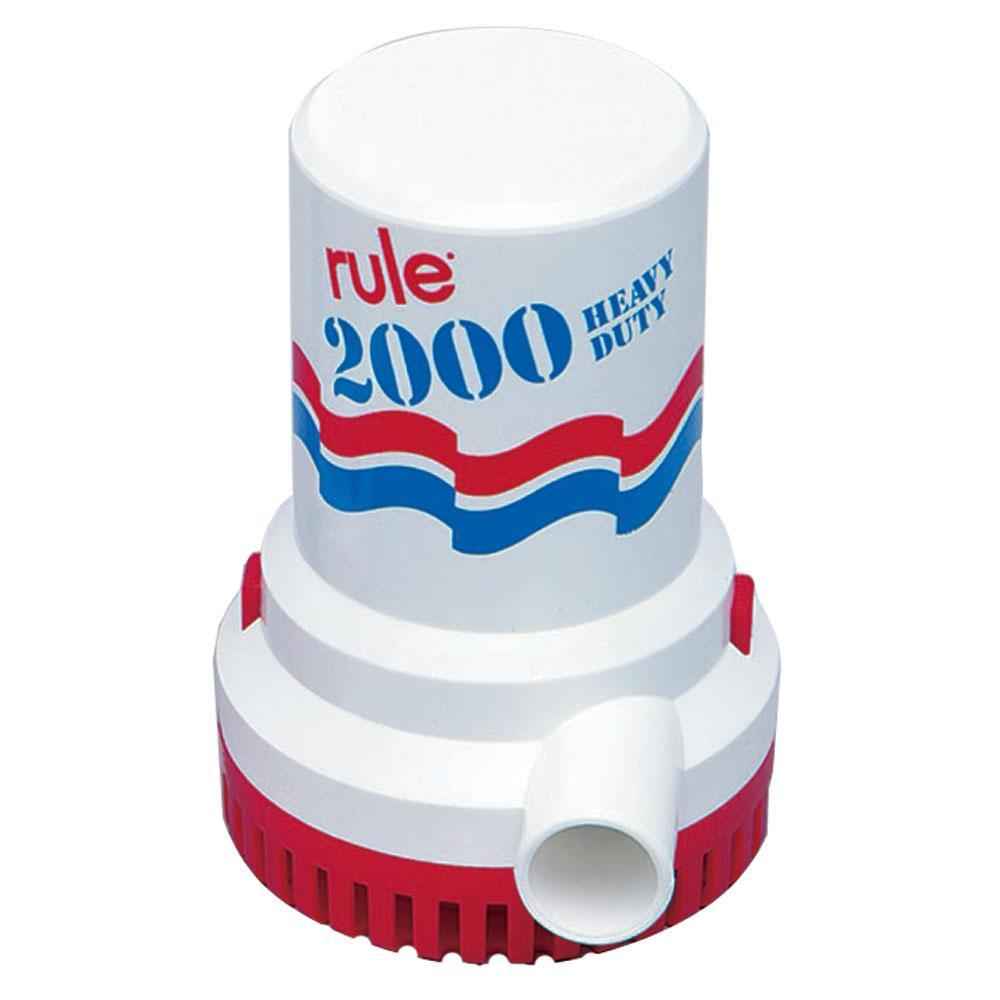

The Rule 10 Submersible Bilge Pump is a high-capacity 12V DC marine bilge pump rated for up to 2000 gallons per hour. Designed as a traditional non-automatic pump, it is switch operated and can be paired with a separate float switch for automatic water-level activation.
Built for demanding marine environments, the Rule 2000 features a compact long-life motor, stainless steel shaft, marine-grade blocked wiring and an easy-clean snap-lock strainer base. The pump is completely submersible and ignition protected for marine applications.
Features
- High-capacity 2000 GPH flow rate
- Completely submersible design
- 12V DC operation
- 1-1/8" hose barb outlet
- Switch-operated, non-automatic design
- Can be operated with a separate float switch
- Compatible with a three-way switch configuration for automatic and manual override operation
- Compact, efficient long-life motor
- Can run dry for short periods
- Easy-clean snap-lock strainer base
- Stainless steel shaft
- Marine-grade blocked wiring
- Designed for quiet, low-vibration operation
- Each pump is factory tested for functions including flow, amperage draw and stray current
- Ignition protected
- CE certified
- ISO 8849 certified
Specifications
- Brand: Rule
- Manufacturer Part Number: 10
- Product Type: Bilge Pump
- Pump Type: Submersible
- Operation Type: Switch Operated
- Automatic Operation: Requires Separate Float Switch/Control
- Flow Rate: 2000 Gallons Per Hour
- Voltage: 12V DC
- Outlet Port: 1-1/8" Hose Barb
- Dimensions: 4-1/4" Diameter × 6" Height
- Shaft Material: Stainless Steel
- Submersible: Yes
- Ignition Protected: Yes
- Certification: CE / ISO 8849
- Condition: Brand New
- Product: Genuine Rule Product
Compatibility & Applications
Designed for 12V marine bilge pumping applications requiring a submersible pump with up to a 2000 GPH rating and a 1-1/8" hose connection.
Suitable for compatible boats and other marine applications where the electrical system, discharge plumbing and required pumping capacity match the specifications of the Rule 10.
Important Installation Information
This is a non-automatic bilge pump. The pump and automatic float switch are stand-alone products. A compatible float switch is required when water-level-activated automatic operation is desired.
A three-way switching arrangement can be used to provide both automatic operation and manual override when installed with the appropriate controls.
Verify the vessel's 12V DC electrical system, required flow capacity and 1-1/8" discharge hose connection before installation.
Important
- Rated for up to 2000 GPH.
- Requires a 12V DC electrical system.
- Uses a 1-1/8" hose barb connection.
- Completely submersible.
- Separate float switch/control is required for automatic operation.
- Pump and float switch are stand-alone products.
- Capable of running dry for short periods.
- Installation should follow applicable marine electrical and bilge-pump requirements.
Warranty
Backed by a limited 5-year manufacturer warranty.
