Description

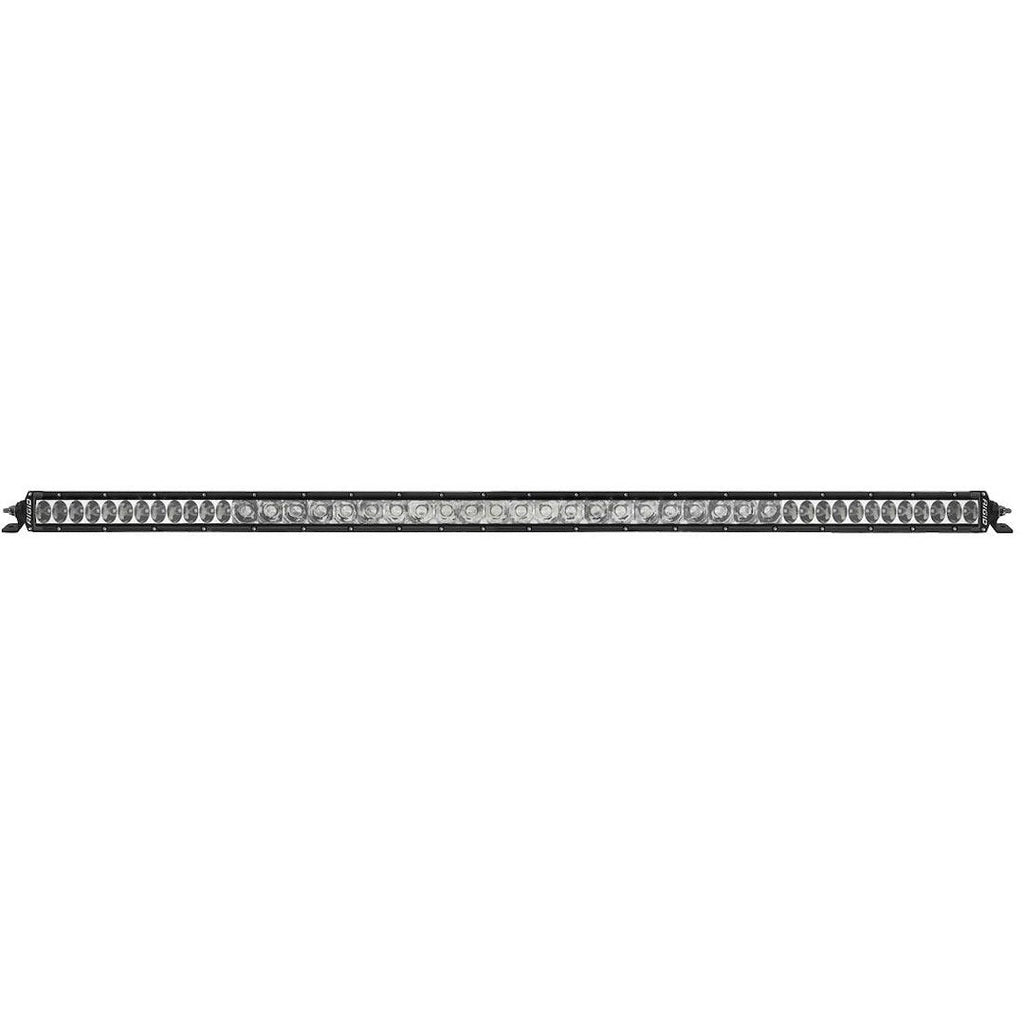

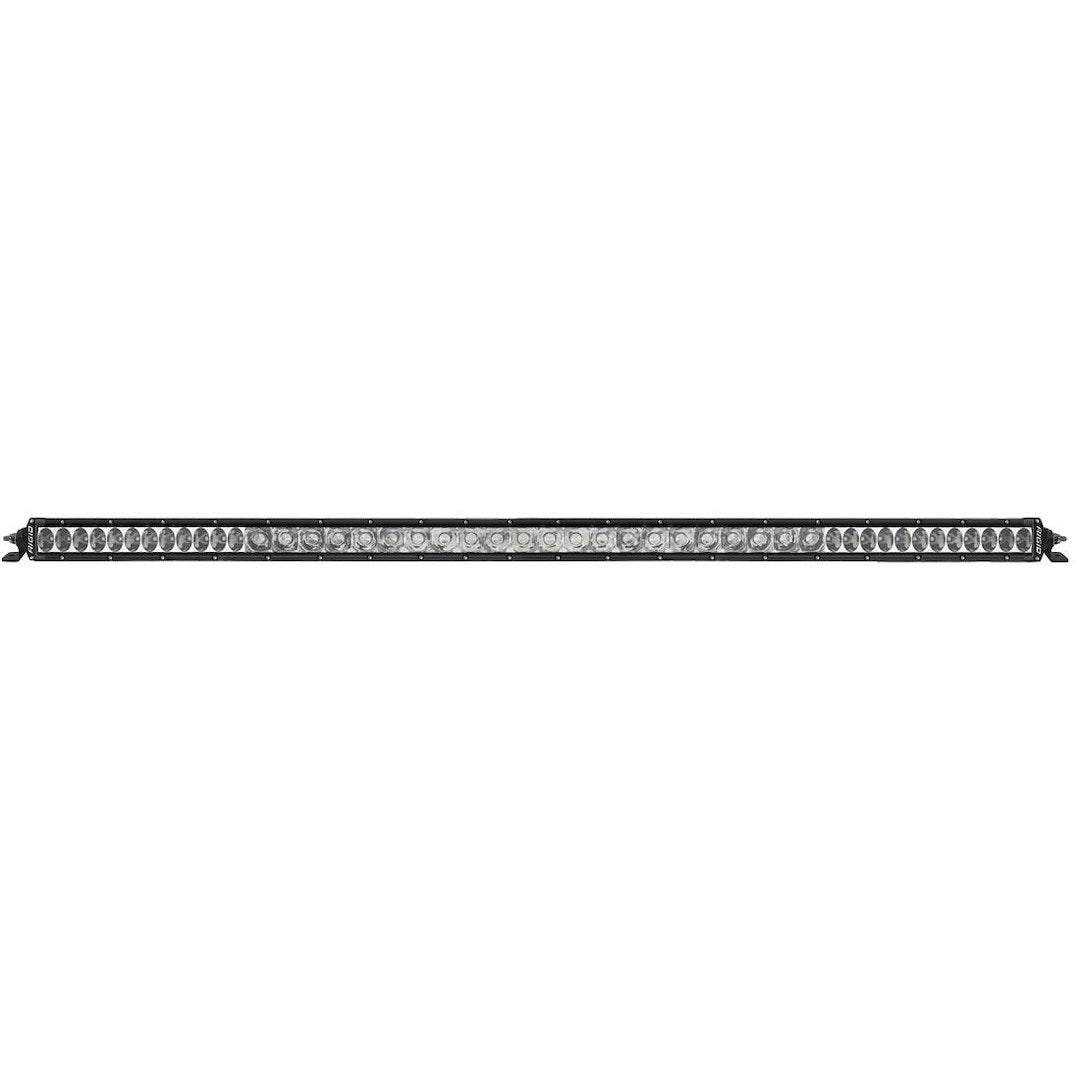

The 40-inch bar combines driving and spot beams in one LED row. A harness and switch are included.
Product details
The SR-Series PRO has one LED row in a profile below 2 inches for limited mounting space, with long-distance projection and low power consumption. Updated LEDs offer up to 111 percent more raw lumens across the series. Extruded-aluminum housings carry prominent branding and blacked-out circuit boards. Series choices include Hybrid or patented Specter optics, varied lengths and beams, and black or white powder-coated finishes. Uses span off-road vehicles, industrial equipment, agriculture and marine applications. This configuration uses a combination driving-and-spot beam.
Specifications
| Number Of Rows | 1 |
|---|---|
| Estimated Install Time (Hours) | 1.5 |
| Beam Angle (Deg) | 18 Degree |
| Ampere Rating At 12 Volts | 21.64 Amp |
| Lumens | 28842 Lumens |
| Wattage | 303 Watt |
| Length | 40 Inch |
| Voltage Rating | 9 To 36 Volt |
| Housing Material | Aluminum |
| Housing Color | Black |
| Bulb Specifications | Clear LED Bulbs |
| Beam Type | Combo Beam Driving And Spot |
| Connection Type | Hard Wired |
| Bulb Type | LED |
| Lens Material | Polycarbonate |
| Style | Straight |
| Mounting Style | Surface Mount |
| Light Color | White |
| Includes | With Harness/ Switch |
