Description

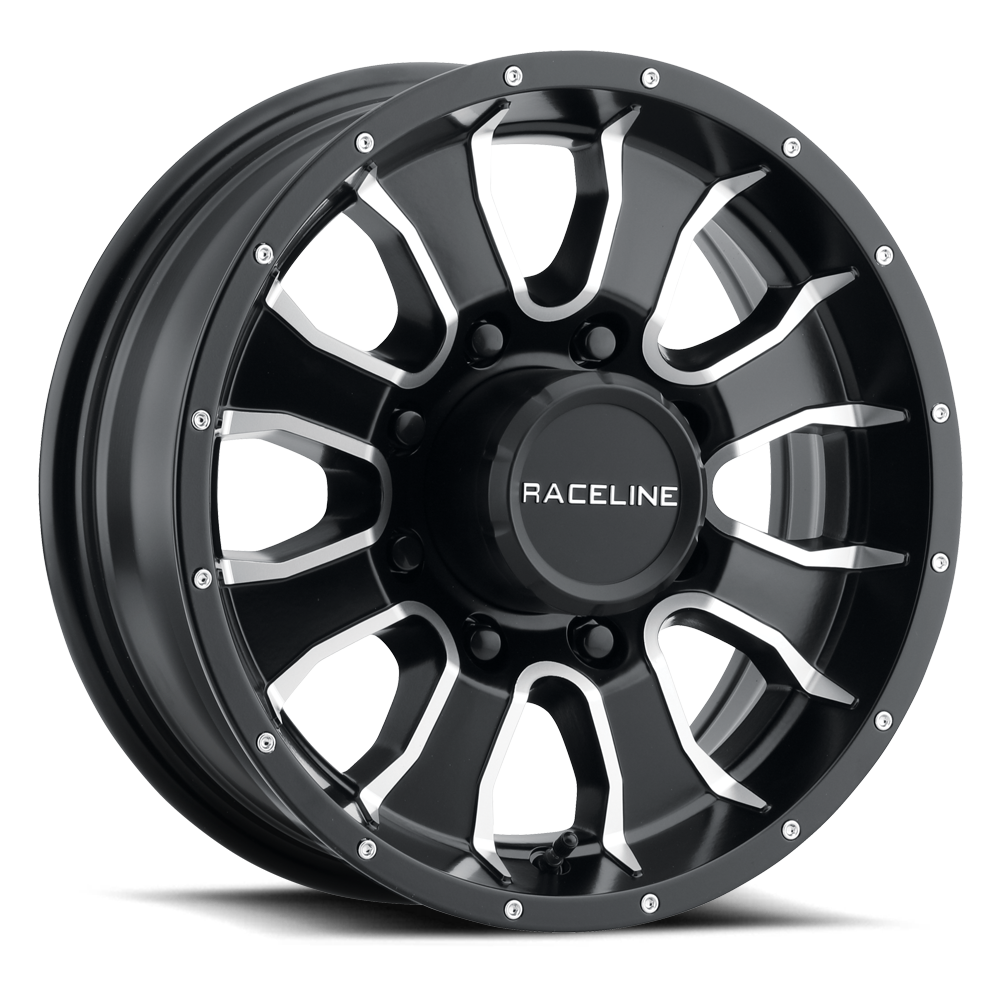

The Raceline 860M-66080 Mamba trailer wheel combines heavy-duty load capacity with a distinctive 8-spoke design. Measuring 16" x 6" with an 8 x 6.5" (8 x 165.1mm) bolt pattern, this one-piece cast aluminum wheel is rated for up to 4,000 lb and features a satin black finish with machined accents.
The wheel has a 0mm offset, 3.50" backspacing and 124.46mm center bore. It is TPMS compatible and accommodates the Bearing Buddy system, making it well suited to compatible heavy-duty trailer applications.
Features
- Raceline 860M Mamba trailer wheel
- Heavy-duty 4,000 lb load capacity
- 16" diameter x 6" width
- 8 x 6.5" / 8 x 165.1mm bolt pattern
- One-piece cast aluminum construction
- 8-spoke design
- Satin black finish with machined accents
- 0mm offset
- 3.50" backspacing
- 124.46mm center bore
- Uses 60-degree conical-seat lug nuts
- Acorn lug nut design
- Compatible with TPMS
- Accommodates Bearing Buddy systems
- Maximum tire diameter of 31.7"
- Raceline logo center cap
- Passes or exceeds applicable DOT standard load ratings
- Sold individually
Specifications
- Brand: Raceline
- Manufacturer Part Number: 860M-66080
- Series: 860M Mamba
- Product Type: Trailer Wheel
- Wheel Size: 16" x 6"
- Diameter: 16"
- Width: 6"
- Bolt Pattern: 8 x 6.50"
- Bolt Pattern (Metric): 8 x 165.1mm
- Offset: 0mm
- Backspacing: 3.50"
- Center Bore: 124.46mm
- Lug Seat: 60-Degree Conical
- Lug Nut Design: Acorn
- Spoke Design: 8-Spoke
- Construction: One-Piece Cast
- Material: Aluminum
- Color: Black with Machined/Natural Accents
- Finish: Satin Black with Machined Accents
- Load Capacity: 4,000 lb
- Maximum Tire Diameter: 31.7"
- TPMS Compatible: Yes
- Center Cap Design: Raceline Logo
- Quantity: Single Wheel
- Condition: Brand New
- Product: Genuine Raceline Product
What’s Included
- 1 Raceline 860M Mamba 16" x 6" trailer wheel
- Raceline logo center cap
Compatibility
Designed for compatible trailer applications requiring the following wheel specifications:
- 16" x 6" wheel
- 8 x 6.5" (8 x 165.1mm) bolt pattern
- 124.46mm center bore
- 0mm offset
- 3.50" backspacing
- 60-degree conical lug seat
Important Fitment Information
Wheel compatibility cannot be determined from bolt pattern alone. Before ordering, verify your trailer's required wheel diameter, width, bolt pattern, center bore, offset, backspacing, lug-seat style, tire clearance and required load capacity.
The maximum specified tire diameter for this wheel is 31.7 inches.
Important
This listing is for one wheel. A tire is not specified as included.
The wheel uses a 60-degree conical lug seat with an acorn-style lug nut design. Verify that your existing lug nuts are the correct type and specification for the wheel and trailer application before installation.
Warranty
- Structural Warranty: Limited Lifetime
- Finish Warranty: Limited 1 Year
