Description

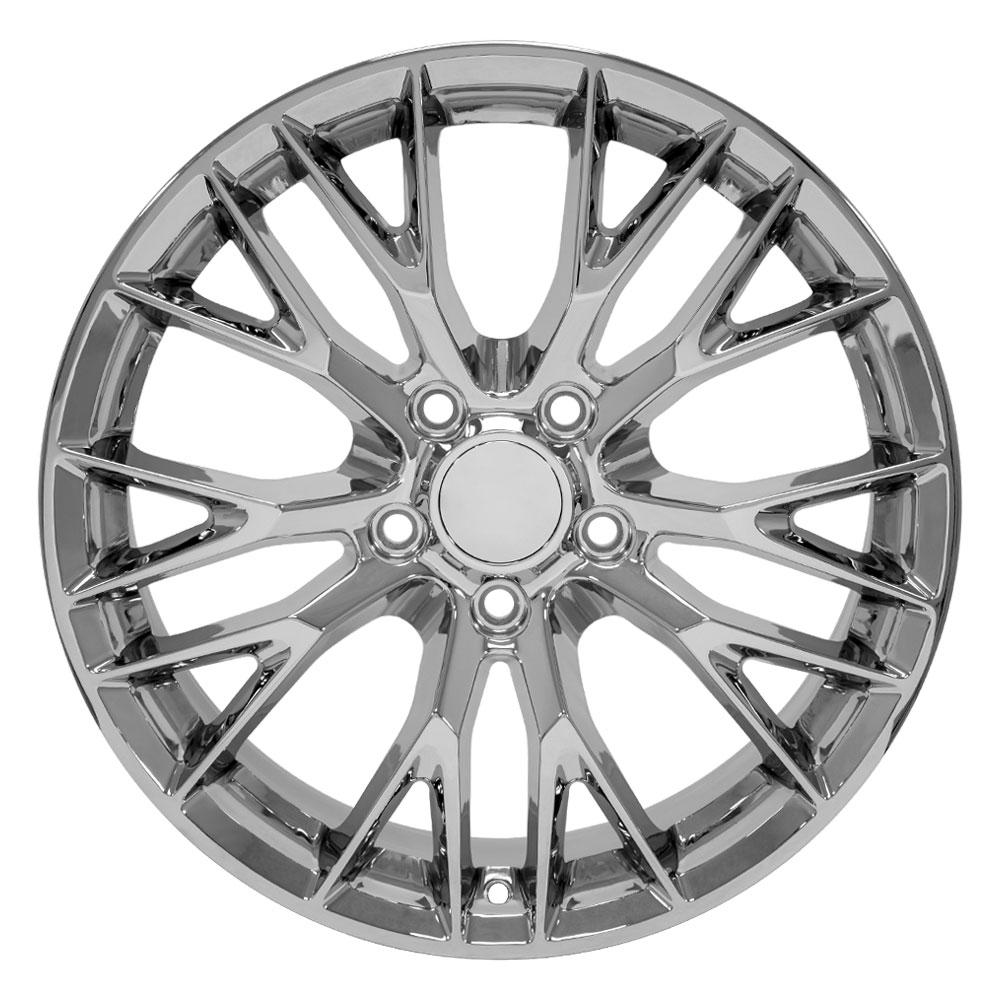

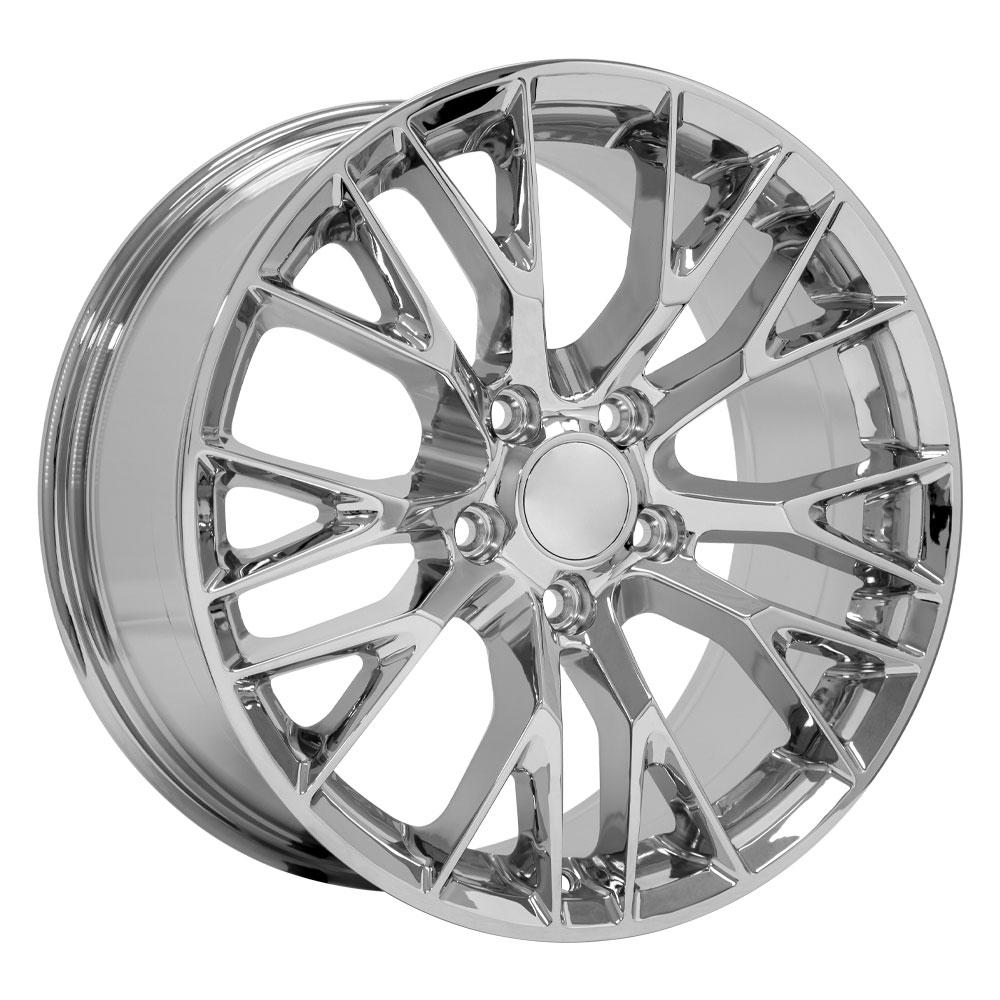

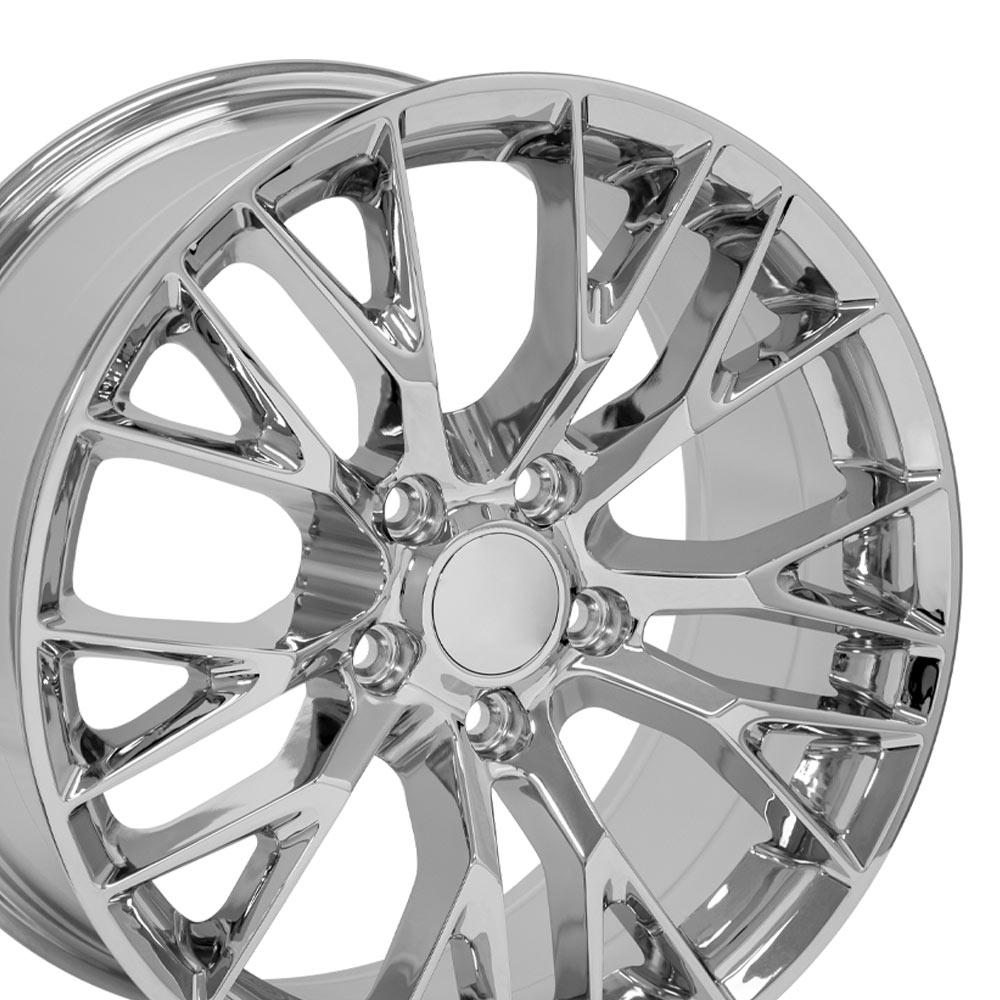

Ten split spokes carry a chrome-plated finish on this 18x8.5 aluminum rim. The CV22B has a 5x120.65 mm bolt circle, positive 56 offset and an included center cap.
Metric bolt circle: 5x120.65 mm (rounded to 5x120.7 to one decimal place).
Wash with soap and water only, avoid harsh chemicals and dry with a clean microfiber cloth.
Manufacturer warranty
One year against manufacturing defects; lifetime structural warranty and one-year finish warranty, provided the wheel is properly maintained.
Specifications
| Estimated Install Time (Hours) | 0.5 |
|---|---|
| Finish Warranty | 1 Year |
| Basic Design | 10 Split Spoke |
| Load Capacity | 1600 |
| Diameter | 18 |
| Size | 18x8.5 |
| Max Tire Diameter | 33.7 |
| Offset | 56 |
| Bolt Pattern | 5x120.7 |
| Bolt Pattern Millimeter | 5x120.7 |
| Bolt Pattern | 5x4.75 |
| Bolt Pattern Inch | 5x4.75 |
| Backspacing | 6.95 |
| Lug Nut Seat Type | 60 Degree Conical |
| Center Bore | 70.30 |
| Width | 8.5 |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Finish | Chrome Plated |
| Structural Warranty | Lifetime |
| With Hub Centric Ring | No |
| With Inserts | No |
| Color | Silver |
| Quantity | Single |
| Center Cap Design | Without Logo |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
