Brand New • Online Only
Description
All-metal three-stage planetary gearing supports the 3,500-pound ATV/UTV winch. A submersible 300-amp solenoid controls the motor.
Features
- Fast Line Speeds. Redesigned Braking System
- All Metal Planetary Gearing
- Submersible, 300 Ampere Rated Solenoid
- Center Focused Drum; Fast Line Speeds
- Free Spooling
- Roller Fairlead; Load Holding Brake
- Corrosion-Resisitant

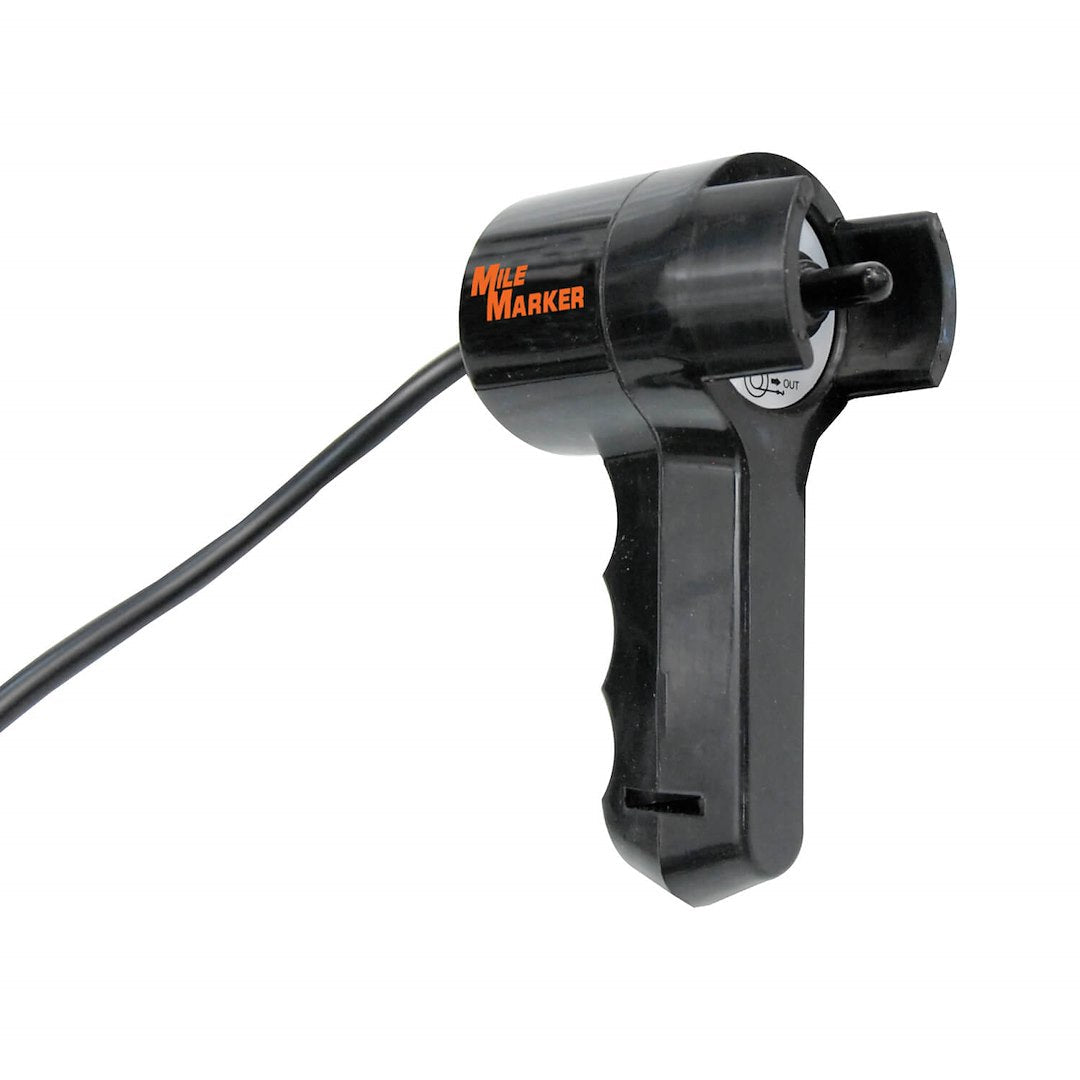

- Marine Grade Remote Control Connectors
- Limited 2 Year Warranty
Construction and application
- All-metal three-stage planetary gear train with high-output permanent-magnet motor.
Specifications
| Winch Rating | 3500 Pound |
|---|---|
| Recommended Use | ATV/ UTV |
| Operation Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Free Spooling | Yes |
| Line Length (FT) | 50 Feet |
| Line Material | Steel |
| Remote Type | Wired |
| Universality | Fully Universal |
| Mounting Pattern Size | 4.9 Inch Length X 3 Inch Width |
| Max Amp Draw | 160 Amp Draw At 3500 Pound |
| Gear Reduction Ratio | 153:1 |
| Includes Mounting Hardware | No |
| Thermal Shutoff | No |
| Color | Black |
| Motor Horsepower | 2 Horsepower |
| Fairlead Type | Roller |
| Line Speed At Max Pull | 9.8 Feet Per Minute At 3500 Pound |
| Electrical Control Type | Solenoid |
| Motor Type | Permanent Magnet |
| Drive Gear Type | Planetary |
| Line Diameter (IN) | 7/32 Inch |
| Mounting Hole Quantity | 4 |
| Drum Material | Steel |
| Estimated Install Time (Hours) | 2 |
Additional product details

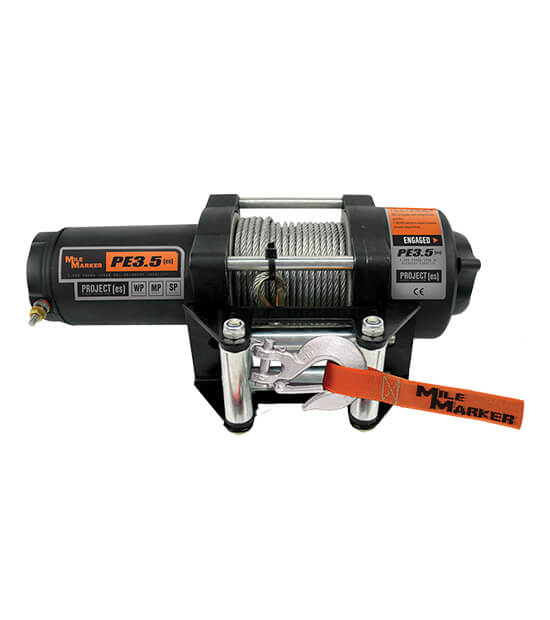

Mile Marker 77-50112BW combines a 12-volt permanent-magnet motor with planetary gearing in the 3,500-pound PE3.5 winch.
