Description

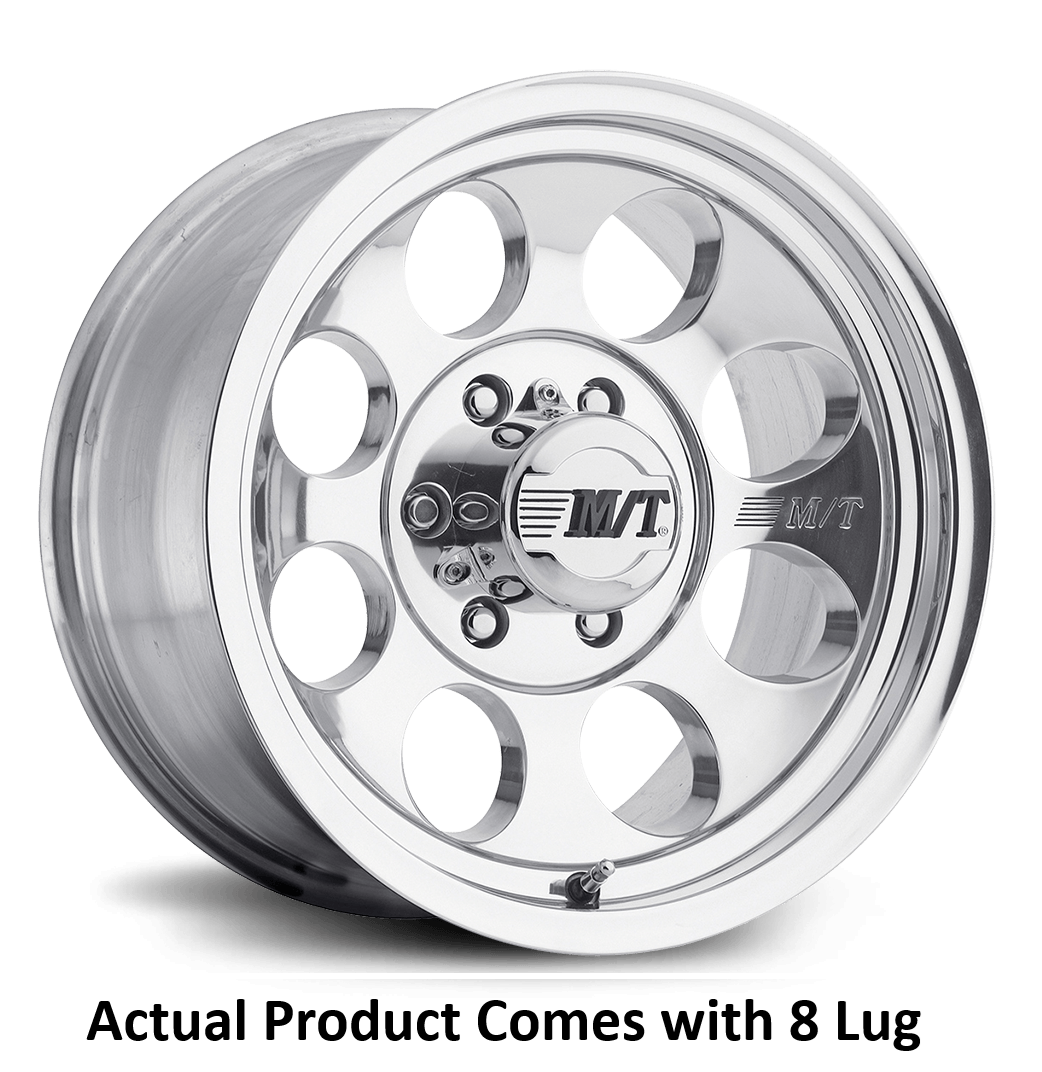

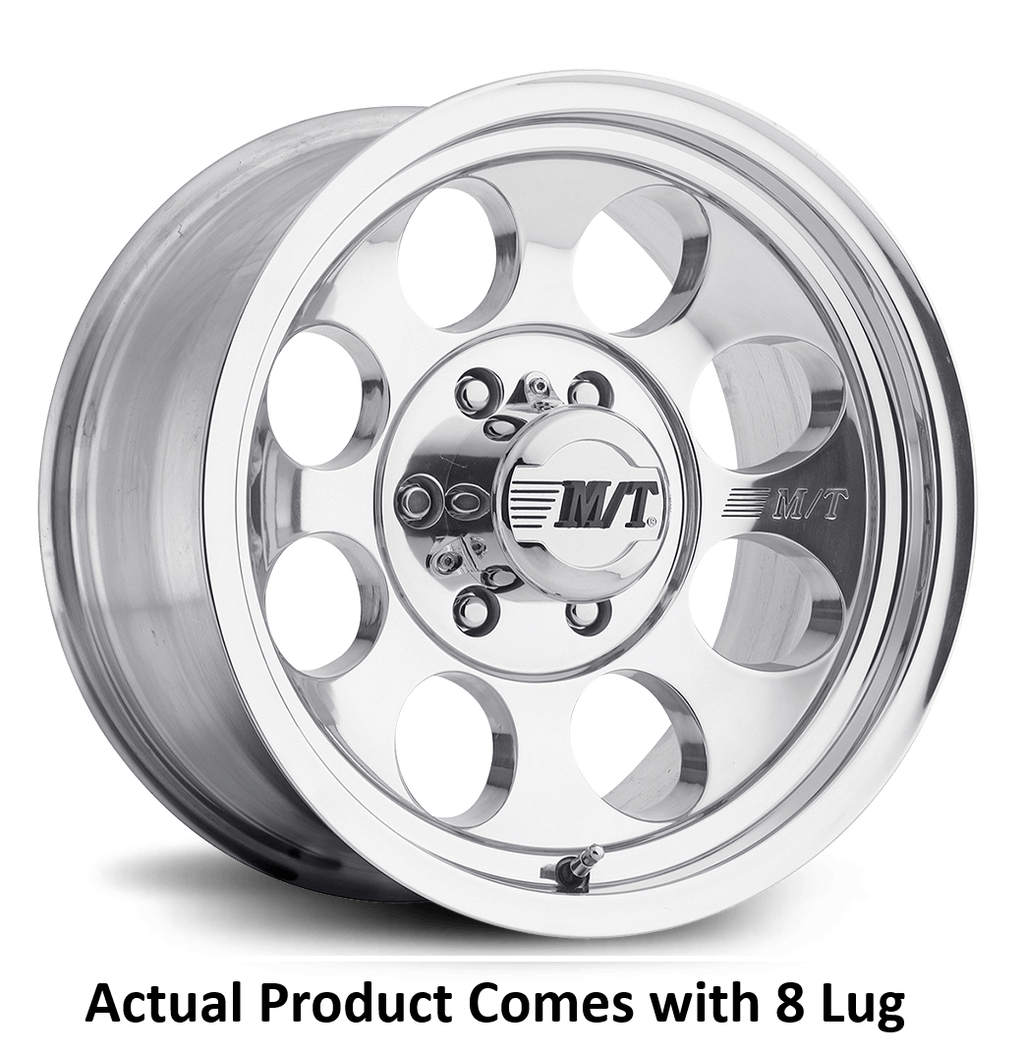

The 17 x 12 Classic III in this version has an 8 x 6.50-inch bolt pattern and -74 offset. Its polished aluminum body incorporates the familiar eight hand holes and a 3,500 lb load rating.
Use 60-degree bulge acorn lug nuts. Duplex lug nuts are recommended for GVWR of 6,500 lb or greater. Not compatible with 1986 and earlier CJ models or 2022 and later Toyota Tundra. Center caps are not available for certain 1997 and earlier Ford 3/4- and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4- and 1-ton pickups, 1986 and earlier Jeep/CJ and early Toyota Land Cruiser applications.
Specifications
| Offset | -74 |
|---|---|
| Estimated Install Time (Hours) | 0.5 |
| Width | 12 |
| Center Bore | 125.20 |
| Diameter | 17 |
| Size | 17x12 |
| Backspacing | 3.60 |
| Load Capacity | 3500 |
| Max Tire Diameter | 40 |
| Lug Nut Seat Type | 60 Degree Conical |
| Basic Design | 8 Hole |
| Bolt Pattern | 8x165.1 |
| Bolt Pattern Millimeter | 8x165.1 |
| Bolt Pattern | 8x6.50 |
| Bolt Pattern Inch | 8x6.50 |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Center Cap Design | Embossed M/T Logo |
| Structural Warranty | Lifetime |
| Color | Natural |
| With Hub Centric Ring | No |
| With Inserts | No |
| Finish Warranty | No Warranty |
| Construction | One Piece Cast |
| Finish | Polished |
| Quantity | Single |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
