Description

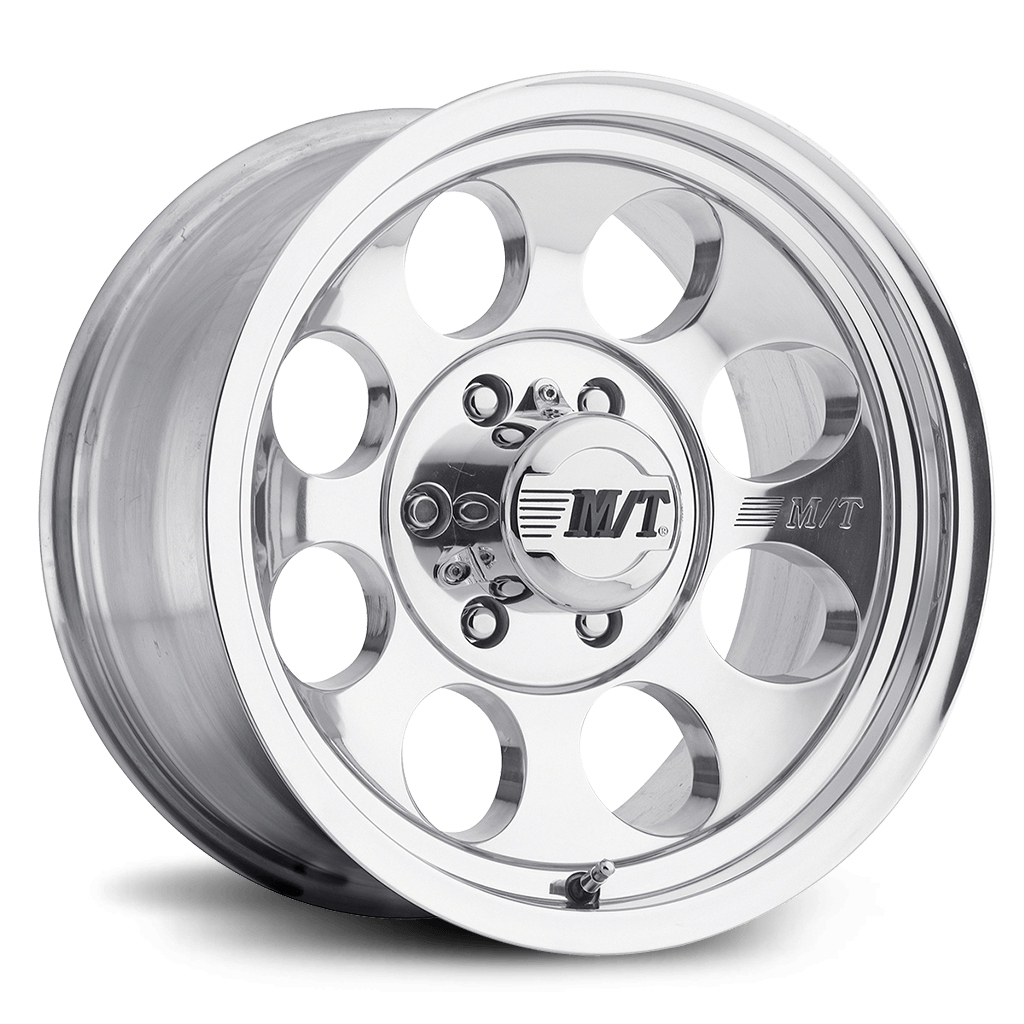

A 6 x 5.50-inch bolt pattern identifies this six-lug Classic III configuration. The polished 17 x 12 wheel carries eight face openings and a 2,500 lb load rating.
Installation notes
Not suitable for 2022 and later Toyota Tundra. Check bolt circle, hub, offset and clearance for the intended vehicle. Mickey Thompson recommends Duplex Bulge Acorn lug nuts on vehicles with GVWR of 6,500 lb or greater. Center caps are not available for certain 1997 and earlier Ford 3/4- and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4- and 1-ton pickups, 1986 and earlier Jeep/CJ and early Toyota Land Cruiser applications.
Classic III wheels are not compatible with 1986 and earlier CJ models. Use 60-degree bulge acorn lug nuts.
A hub-centering ring is included for late-model Chevrolet/GMC applications using this 6 x 5.50-inch wheel.
Specifications
| Offset | -74 |
|---|---|
| Estimated Install Time (Hours) | 0.5 |
| Center Bore | 108.10 |
| Width | 12 |
| Diameter | 17 |
| Size | 17x12 |
| Load Capacity | 2500 |
| Backspacing | 3.60 |
| Max Tire Diameter | 40 |
| Lug Nut Seat Type | 60 Degree Conical |
| Bolt Pattern | 6x139.7 |
| Bolt Pattern Millimeter | 6x139.7 |
| Bolt Pattern | 6x5.50 |
| Bolt Pattern Inch | 6x5.50 |
| Basic Design | 8 Hole |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Center Cap Design | Embossed M/T Logo |
| Structural Warranty | Lifetime |
| Color | Natural |
| With Inserts | No |
| Finish Warranty | No Warranty |
| Construction | One Piece Cast |
| Finish | Polished |
| Quantity | Single |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
