Description

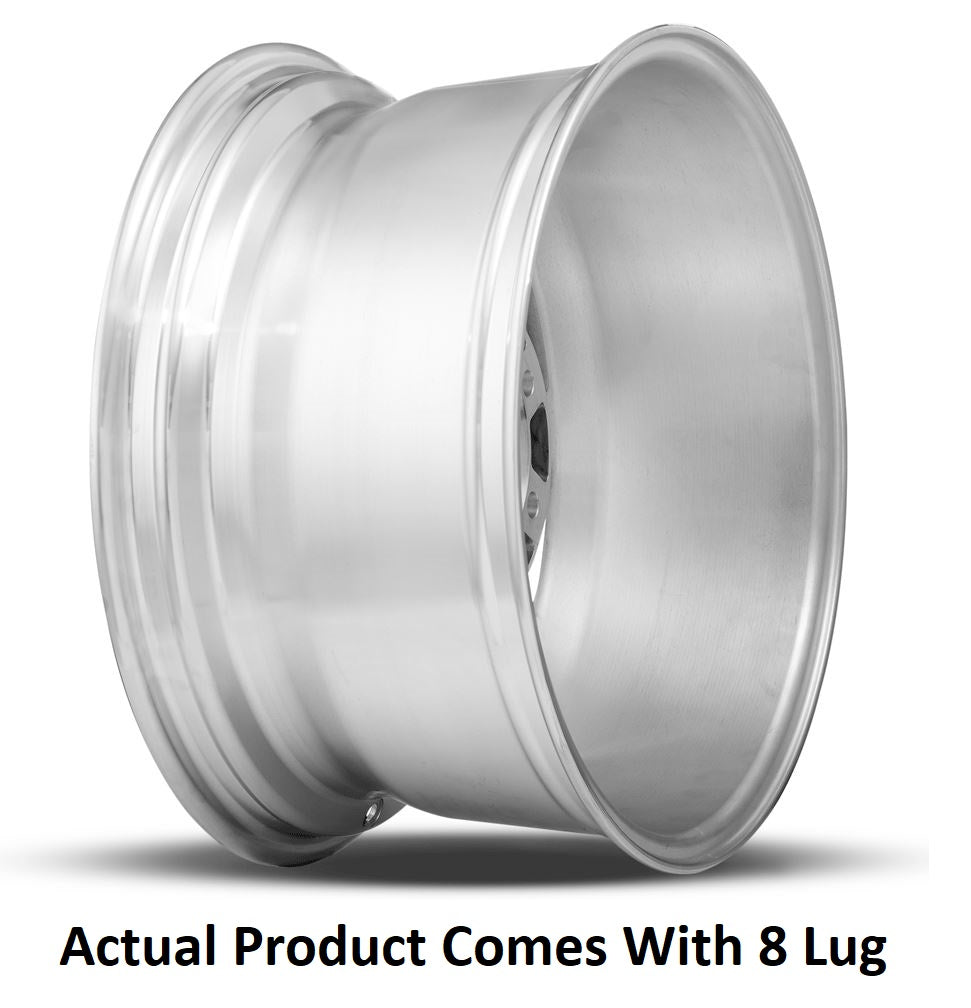

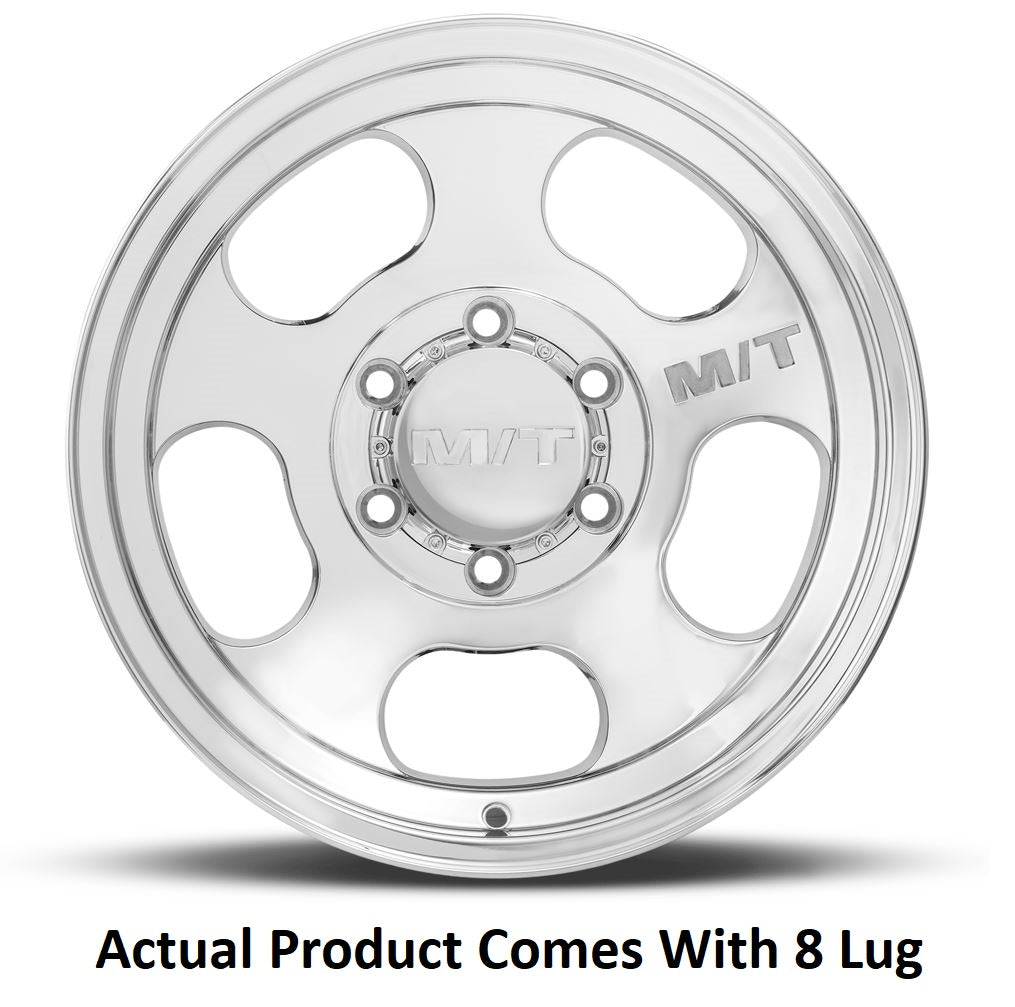

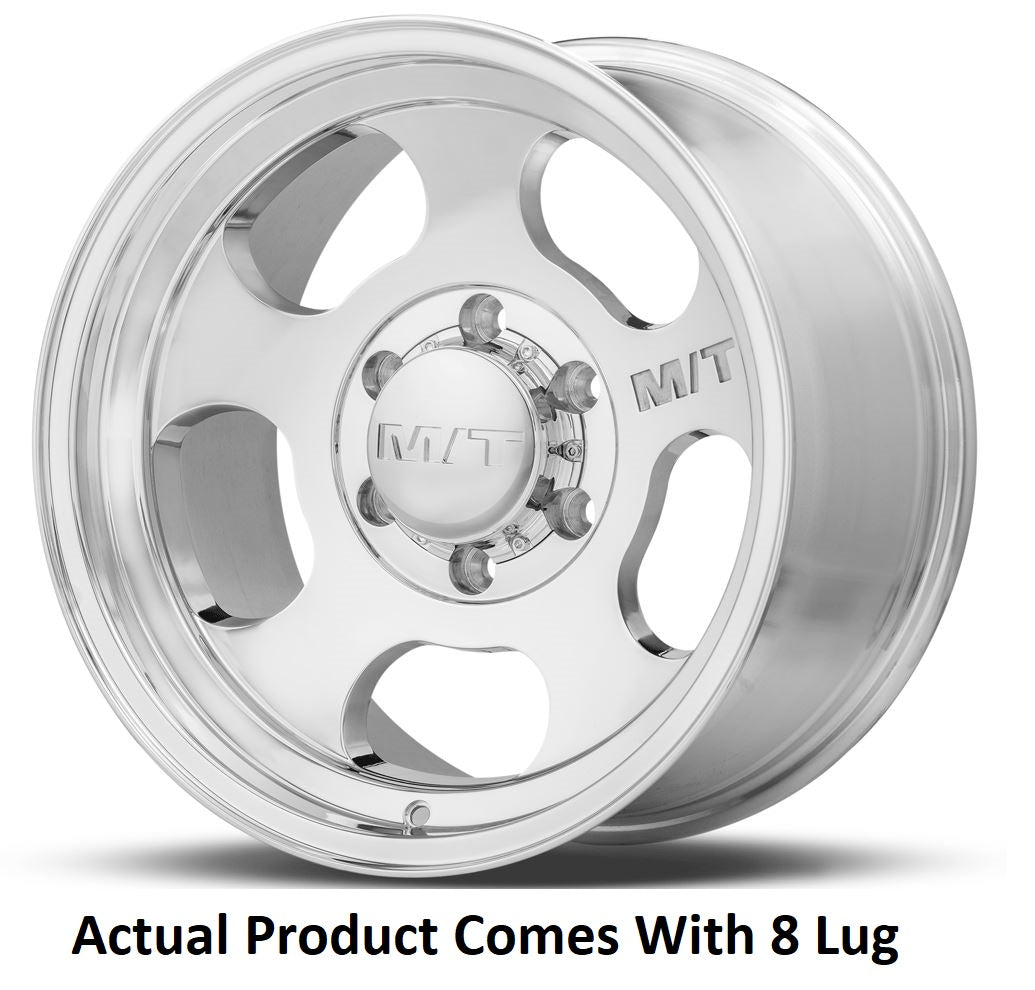

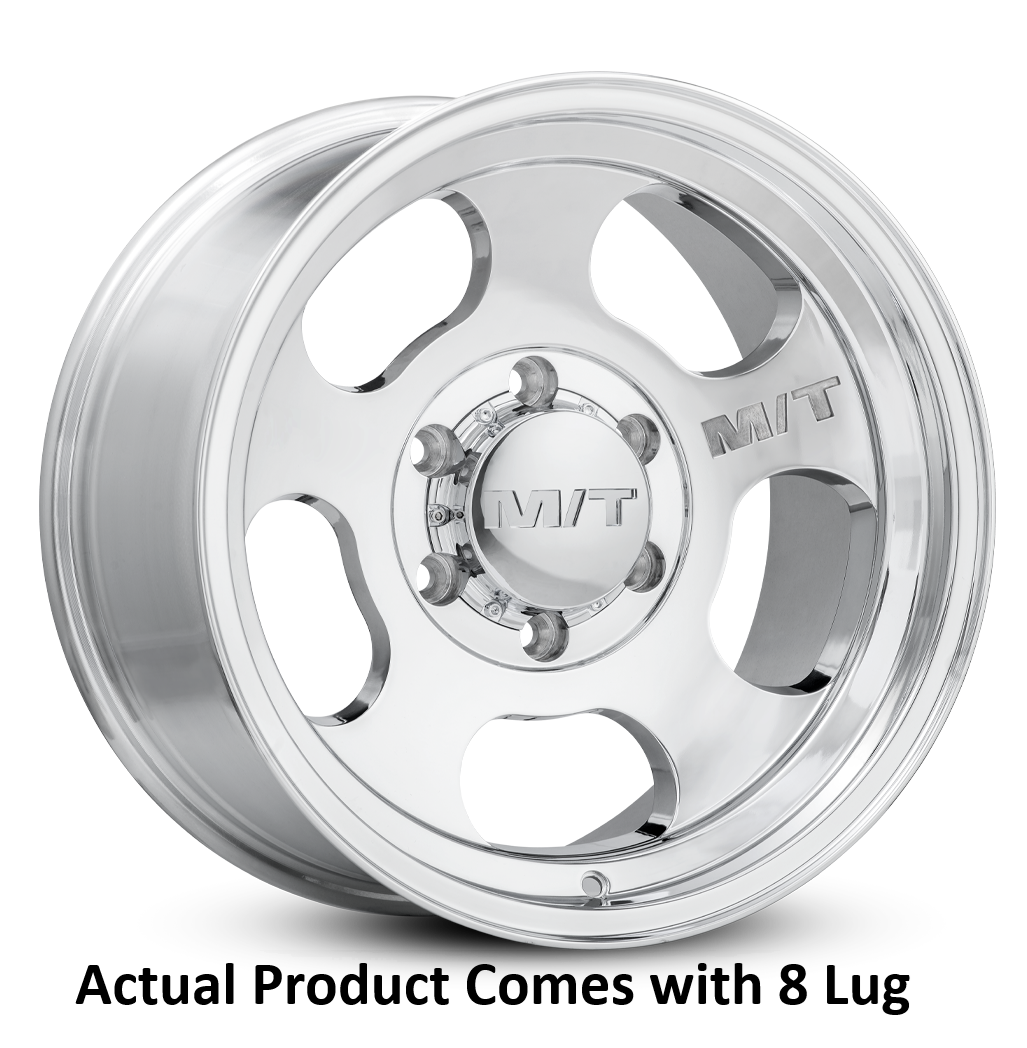

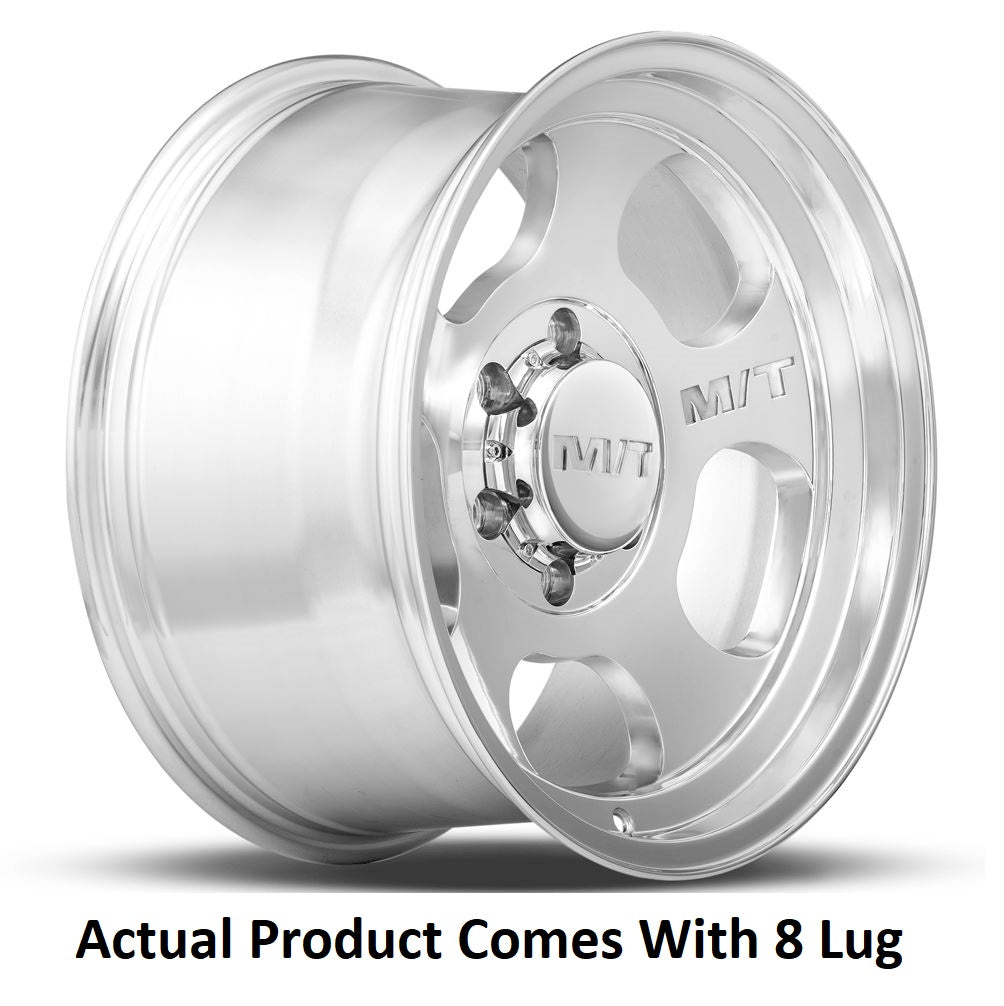

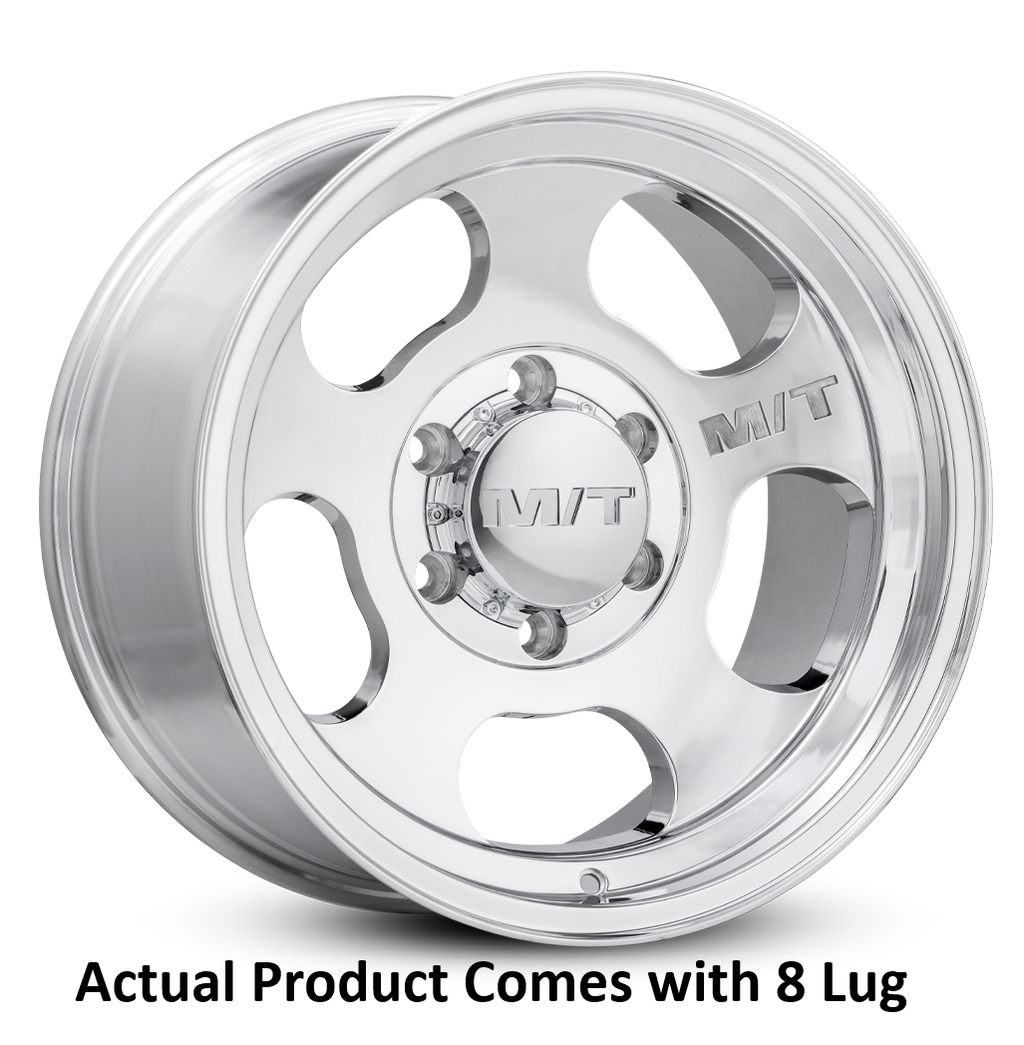

An 8 x 180 bolt circle defines the mounting of this polished 17 x 12 Canyon. Its five face slots are styling openings, separate from the eight lug holes.
Installation notes
Not suitable for 2022 and later Toyota Tundra. Check bolt circle, hub, offset and clearance for the intended vehicle. Mickey Thompson recommends Duplex Bulge Acorn lug nuts on vehicles with GVWR of 6,500 lb or greater. Center caps are not available for certain 1997 and earlier Ford 3/4- and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4- and 1-ton pickups, 1986 and earlier Jeep/CJ and early Toyota Land Cruiser applications.
Specifications
| Offset | -58 |
|---|---|
| Estimated Install Time (Hours) | 0.5 |
| Finish Warranty | 1 Year |
| Width | 12 |
| Center Bore | 125.20 |
| Diameter | 17 |
| Size | 17x12 |
| Load Capacity | 3500 |
| Backspacing | 4.25 |
| Max Tire Diameter | 40 |
| Basic Design | 5 Hole |
| Lug Nut Seat Type | 60 Degree Conical |
| Bolt Pattern | 8x180 |
| Bolt Pattern Millimeter | 8x180 |
| Bolt Pattern | 8x7.08 |
| Bolt Pattern Inch | 8x7.08 |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Structural Warranty | Lifetime |
| Center Cap Design | Mickey Thompson Logo |
| Color | Natural |
| With Hub Centric Ring | No |
| With Inserts | No |
| Construction | One Piece Cast |
| Finish | Polished |
| Quantity | Single |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
