Description

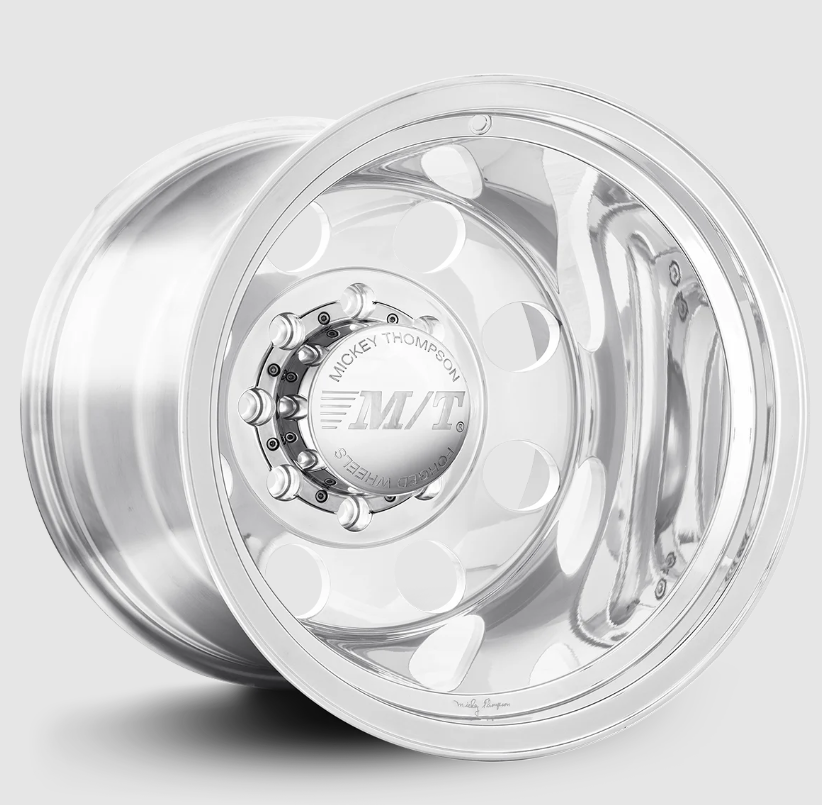

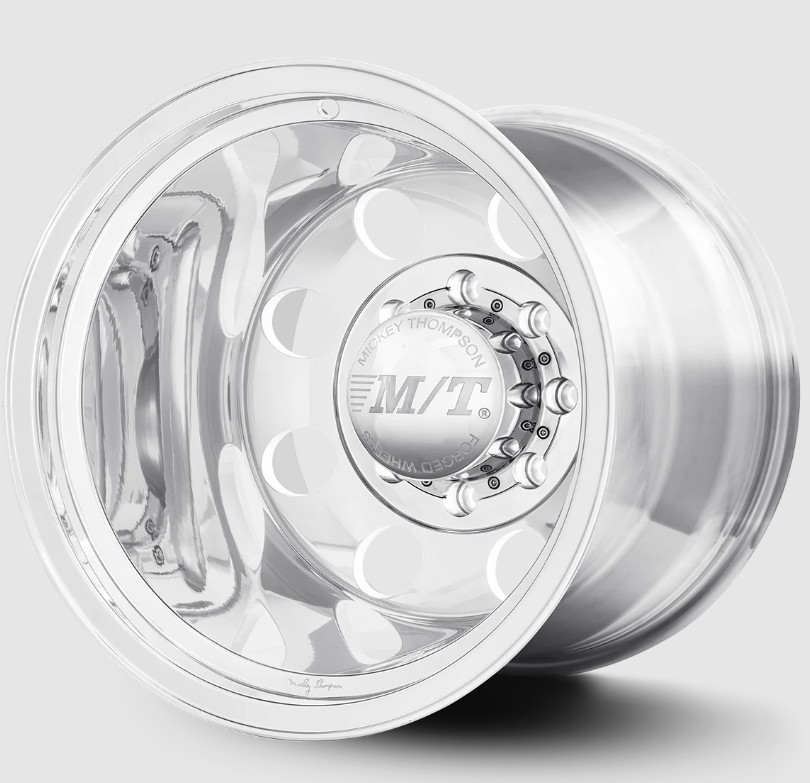

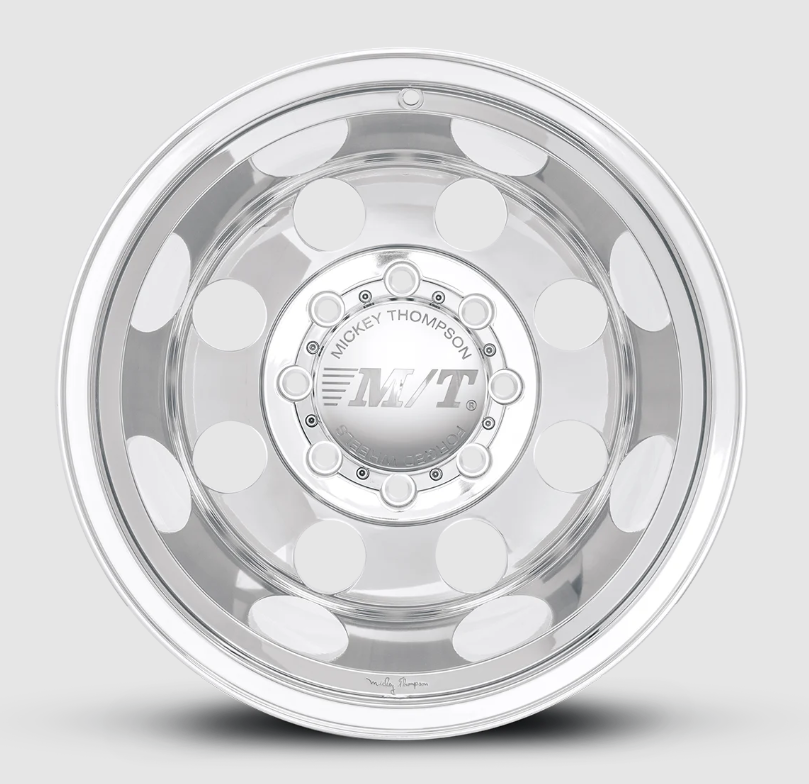

A 14-inch width and -101 offset give this 17-inch Classic Forged its deep wheel profile. The eight-hole monoblock is forged from 6061-T6 aluminum and uses a 5 x 5.50-inch bolt pattern.
Confirm hub and vehicle clearance for the wheel width and offset. Use 60-degree bulge acorn lug nuts. Not suitable for 2022 and later Toyota Tundra. Mickey Thompson recommends Duplex Bulge Acorn lug nuts for vehicles with GVWR of 6,500 lb or greater.
Specifications
| Offset | -101 |
|---|---|
| Estimated Install Time (Hours) | 0.5 |
| Finish Warranty | 1 Year |
| Center Bore | 108.10 |
| Width | 14 |
| Diameter | 17 |
| Size | 17x14 |
| Load Capacity | 2500 |
| Backspacing | 3.50 |
| Bolt Pattern | 5x139.7 |
| Bolt Pattern Millimeter | 5x139.7 |
| Bolt Pattern | 5x5.50 |
| Bolt Pattern Inch | 5x5.50 |
| Lug Nut Seat Type | 60 Degree Conical |
| Basic Design | 8 Hole |
| Lug Nut Design | Acorn |
| Material | Aluminum |
| Structural Warranty | Lifetime |
| Center Cap Design | Mickey Thompson Logo |
| With Hub Centric Ring | No |
| With Inserts | No |
| Construction | One Piece Forged |
| Finish | Polished |
| Quantity | Single |
| Color | White |
| Center Caps Included | Yes |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
