Description

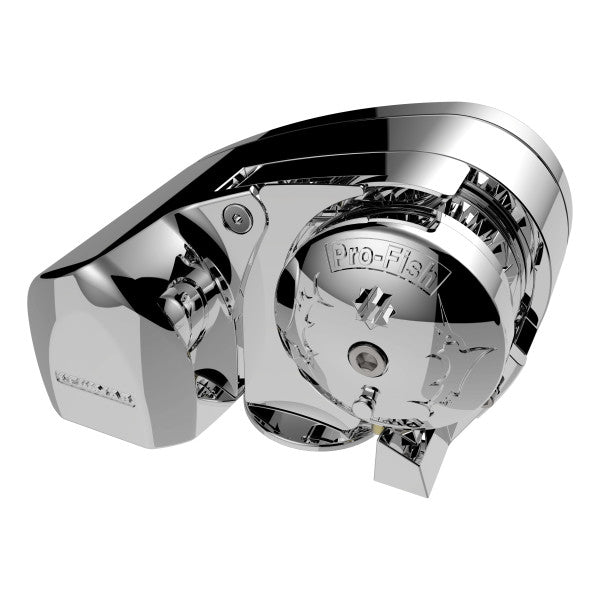

The Lewmar Pro-Fish 1000 Windlass 6656411108-102 is a heavy-duty horizontal-mount marine anchor windlass featuring an automatic freefall system for fast anchor deployment and retrieval. Designed for 12-volt marine electrical systems, it combines a stainless-steel construction with a 1,000-pound maximum pull capacity and line speeds up to 105 feet per minute.
The Pro-Fish automatic freefall mechanism allows the anchor to be dropped without requiring direct access to the windlass. A redesigned control arm, Pro-Guard system, and purpose-designed gypsy help provide dependable rope and chain handling during anchoring.

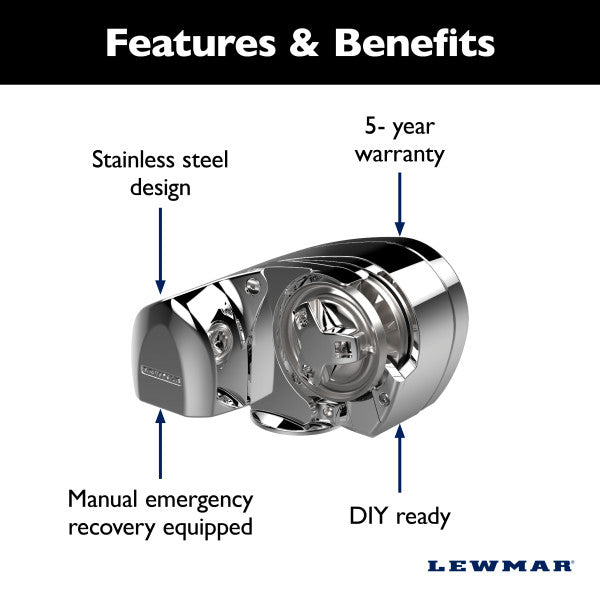

Features
- Brand new
- Lewmar Pro-Fish Series
- Horizontal-mount windlass
- Automatic freefall mechanism
- 1,000 lb maximum pull
- 250 lb working load limit
- Up to 105 ft/min maximum line speed
- 12V operation
- 50-amp rating

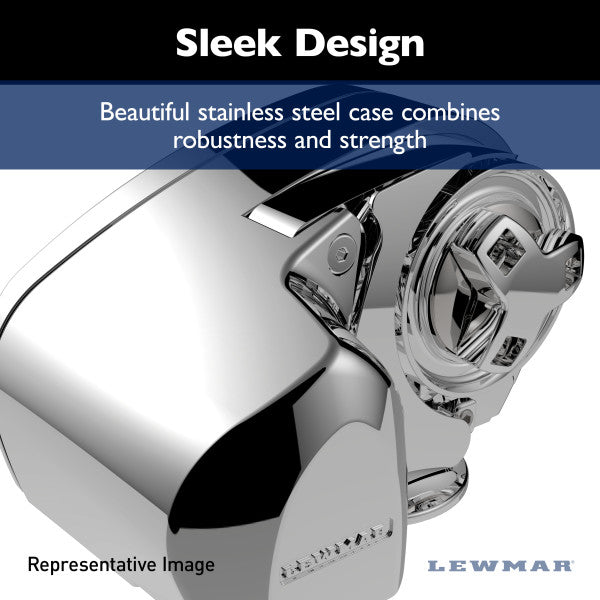

- Stainless-steel construction
- Redesigned control arm with increased spring tension
- Modified control-arm profile improves performance
- Pro-Guard system helps prevent rope jumping and snags
- Closed-cell neoprene gasket protects internal components
- Purpose-designed gypsy supports compatible rope and chain combinations
- Designed for up to 16 mm leaded anchor rodes
- Dual-direction operation
- Limited 5-year warranty

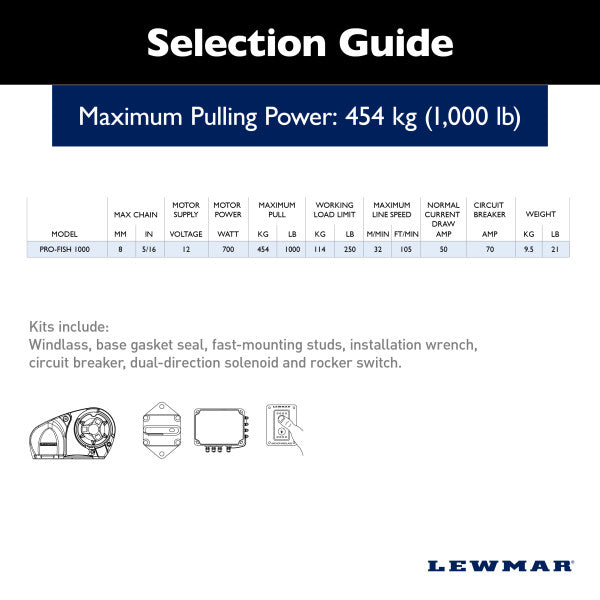

Specifications
- Manufacturer: Lewmar
- Manufacturer Part Number: 6656411108-102
- Series: Pro-Fish
- Type: Marine Windlass
- Mounting Type: Horizontal
- Voltage: 12V
- Amp Rating: 50A
- Maximum Pull: 1,000 lb
- Working Load Limit: 250 lb
- Maximum Line Speed: 105 ft/min

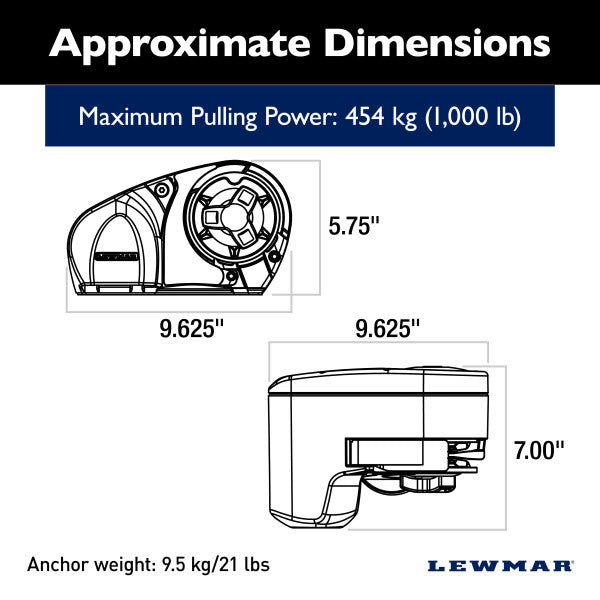

- Width: 9-5/8"
- Height: 5-3/4"
- Material: Stainless Steel
- Freefall: Automatic
Rope & Chain Compatibility
Compatible with:
- 8 mm DIN 766 chain
- 5/16" BBB chain
- 8 mm ISO 4565 chain
- 14–16 mm (9/16"–5/8") 3-strand rope
- 5/8" 8-plait rope
Verify the complete anchor rode configuration and compatibility before installation.

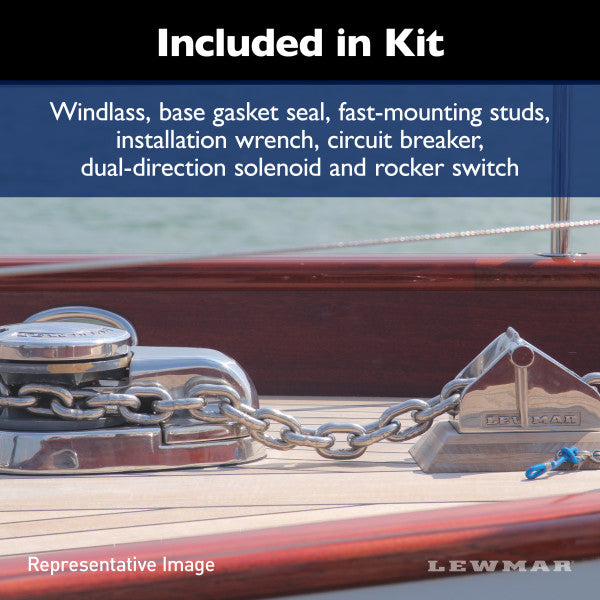

What's Included
- Lewmar Pro-Fish windlass
- Base gasket seal
- Fast-mounting studs
- Installation wrench
- Circuit breaker
- Dual-direction solenoid
- Rocker switch
Warranty
Limited 5-Year Warranty
