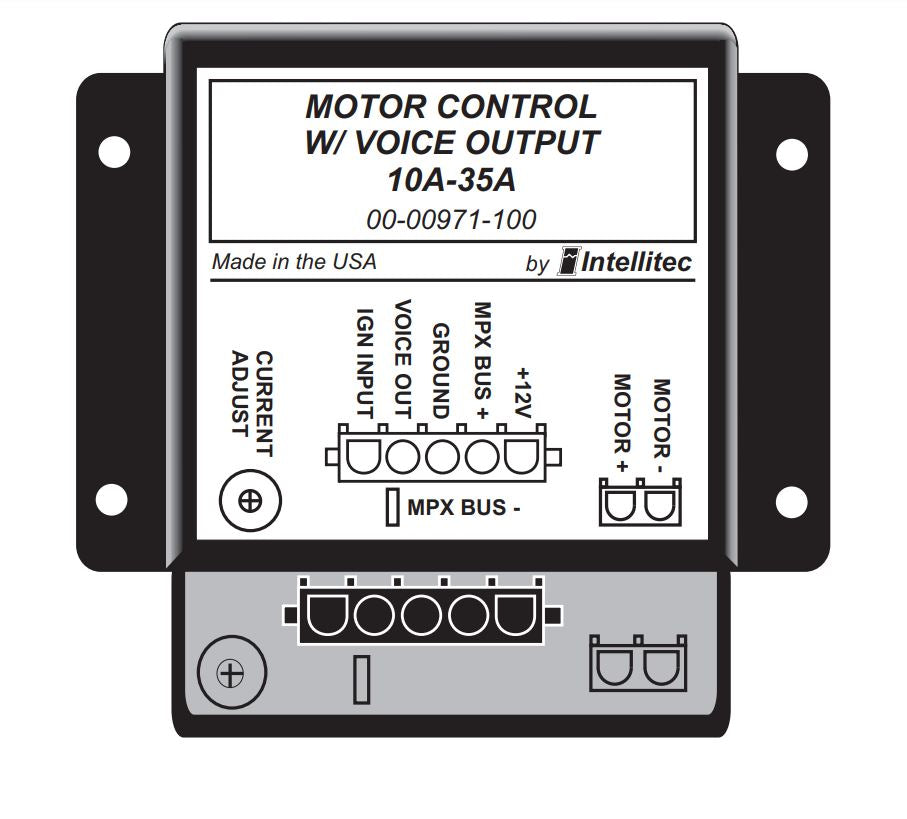

Intellitec 00-00971-100 Slide Out Control Module

Intellitec 00-00971-100 controls slide-out operation in Intellitec Monoplex System. Match the exact module number, connectors and slide-out system before replacement.

Specifications

Key Features

• Designed to Control the Operation of a Slide Out Room Electrical Mechanism.
• To Operate the Room, the Owner Would Simply Press and Hold the Button in the Desired Direction.
• When the Slide Out Reaches It's Outer Most Limit, the Unit Will Sense the Rise in Current and Switch Off the Power to the Slide Out Motor.
• To Move the Room Back in Again, the Owner Will Press and Hold the Button in the Desired Direction.
• When the Slide Out Reaches It's Inner Most Position, the Controller Will Sense the Rise in Current and Will Shut Off Power to the Motor.
• Limited 90 Day Warranty.

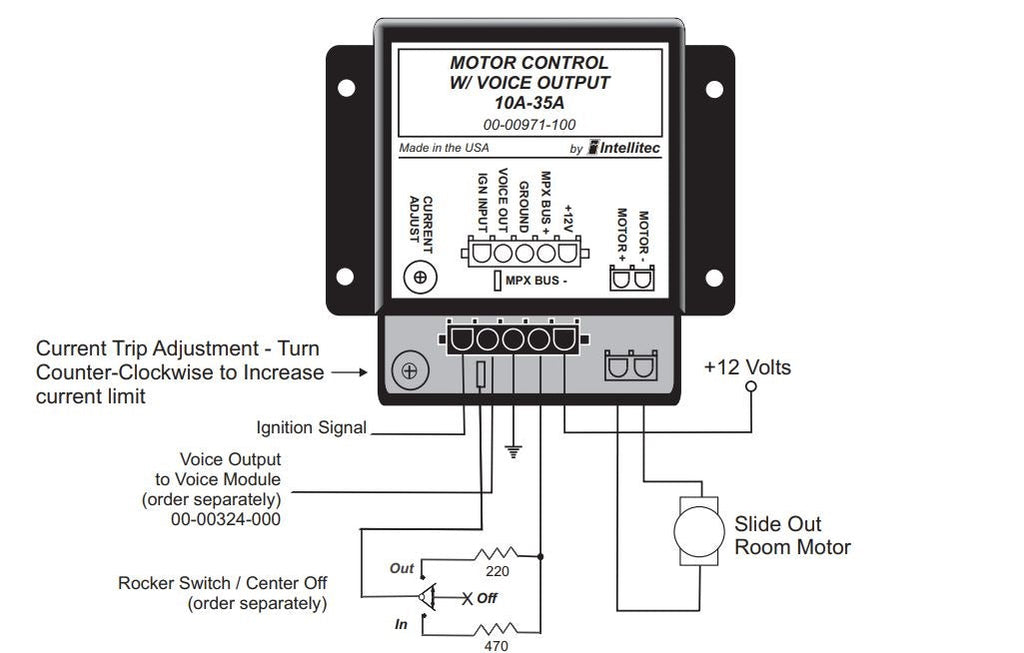

• As the switch is depressed (in or Out direction) each function sends a different load to the module which in turn interprets the direction of travel.

Compatibility
