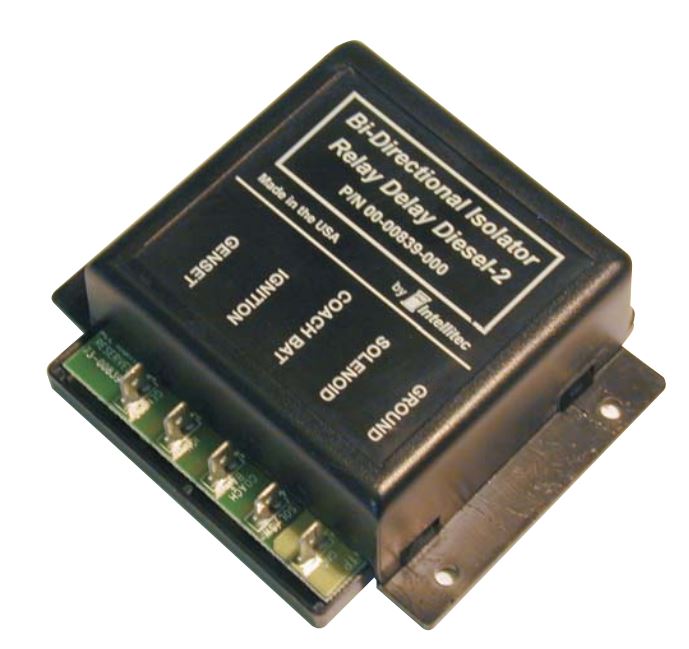

Intellitec 00-00839-000 Diesel-2 Bi-Directional Battery Isolator Controller

Intellitec 00-00839-000 is the Diesel-2 bi-directional isolator relay delay (BIRD) controller for compatible diesel RV systems. It connects coach and chassis batteries during charging from either the engine alternator or shore-power converter and isolates them when charging is absent. It works with a compatible isolator solenoid and must not be interchanged with Intellitec's single-direction 00-00629-120 controller without matching the installed wiring and system.

Specifications

Key Features

• Senses Voltage on the Coach and Chassis Batteries.
• Operates in Two Directions, Charging the Batteries from the Engine Alternator and Charging the Batteries from the Converter.
• Housed in a Plastic Enclosure Suitable for Mounting Under the Hood, Out of Direct Water Spray.
• Limited 90 Day Warranty.
• It provides a method of charging the coach battery from the engine alternator and charges the chassis battery from the converter when the coach is plugged into shore power.
• If the generator is running, the isolator is prevented from pulling in to prevent the generator and converter from operating the chassis functions which might over-load the converter.
• It operates in combination with a continuous duty solenoid to connect the two batteries at the proper times for charging.
• Controller senses both battery-bank charging conditions; follow the Intellitec Diesel-2 service manual for the applicable switching thresholds and solenoid wiring.

Compatibility
