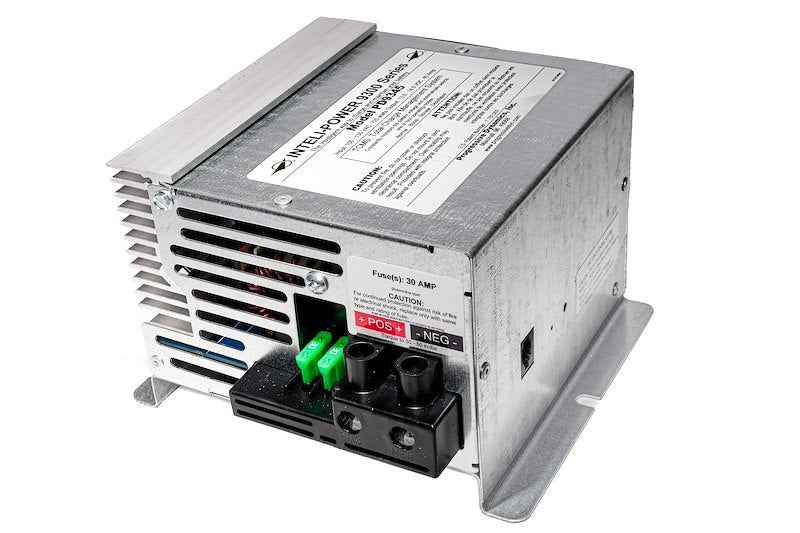

Inteli-Power 9300 Series RV Power Converter PD9345V – 45 Amp Charge Wizard

This new Progressive Dynamics Inteli-Power 9300 Series RV power converter (PD9345V) provides reliable AC to DC power conversion and advanced battery charging for RV electrical systems. The converter transforms 105–130 volts AC into 13.6 volts DC, delivering up to 45 amps of output and 725 watts of continuous power to support RV lighting, appliances, and onboard electronics.

The unit incorporates a Total Charge Management System (TCMS) that provides fully automatic multi-stage battery charging, ensuring the correct charging profile for the selected battery type. A battery mode indicator button allows users to confirm the selected charging mode, and the system stores the selection in memory so the proper charging profile is maintained every time the converter powers on.

This converter is also compatible with the PD92201 Charge Wizard remote pendant, allowing manual control of the charging system when needed. Built-in reverse battery protection and GFCI protection help safeguard both the converter and the RV electrical system from potential damage.

With its compact design and reliable performance, the Inteli-Power® 9300 Series converter is well suited for maintaining RV battery systems while delivering stable DC power for onboard equipment.

Key Specifications

• Manufacturer Part Number: PD9345V

• Brand: Progressive Dynamics

• Series: Inteli-Power 9300 Series

• Product Type: RV Power Converter / Charger

• AC Input Voltage: 105–130 Volt AC

• DC Output Voltage: 13.6 Volt DC

• Continuous Output Power: 725 Watts

• Maximum Output Current: 45 Amps

• Number of Outlets: 2

• Built-In Battery Charger: Yes

• Charging System: Total Charge Management System (TCMS)

• Reverse Battery Protection: Yes

• GFCI Protection: Yes

Dimensions

• Length: 8-1/4 Inch

• Width: 7-1/4 Inch

• Height: 4-1/2 Inch

Features & Benefits

Total Charge Management System (TCMS)
Fully automatic multi-stage charging ensures the optimal charging profile for the selected battery type.

45 Amp Converter Output
Provides stable DC power for RV lighting, appliances, and electrical systems.

Charge Wizard Compatibility
Supports the PD92201 Charge Wizard remote pendant for manual charger control.

Battery Mode Indicator Button
Allows easy verification of the selected battery charging mode.

Reverse Battery Protection
Prevents damage if battery leads are accidentally reversed.

Low Ground Fault Leakage
Designed to minimize electrical leakage for improved safety.

Reliable Multi-Stage Charging
Maintains batteries properly while preventing overcharging.

Additional Information

• Condition: New

• Warranty: 2 Year Limited Manufacturer Warranty

• Brand: Progressive Dynamics
