Inteli-Power 4500 Series RV Power Converter PD4590CSV – 90 Amp Replacement

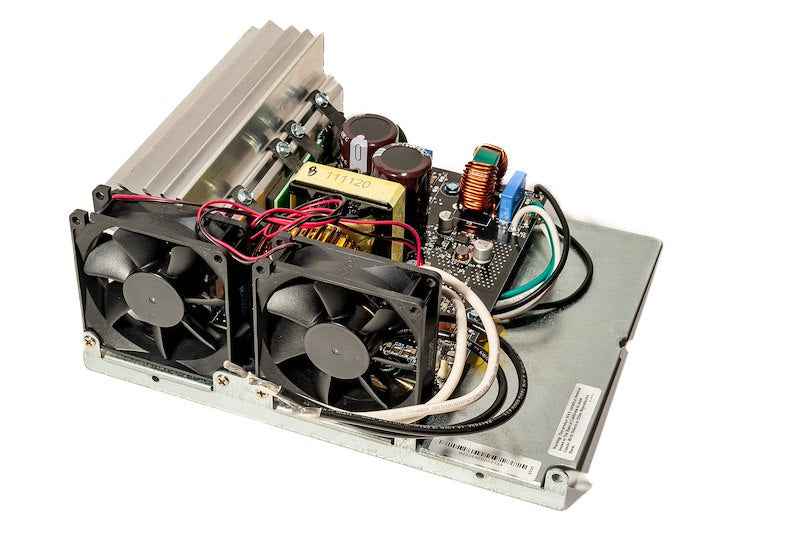

This new Progressive Dynamics Inteli-Power 4500 Series RV power converter (PD4590CSV) is a high-output replacement converter section designed to convert 105–130 volts AC into 13.6 volts DC, delivering up to 90 amps of maximum output and 1550 watts of continuous power. It provides dependable DC power for RV lighting, appliances, and electrical systems while maintaining efficient battery charging.

The Inteli-Power® 4500 Series incorporates Charge Wizard technology, allowing the converter to recharge RV batteries to approximately 90 percent capacity in as little as 3 to 6 hours. This intelligent charging system helps extend battery life while providing stable power to onboard systems.

The unit includes a battery type selector switch for lithium or lead-acid batteries, allowing compatibility with modern RV battery systems. Built-in protection features include reverse battery protection, thermal protection, high and low AC input protection, and electronic current limiting to safeguard both the converter and connected electronics.

An intelligent variable-speed cooling fan automatically adjusts airflow based on operating conditions, ensuring reliable performance and efficient cooling. LED indicators identify blown fuses, simplifying maintenance and troubleshooting. The front-access design allows easy access to circuit breakers and the wiring compartment during installation or servicing.

Key Specifications

• Manufacturer Part Number: PD4590CSV

• Brand: Progressive Dynamics

• Series: Inteli-Power 4500 Series

• Product Type: RV Power Converter / Charger Replacement Section

• AC Input Voltage: 105–130 Volt AC

• DC Output Voltage: 13.6 Volt DC

• Continuous Output Power: 1550 Watts

• Maximum Output Current: 90 Amps

• Efficiency: 80 Percent

• Number of Outlets: 1

• Built-In Battery Charger: Yes

• Fuse Protection: Yes

• Reverse Battery Protection: Yes

• Thermal Protection: Yes

Dimensions

• Length: 7-3/4 Inch

• Width: 11.85 Inch

• Height: 14-1/8 Inch

Features & Benefits

High Output 90 Amp Power Converter
Provides powerful DC output for larger RV electrical systems and high-demand appliances.

Charge Wizard Smart Charging Technology
Rapidly charges RV batteries to approximately 90 percent capacity within 3–6 hours.

Lithium and Lead-Acid Battery Compatibility
Battery type selector switch allows use with modern lithium battery systems.

Advanced Electrical Protection
Includes reverse battery protection, thermal protection, and high/low AC input protection.

Intelligent Cooling System
Variable-speed cooling fan automatically adjusts for efficient cooling and quieter operation.

LED Fuse Indicators
Allows quick identification of blown fuses for faster troubleshooting.

Front Access Service Design
Provides convenient access to circuit breakers and the wiring compartment.

Additional Information

• Condition: New

• Warranty: 2 Year Limited Manufacturer Warranty

• Brand: Progressive Dynamics
