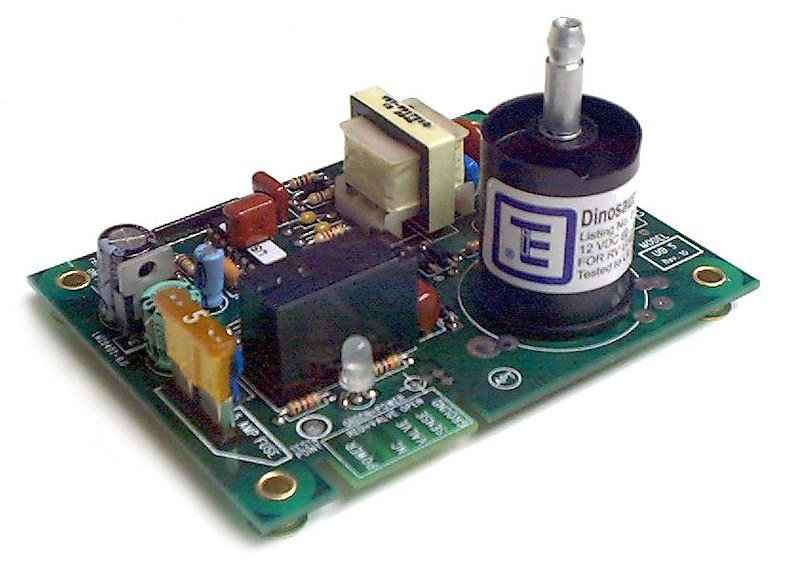

Dinosaur Ignition Control Circuit Board - UIB S POST - Post Top

The Dinosaur UIB S POST Universal Small Ignitor Board is a compact, high-performance replacement for any standard RV ignitor board, designed to work in a variety of 12V DC appliances. This board is ideal for use in furnaces, water heaters, and refrigerators across multiple popular RV brands.

Compatible With:

• Dometic and Norcold refrigerators

• Coleman, Duo-Therm, Hydroflame, and Suburban furnaces

• Atwood, Mor-Flo, and Suburban water heaters

Whether you're replacing a failed unit or upgrading for better diagnostics and reliability, this universal ignitor board provides efficient ignition and dependable safety performance.

Key Features:

• Universal fit for appliances using standard ignitor boards

• Post-style spark lead connectors for secure, easy installation

• Integrated fuse protects the board from short circuit damage

• Diagnostic LED indicators:

  • Green light = board has power

  • Red light = power sent to gas valve

• Dimensions: 4-1/4" x 3-1/4"

• Weight: 0.8 lbs.

• For 12 VDC applications only

• See-through plastic cover recommended when used in water heaters or refrigerators

• Backed by a limited 3-year manufacturer warranty

This RV ignitor control board is a trusted solution from Dinosaur Electronics, known for producing high-quality replacement boards for RV applications. Ideal for maintaining efficient performance in your RV furnace, hot water heater, or fridge ignition system.

UIB S Post ignition-board selection

The Dinosaur UIB S Post is the small 12 VDC ignition board with a post-style spark connector. It is distinguished from the conventional spark-connector UIB S and the larger UIB L/Post boards. It is intended for eligible DSI ignition-control applications in furnaces, water heaters and certain refrigerators when original electrical configuration and terminal arrangement match.

Verify the original ignition-board number, spark-post style, control voltage, pinout, mounting dimensions and flame-sense connection before ordering. Manufacturer jumper settings for instant-fire water-heater/refrigerator configurations differ from furnace settings. Do not substitute solely because the original appliance uses 12 VDC.
