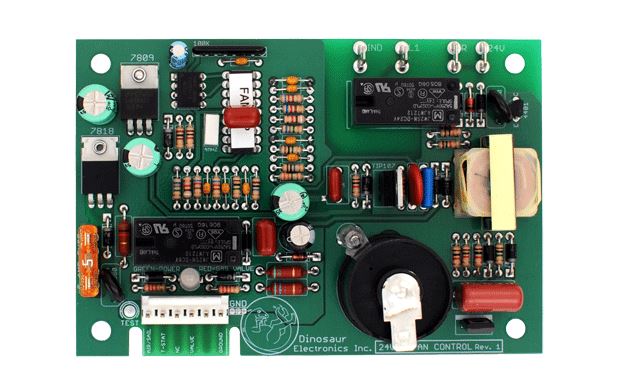

Ignition Control Circuit Board for Hydro-Flame & Suburban Furnaces – 24VAC FAN BOARD

Dinosaur Electronics 24VAC FAN BOARD RV furnace ignition control circuit board – NEW replacement solution designed for Hydro-Flame and Suburban park-model RV furnaces using 24-volt AC fan control systems. The Dinosaur Electronics 24VAC FAN BOARD restores proper ignition and fan operation while adding enhanced system protection and safety monitoring.

This new 24VAC FAN BOARD is engineered as a direct replacement for the OEM fan control board, making installation fast and straightforward. Built-in safety logic helps protect your furnace from repeated ignition faults, while bi-color LED indicators provide clear diagnostic feedback during operation.

Designed to improve reliability and extend furnace service life, this board is backed by Dinosaur Electronics’ limited 3-year manufacturer warranty.

Key Specifications

• Manufacturer Part Number: 24VAC FAN BOARD

• Product Type: Ignition and fan control circuit board

• Operating Voltage: 24 Volt AC

• Compatibility: Hydro-Flame and Suburban park-model RV furnaces

• Installation Type: Direct replacement for OEM fan control board

• Diagnostics: Bi-color LED indicators

• Protective Cover: Included

• Warranty: Limited 3-Year Warranty

Features & Benefits

• 24-volt AC operation designed specifically for park-model furnace systems

• Direct replacement design allows fast, drop-in installation

• Fuse-protected circuitry helps prevent damage to furnace components

• Automatic fan shutoff turns the fan off approximately 90 seconds after the third ignition attempt if no flame is detected

• Automatic retry protection waits one hour before retrying ignition after lockout (thermostat reset required)

• Bi-color LED indicators provide quick system diagnostics

  • Green LED indicates power to the AIR terminal

  • Red LED indicates power to the valve terminal

• Protective cover included for added durability and safety

Product Fitment & Application

The Dinosaur Electronics 24VAC FAN BOARD ignition control circuit board is designed for use with:

• Hydro-Flame RV furnaces

• Suburban RV furnaces

• Park-model 24-volt AC furnace applications

Please verify your existing control board and furnace model before ordering to ensure compatibility.
