Description

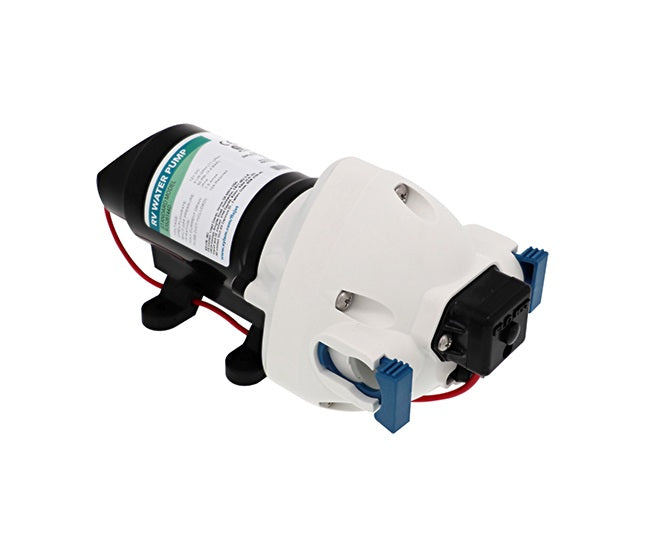

The Flojet R3526144D fresh water pump is a self-priming 12-volt DC water pump designed for RV potable water systems. It delivers a flow rate of 2.9 gallons per minute at a 50 PSI pressure rating and features an integrated sealed pressure switch for automatic on-demand operation.
An internal bypass helps provide quieter, smoother operation while reducing unwanted pump cycling. The pump incorporates a Santoprene diaphragm, thermal overload protection, backflow prevention and vibration-dampening mounting feet for reliable operation in RV fresh water applications.
Features
- 12-volt DC RV fresh water pump
- 2.9 GPM flow rate
- 50 PSI pressure rating
- Self-priming design for versatile installation
- CSA certified for potable water
- Integrated sealed pressure switch for on-demand operation
- Internal bypass helps reduce pump cycling and noise
- Co-molded diaphragm technology for durability
- Santoprene diaphragm
- Can run dry without damage
- Built-in thermal overload protection
- Built-in backflow prevention valve

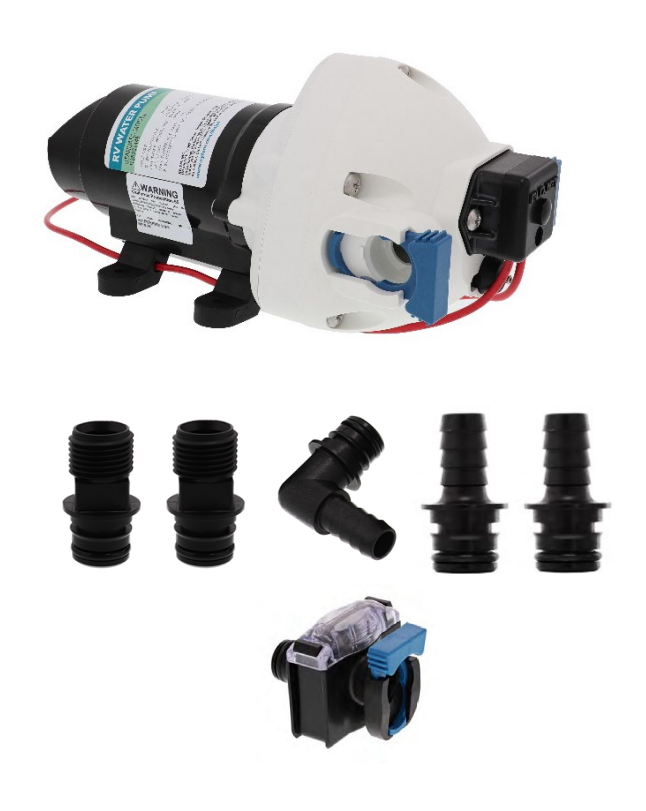

- Quick-connect ports for easier installation, servicing and maintenance
- Vibration-dampening rubber mounting feet
- Designed for quiet, smooth operation
Specifications
- Brand: Flojet
- Manufacturer Part Number: R3526144D
- Product Type: Fresh Water Pump
- Pump Type: Self-Priming
- Voltage: 12V DC
- Flow Rate: 2.9 GPM
- Pressure Rating: 50 PSI

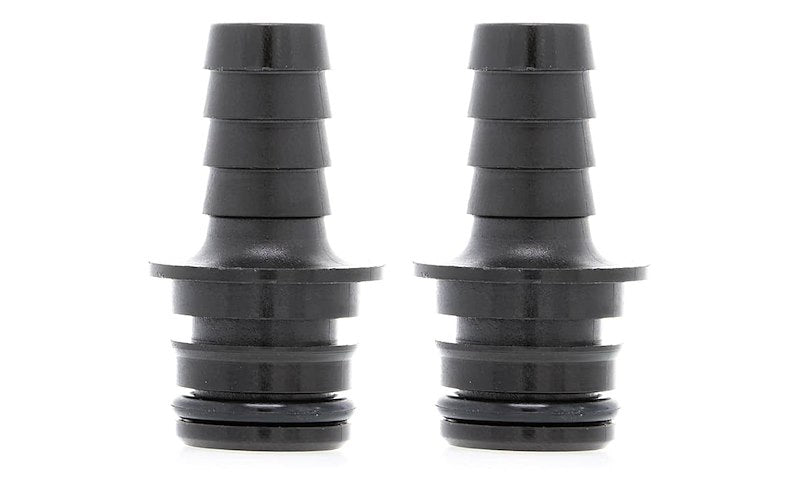

- Inlet Port: 1/2" Hose Barb
- Outlet Port: 1/2" Hose Barb
- Diaphragm Material: Santoprene
- Pressure Switch: Yes
- Thermal Overload Protection: Yes
- Backflow Prevention Valve: Yes
- Internal Bypass: Yes
- Run-Dry Capability: Yes
- Length: 9.1"
- Width: 4.2"
- Height: 4.2"
- Condition: Brand New
Applications

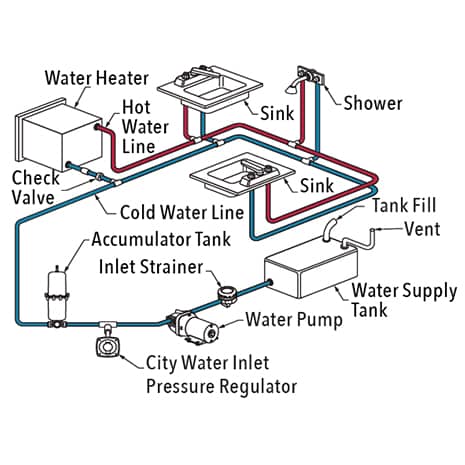

Designed for RV fresh water systems requiring a 12V DC self-priming pump with a 2.9 GPM flow rate and 50 PSI pressure rating.
The pump is CSA certified for potable water.
Important
Verify your RV's electrical requirements, plumbing connections, available installation space, required flow rate and pressure before ordering.
The supplier attributes specify 1/2-inch hose barb inlet and outlet ports, while the general product description also references quick-connect ports. This listing retains the supplier's specific 1/2-inch hose barb specification rather than assuming a different connection type.
Warranty
No supplier warranty is provided for this product.
Manufacturer dimensions and installation check

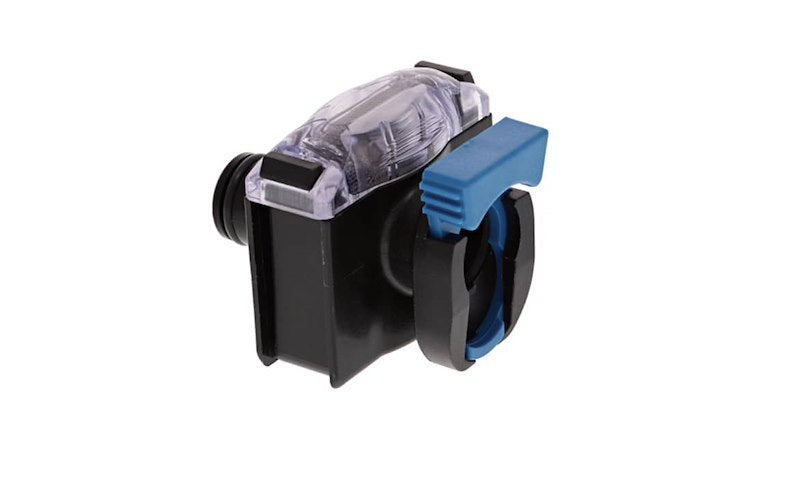

Flojet rates model R3526144D as a standard 12V RV pump, nominally 3 GPM with 50 PSI pressure shutoff (the supplier lists approximately 2.9 GPM). Xylem lists an approximate 9.1-inch overall length, 4.2-inch width and 4.2-inch height, with 1/2-inch hose-barb and 1/2-inch-14 NPSM fitting options and an inline 40-mesh strainer. Confirm the original pump model, mounting centres, connection fittings and 15A recommended fuse before replacing a pump.
