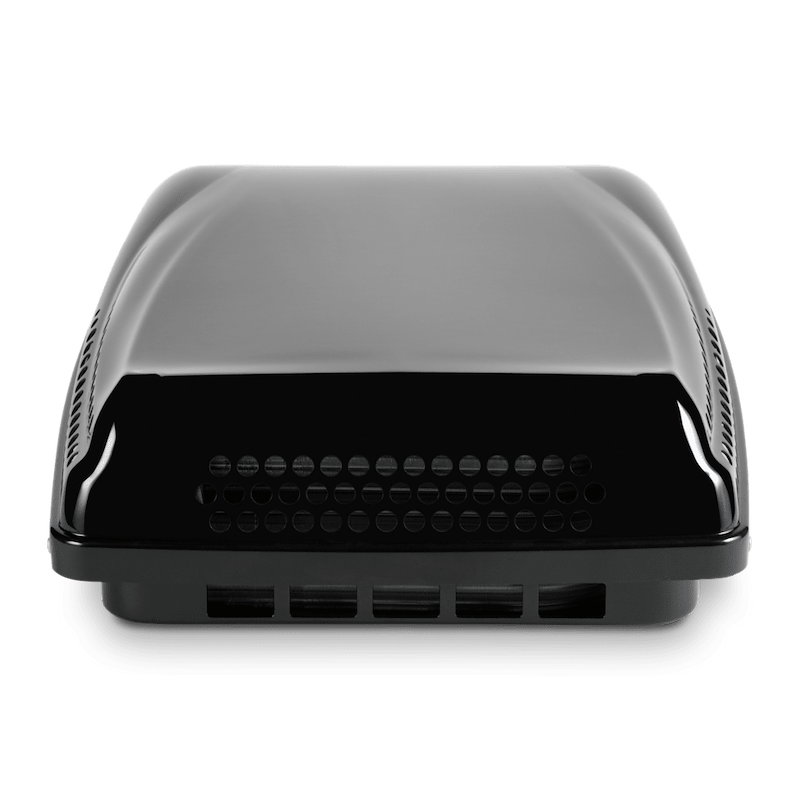

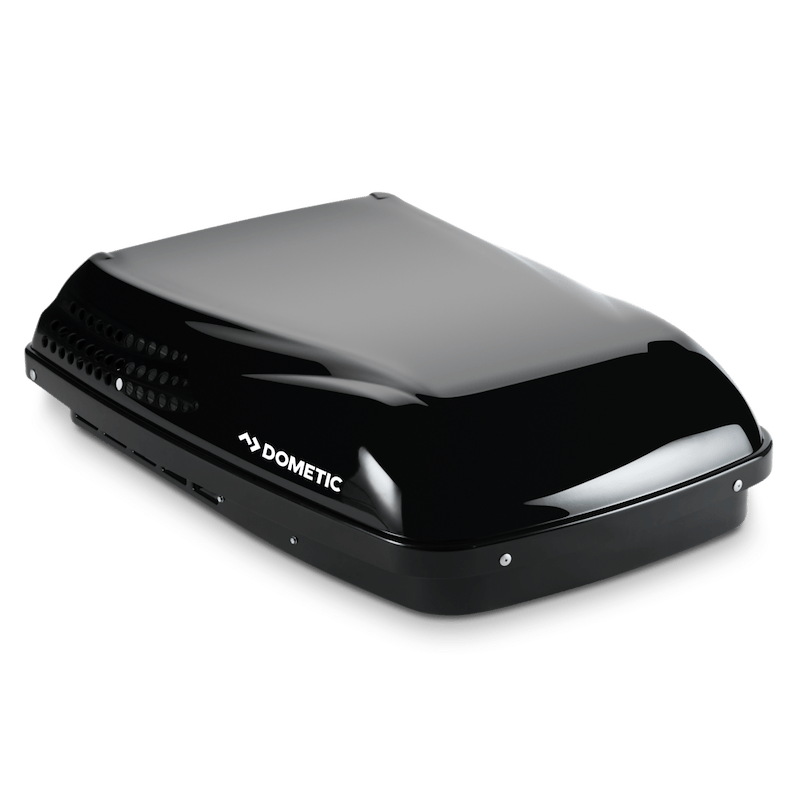

Dometic Penguin II 15000 BTU RV Air Conditioner with Heat Pump Low Profile 651916HXX1J0-01

Enjoy efficient, all-season climate control in your RV with the Dometic Penguin II 15000 BTU rooftop air conditioner with heat pump. This sleek, low-profile unit in black fits standard 14" x 14" vent openings and is compatible with ducted and non-ducted systems. With its integrated single zone control board, it pairs with the CT Single Zone Wall Thermostat (sold separately) for reliable temperature management.

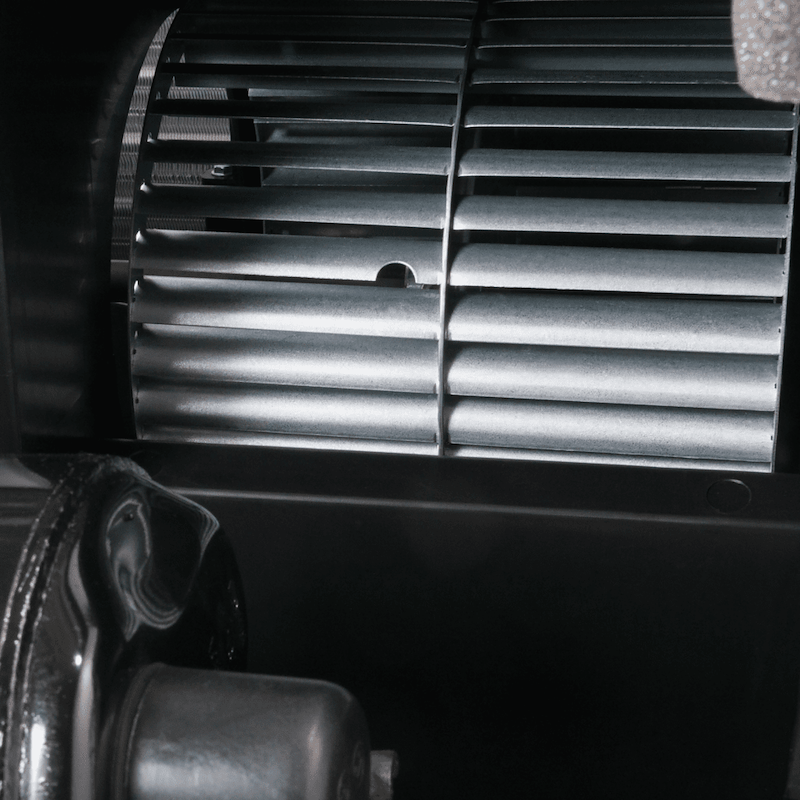

Designed with performance and style in mind, this AC features an aerodynamic shroud that reduces drag while on the road. The high-efficiency fan and motor provide 265 CFM airflow using R410A refrigerant. Its reinforced base and compact footprint ensure long-lasting durability, making it ideal for RVs and marine use.

Note: Thermostat and ceiling assembly sold separately.

Specifications:

• Cooling/Heating Capacity: 15,000 BTU with built-in heat pump

• Mounting Opening: Fits 14" x 14" standard roof vent

• System Type: Ducted or non-ducted

• Zone Control: Single zone (CT Thermostat required)

• Color: Black

• Voltage: 120V

• Compressor Draw: Varies by exact 6518/6519-series configuration; check factory nameplate

• Airflow: 265 CFM

• Refrigerant: Eco-friendly R410A

• Dimensions: 29" D x 11-1/4" H x 40-1/2" W

• Weight: 99 lbs

• Marine Approved: Yes

• Estimated Install Time: 1.5 hours

• Condensate Pump: Not included

• Remote Control: Not included

Key Features:

• Sleek low-profile design reduces wind drag

• Integrated heat pump for versatile climate control

• Compatible with CT Single Zone Thermostat (sold separately)

• R410A refrigerant for energy-efficient cooling

• Rugged, rib-reinforced base pan for extended durability

• Ships across Canada

Manufacturer model and installation compatibility

Exact model: Dometic Penguin II 651916HXX1J0-01, Black rooftop heat pump, high-capacity nominal 15,000 BTU cooling. Dometic identifies the 651916 high-capacity heat-pump family with an integrated single-zone control system (CT/LCD); it is not the same as the 651816 CCC 2 multi-zone configuration. A compatible thermostat, interior return-air grille or air-distribution box and the proper wiring arrangement are required; verify the full rooftop model and the currently fitted control hardware before ordering.

Roof and electrical requirements: The Dometic North American installation instructions specify a 14-1/4" x 14-1/4" roof opening (plus or minus 1/8"), 120V AC, 60Hz single-phase power, and 20A time-delay circuit protection for the referenced family. The quoted compressor amperage is configuration-dependent; use the appliance's full nameplate rating and current installation instructions, not a fixed 12.5A claim. Confirm roof support, duct layout, ADB, ceiling thickness, wire routing and thermostat compatibility before installation.
