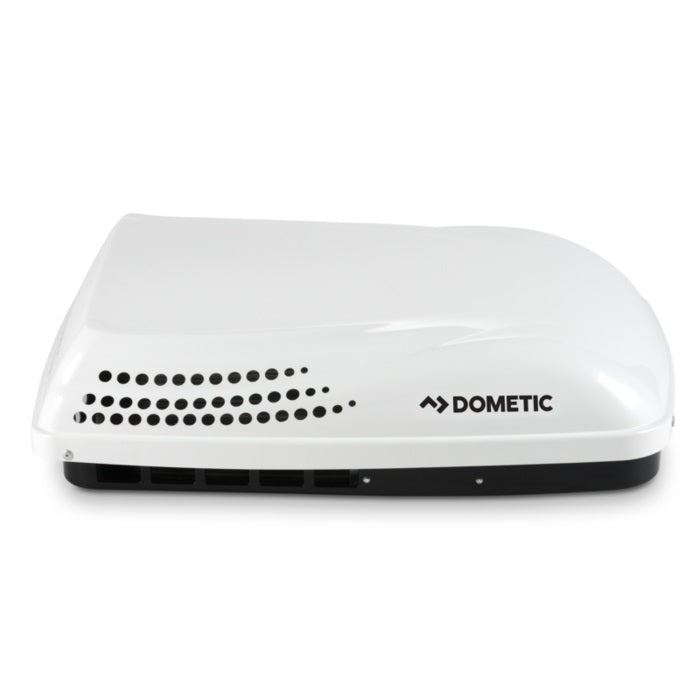

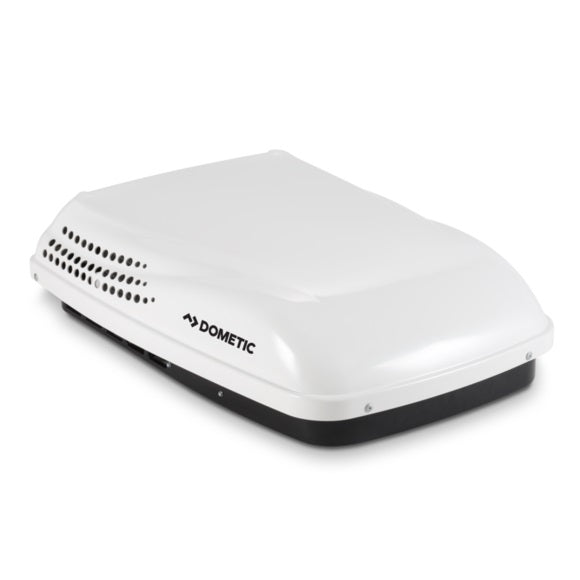

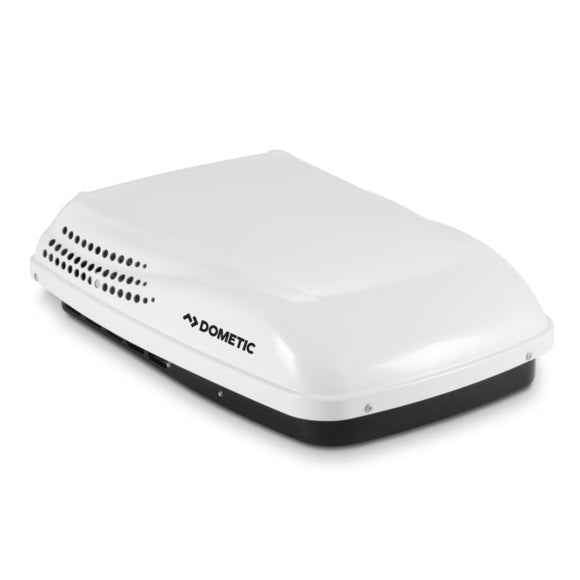

Dometic Penguin II 15000 BTU Low Profile RV Air Conditioner with Heat Pump –651916HXX1C0-01

Upgrade your RV comfort with the Dometic Penguin II 15000 BTU rooftop air conditioner in white, designed for 14" x 14" vent openings and compatible with ducted or non-ducted systems. This unit combines powerful cooling and efficient heating with a built-in single zone electronic board, offering precise temperature control when paired with the CT Single Zone Wall Thermostat (sold separately).

The ultra-low profile (11-1/4" height) and aerodynamic shroud minimize wind resistance while enhancing the modern look of your RV. Its 265 CFM airflow rate, 120V operation, and eco-friendly R410A refrigerant ensure optimal performance while maintaining energy efficiency. Weighing only 99 lbs, it’s built tough with a reinforced base pan to withstand rugged travel conditions.

Note: Thermostat and ceiling assembly required for full operation, sold separately.

Specifications:

• BTU Rating: 15,000 BTU with heat pump

• Mount Size: 14" x 14" vent opening

• System Compatibility: Ducted or non-ducted

• Zone Control: Single zone (CT compatible)

• Voltage: 120V

• Compressor Draw: Varies by exact 6518/6519-series configuration; check factory nameplate

• Airflow: 265 CFM

• Refrigerant: R410A

• Dimensions: 29" D x 11-1/4" H x 40-1/2" W

• Weight: 99 lbs

• Color: White

• Condensate Pump: Not included

• Marine Use: Yes

• Install Time: Approx. 1.5 hours

Key Features:

• Integrated heat pump for both heating and cooling

• Sleek, aerodynamic shroud reduces drag

• Durable and compact design with reinforced base

• Efficient R410A refrigerant for eco-conscious performance

• Compatible with single-zone CT thermostat (sold separately)

• Canada-wide shipping available

Manufacturer model and installation compatibility

Exact model: Dometic Penguin II 651916HXX1C0-01, Polar White rooftop heat pump, high-capacity nominal 15,000 BTU cooling. Dometic identifies the 651916 high-capacity heat-pump family with an integrated single-zone control system (CT/LCD); it is not the same as the 651816 CCC 2 multi-zone configuration. A compatible thermostat, interior return-air grille or air-distribution box and the proper wiring arrangement are required; verify the full rooftop model and the currently fitted control hardware before ordering.

Roof and electrical requirements: The Dometic North American installation instructions specify a 14-1/4" x 14-1/4" roof opening (plus or minus 1/8"), 120V AC, 60Hz single-phase power, and 20A time-delay circuit protection for the referenced family. The quoted compressor amperage is configuration-dependent; use the appliance's full nameplate rating and current installation instructions, not a fixed 12.5A claim. Confirm roof support, duct layout, ADB, ceiling thickness, wire routing and thermostat compatibility before installation.
