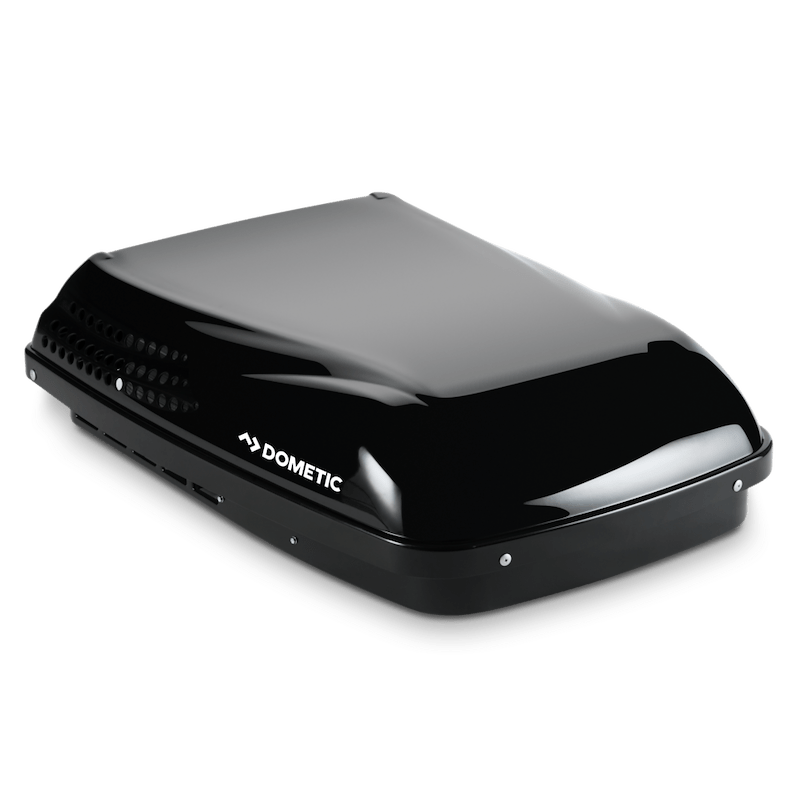

Dometic Penguin II 15000 BTU Low Profile RV Air Conditioner with Heat Pump – 651816HXX1J0-01

Stay cool and comfortable on the road with the Dometic Penguin II 15,000 BTU rooftop air conditioner, engineered for high-capacity performance in a sleek, aerodynamic design. Built for RVs with 14-1/4" x 14-1/4" roof openings, this low-profile unit fits both ducted and non-ducted systems and includes a built-in multi-zone Comfort Control Center II (CCCII) electronic board. The integrated heat pump adds heating capability, giving you year-round climate control in a compact and rugged build.

Designed for efficiency, this AC runs on 120V with a configuration-specific compressor draw and delivers 265 CFM airflow using environmentally friendly R410A refrigerant. Despite weighing only 99 lbs, the Penguin II boasts a rib-reinforced base pan for enhanced durability in demanding RV environments. Its stylish black finish and 11-1/4" low-profile height reduce drag while enhancing your RV’s exterior look.

Note: Requires CCCII wall thermostat and ceiling assembly (sold separately).

Specifications:

• Cooling/Heating Capacity: 15,000 BTU (with heat pump)

• Mount Size: 14-1/4" x 14-1/4" roof openings

• System Type: Ducted or non-ducted

• Zone Control: Multi-zone (CCCII compatible)

• Color: Black

• Voltage: 120V

• Amperage: Varies by exact H-series model; 20 A time-delay circuit protection specified

• Air Flow: 265 CFM

• Refrigerant: R410A

• Dimensions: 29" D x 11-1/4" H x 40-1/2" W

• Weight: 99 lbs

• Condensate Pump: Not included

• Remote Control: Not included

• Marine Use: Yes

• Install Time: Approx. 1.5 hours

Key Features:

• Built-in heat pump for efficient cooling and heating

• Multi-zone control for custom climate zones (CCCII compatible)

• Low-profile design for better aerodynamics and aesthetics

• Durable construction with rib-reinforced base

• Eco-friendly R410A refrigerant

• Fast, Canada-wide shipping available

Model-specific rooftop and control compatibility

Dometic 651816HXX1J0-01 is a high-capacity Penguin II rooftop heat-pump unit supplied in black with Comfort Control Center II (CCC 2) multi-zone electronic controls. Dometic groups 651816-series heat pumps with CCC 2 controllers in its North American installation instructions. This rooftop unit requires a compatible indoor return-air or air-distribution assembly and a matching CCC 2 wall thermostat; these are separate from the rooftop unit.

Installation check: Dometic specifies a 14-1/4" x 14-1/4" square roof opening (plus or minus 1/8") and 120V AC, 60Hz supply for the referenced 651816 family. A 20A time-delay protective device is specified. Compressor running amperage differs among 651816H configurations, so verify the complete model and the appliance nameplate rather than relying on a single rating. Confirm the existing control-board generation, ducting, return-air arrangement and roof clearance before ordering.
