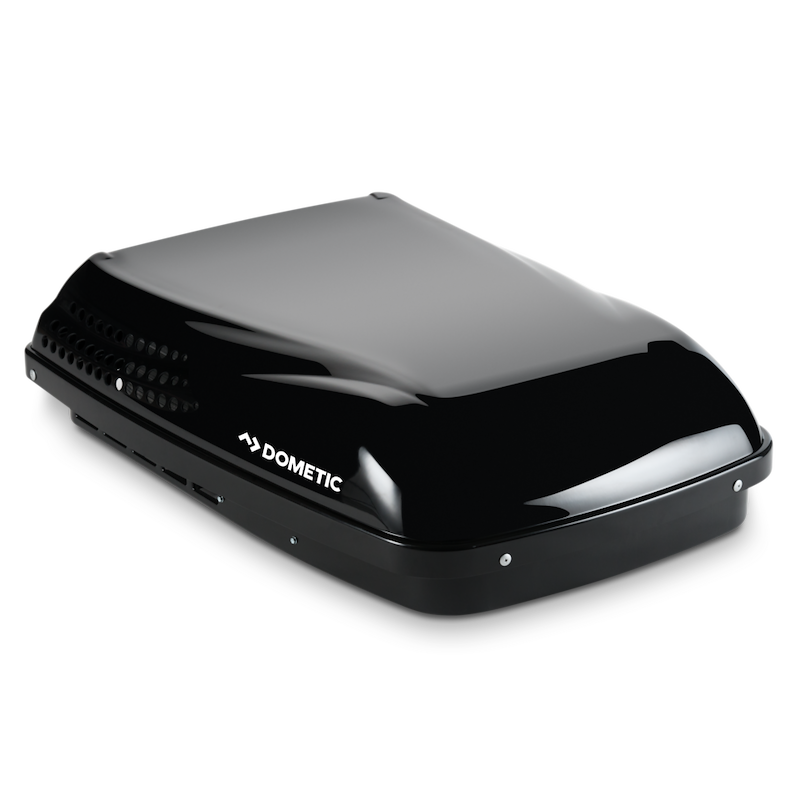

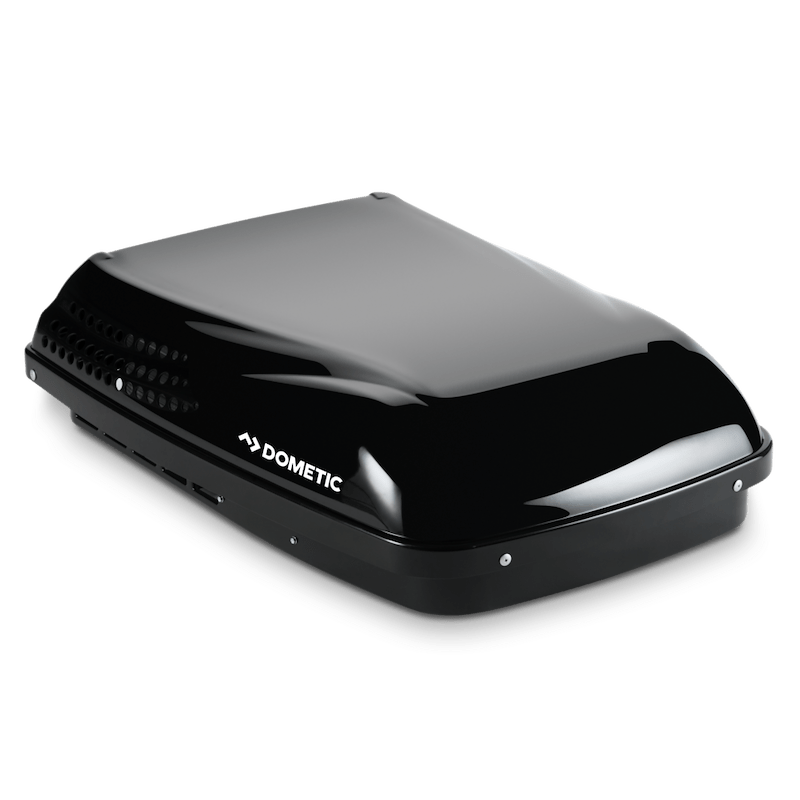

Dometic Penguin II 15000 BTU Low Profile RV Air Conditioner – 641916AXX1J0

The Dometic Penguin II 15,000 BTU rooftop air conditioner offers powerful, efficient cooling in a sleek, low-profile design that’s ideal for RVs and trailers. Finished in stylish black, this unit fits standard 14" x 14" vent openings and is compatible with both ducted and non-ducted systems.

This model features a built-in single zone electronic control board and is designed for use with the CT Single Zone Wall Thermostat and ceiling assembly (sold separately). Although it does not include a heat pump or condensate pump, the Penguin II delivers dependable AC performance with a high-efficiency compressor ratings that depend on the exact factory configuration and a strong airflow of 265 CFM.

Engineered for durability and streamlined for aerodynamics, the Penguin II features a reinforced base pan and modern shroud design to reduce wind resistance on the road. It uses eco-friendly R410A refrigerant, making it an environmentally conscious choice for long-lasting comfort.

Specifications:

• Cooling Capacity: 15,000 BTU

• Function: Air Conditioner Only

• Mounting Size: Fits 14" x 14" vent openings

• System Type: Ducted or Non-Ducted

• Voltage: 120V

• Amp Draw: Check the full model nameplate; 641916 submodels differ (Compressor)

• Air Flow: 265 CFM

• Height: 11-1/4" (Low Profile)

• Dimensions: 29" D x 11-1/4" H x 40-1/2" W

• Weight: 99 lbs

• Color: Black

• Refrigerant: R410A

• Thermostat & Ceiling Assembly Required (Sold Separately)

• No Heat Pump or Condensate Pump

• Marine Compatible: Yes

Key Features:

• Low-profile aerodynamic design for reduced drag

• High-performance fan and motor for strong cooling output

• Durable rib-reinforced base pan for rugged environments

• Uses eco-friendly refrigerant

• Built-in single zone control compatibility

• Sleek black finish matches modern RV aesthetics

• Backed by a 2-year limited warranty

Ships across Canada.

Exact model, rooftop controls and installation

Dometic 641916AXX1J0 is a black Penguin II high-capacity cooling-only rooftop unit in the 641916 series. Dometic lists this series with an integrated LCD single-zone control board, unlike the 641816 series with CCC 2 controls. Match the compatible CT/LCD wall control and indoor return-air or ceiling assembly to the complete model number; an air conditioner from a different controller family is not automatically interchangeable.

Electrical and roof checks: The Dometic installation table specifies 120V AC, 60Hz supply and 20A time-delay circuit protection. Compressor rated-load current in the 641916 family differs by configuration (12.3A or 13.4A), so confirm the exact nameplate rather than using a fixed 12.5A figure. The documented roof opening is 14-1/4" x 14-1/4" (plus/minus 1/8"). Verify ducting, opening support, wiring and clearances before ordering.
